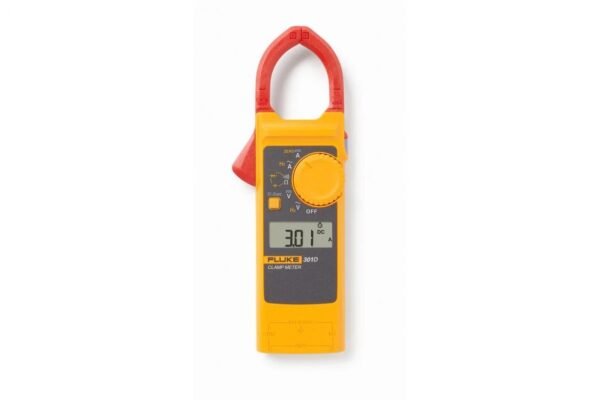

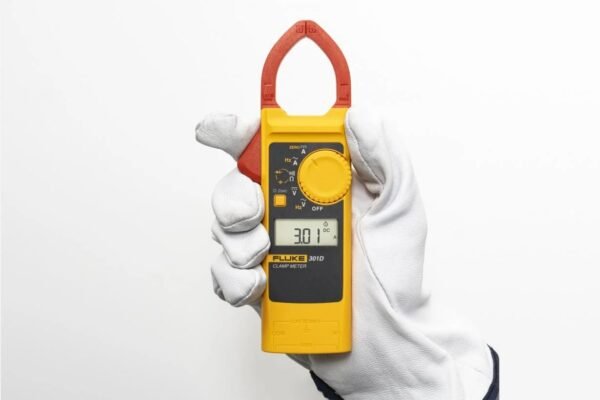

FLUKE 301D AC/DC CLAMP METER

AC Current (45 to 400 Hz)

Range

60.00 A

600.0 A

Resolution

0.01 A

0.1 A

Accuracy

2% + 10

2% + 5

DC Current

Range

60.00 A

600.0 A

Resolution

0.01 A

0.1 A

Accuracy

2% + 10

2% + 5

AC Voltage (45 to 400 Hz)

Range

600.0 V

Resolution

0.1 V

Accuracy

1.5% + 5

DC Voltage

Range

600.0 V

Resolution

0.1 V

Accuracy

1% + 5

Resistance

Range

600.0 Ω

6.000 kΩ

60.00 kΩ

Accuracy

1% + 5

Voltage Frequency

Range

9.999 Hz

99.99 Hz

999.9 Hz

9.999 kHz

99.99 kHz

Accuracy

0.1% + 3

Current Frequency

Range

45.0-400.0 Hz

Accuracy

0.1% + 3

Capacitance

Range

9.999 uF

99.99 uF 999.9 uF

Accuracy

2% + 5

5% + 5

Diode

Range

3.000 V

Accuracy

10%

T-rms Value

–

Continuity

●

Hold

●

Backlight

●

Safety rating

CAT III 300 V

Weight

154 g

Size

190 mm x 52 mm x 16 mm

Jaw Opening

34 mm

Clamp Arm Size

10 mm X 10 mm

Battery

(2) AAA batteries

Warranty

1 year

Maximum Voltage between any Terminal and Earth Ground

300 V

Maximum Differential Voltage between V/Ω and COM Terminals

600 V

Display (LCD)

6000 counts, updates 3 times per second

Battery Type

2 AAA, IEC LR03

Battery Life

500 hours minimum

Auto Power Off Time

20 minutes

Temperature

Operating: -10 °C to 50 °C；

Storage: -30 °C to 60 °C

Relative Humidity

Operating Humidity: Non condensing (<10°C); ≤ 90 % RH at 10 °C to 30 °C; ≤ 75 % RH at 30 °C to 40 °C; ≤ 45 % RH at 40 °C to 50 °C;

Altitude

Operating: 2000 m; Storage: 12000 m

Temperature Coefficient

0.1 x (specified accuracy) /°C (<18 °C or >28 °C)

Dimensions (H x W x L)

190 mm x 52 mm x 16 mm

Weight

132 g (301D/E 154 g)

Jaw Opening

34 mm

Ingress Protection Rating

IP30

Safety

IEC 61010–1, IEC61010-2-032 CAT III 300 V, Pollution Degree 2

Electromagnetic Environment

IEC 61326–1: Portable
