FLUKE 301E SERIES AC/DC CLAMP METER

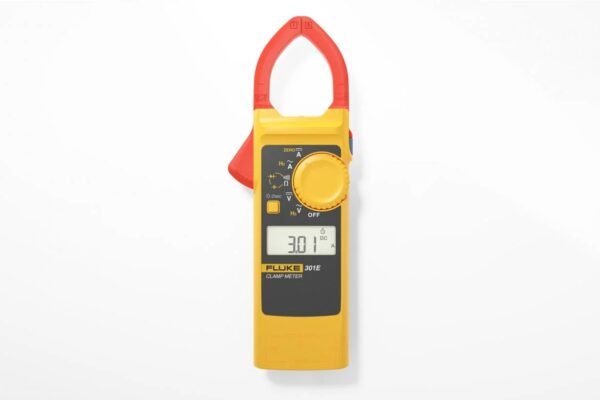

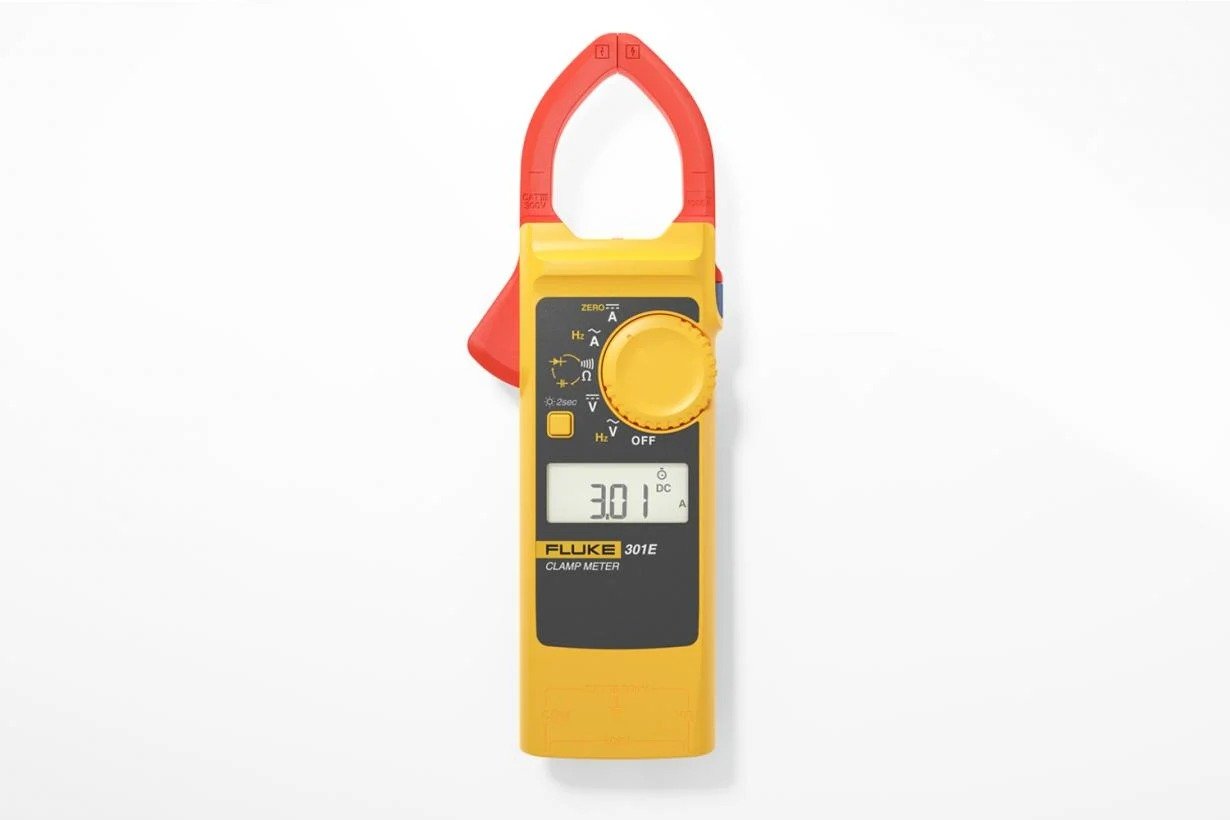

Fluke 301E Series AC/DC Clamp Meter

If you’re looking for a lightweight yet powerful clamp meter, the Fluke 301E Series is an excellent choice. First of all, its compact 154g body and 16mm thickness make it incredibly portable, so you can easily carry it in your pocket. Not only that, but its ultra-slim 10mm jaw also allows smooth access to tightly packed wires, ensuring effortless measurements in tight spaces.

What’s more, this clamp meter delivers high-performance accuracy with 1000A AC/DC current measurement (E model) and a 0.01A resolution for precise readings. In addition to current testing, it efficiently measures voltage, resistance, and continuity, making it a versatile tool for electricians. Furthermore, it supports frequency testing for both current and voltage, as well as capacitance and diode checks, providing a complete diagnostic solution.

To make things even better, the Fluke 301E comes with a built-in backlight, ensuring clear visibility in dimly lit environments. As a result, you can work confidently in any condition. Whether you’re performing quick checks or detailed diagnostics, this clamp meter combines portability, precision, and reliability in one sleek device. For these reasons, the Fluke 301E is a must-have for professionals who demand efficiency and accuracy.

Upgrade your toolkit today with the Fluke 301E Series AC/DC Clamp Meter—where advanced functionality meets unmatched convenience!

  • The body weighs only 154g and is 16mm thick, which is light and portable and can be put into a pocket

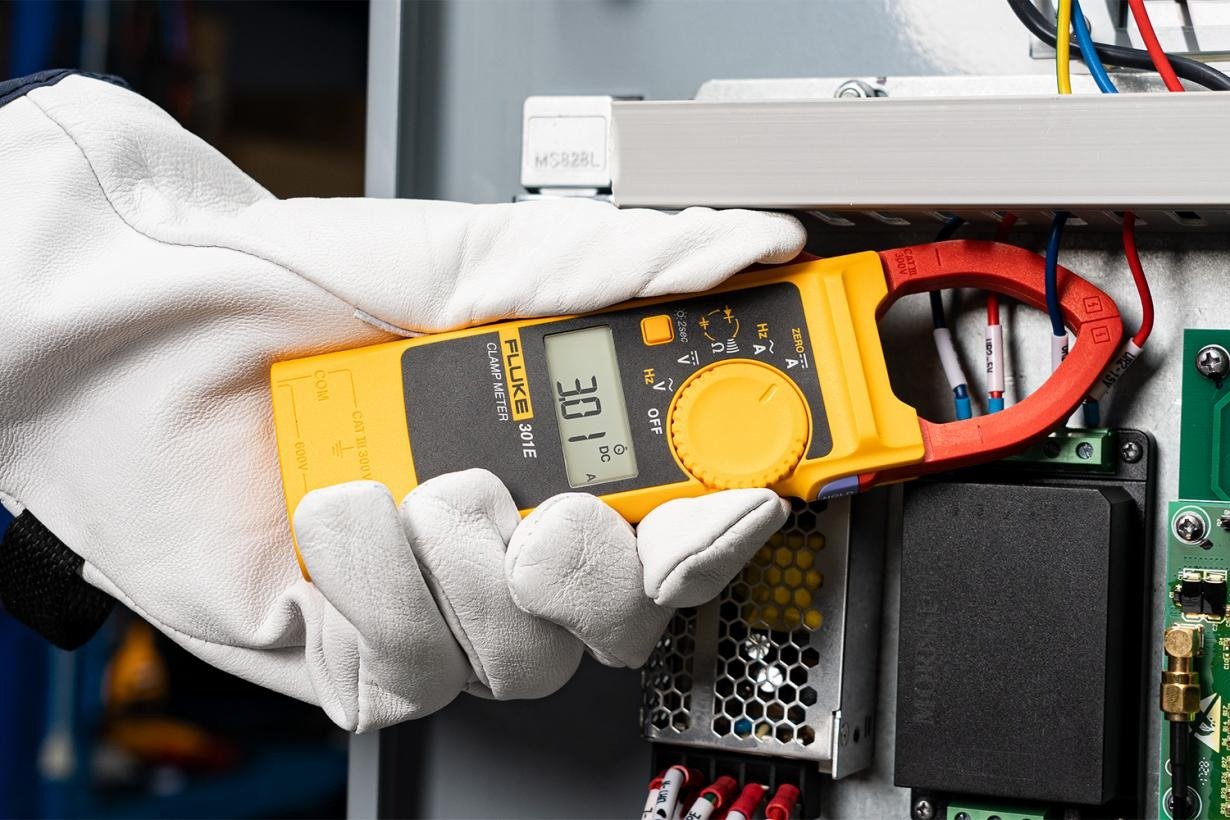

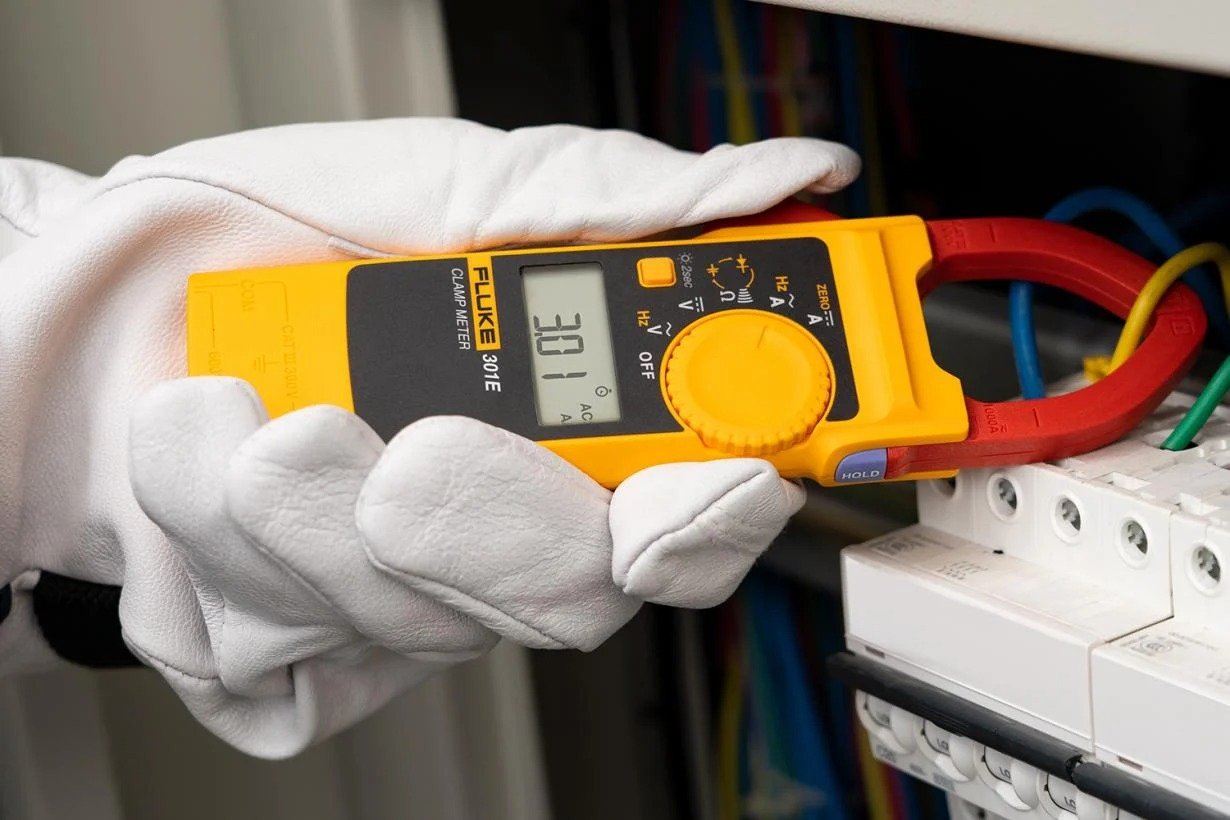

  • The slim and thin jaw of only 10mm can easily fit into tightly packed wires
  • 1000A AC/DC (E model), 0.01A high resolution

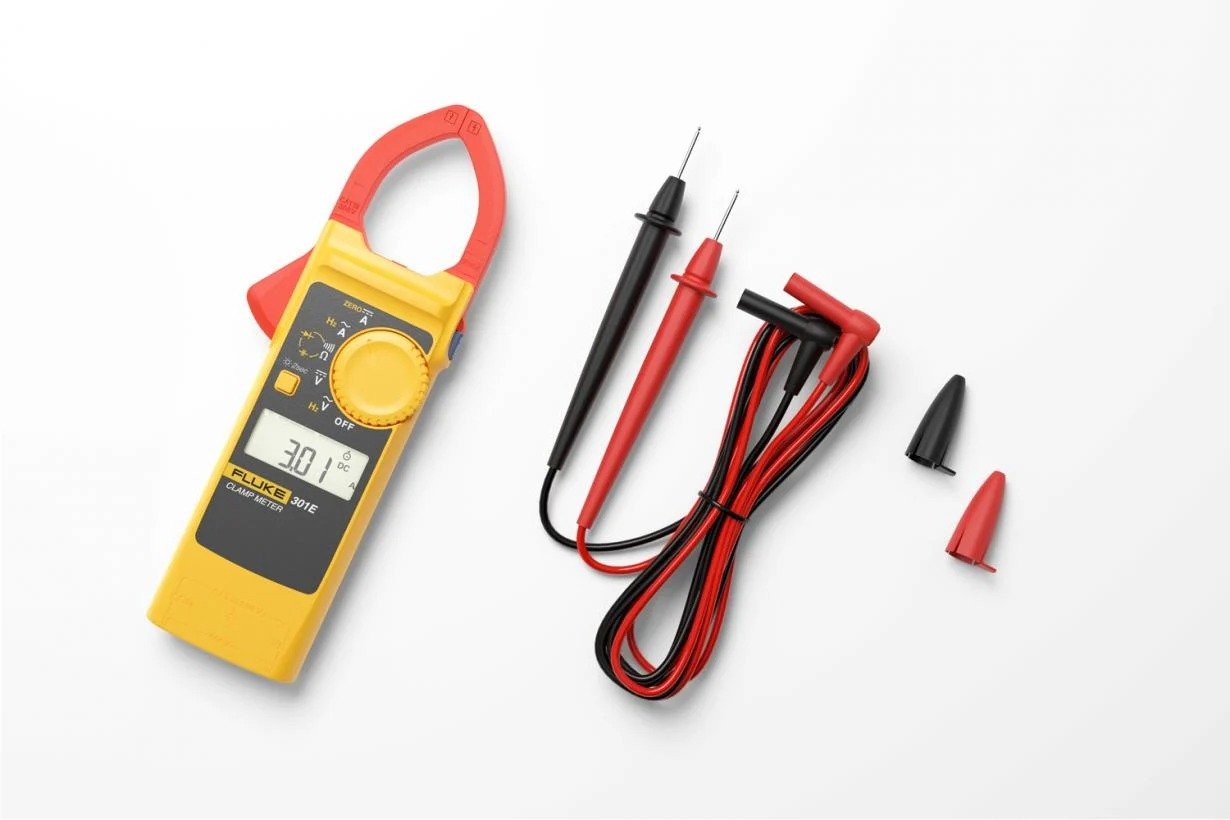

  • Tests voltage, resistance and continuity
  • Tests current frequency and voltage frequency
  • Tests capacitance and diodes
  • Backlight



Specifications Of Fluke 301E Series AC/DC Clamp Meter

Models

301D

301E

AC Current (45 to 400 Hz)

Range 60.00 A 600.0 A 60.00 A 600.0 A 1000 A
Resolution 0.01 A 0.1 A 0.01 A 0.1 A 1 A
Accuracy 2% + 10 2% + 5 2% + 10 2% + 5 2% + 5

DC Current

Range 60.00 A 600.0 A 60.00 A 600.0 A 1000 A
Resolution 0.01 A 0.1 A 0.01 A 0.1 A 1 A
Accuracy 2% + 10 2% + 5 2% + 10 2% + 5 2% + 5

AC Voltage (45 to 400 Hz)

Range 600.0 V 600.0 V
Resolution 0.1 V 0.1 V
Accuracy 1.5% + 5 1.5% + 5

DC Voltage

Range 600.0 V 600.0 V
Resolution 0.1 V 0.1 V
Accuracy 1% + 5 1% + 5

Resistance

Range 600.0 Ω
6.000 kΩ
60.00 kΩ
600.0 Ω
6.000 kΩ
60.00 kΩ
Accuracy 1% + 5 1% + 5

Voltage Frequency

Range 9.999 Hz
99.99 Hz
999.9 Hz
9.999 kHz
99.99 kHz
9.999 Hz
99.99 Hz
999.9 Hz
9.999 kHz
99.99 kHz
Accuracy 0.1% + 3 0.1% + 3

Current Frequency

Range 45.0-400.0 Hz 45.0-400.0 Hz
Accuracy 0.1% + 3 0.1% + 3

Capacitance

Range 9.999 uF 99.99 uF 999.9 uF 9.999 uF 99.99 uF 999.9 uF
Accuracy 2% + 5 5% + 5 2% + 5 5% + 5

Diode

Range 3.000 V 3.000 V
Accuracy 10% 10%

T-rms Value

Continuity

Hold

Backlight

Safety rating

CAT III 300 V CAT III 300 V

Weight

154 g 154 g

Size

190 mm x 52 mm x 16 mm 190 mm x 52 mm x 16 mm

Jaw Opening

34 mm 34 mm

Clamp Arm Size

10 mm X 10 mm 10 mm X 10 mm

Battery

(2) AAA batteries (2) AAA batteries

Warranty

1 year 1 year

General Specifications

Maximum Voltage between any Terminal and Earth Ground

300 V

Maximum Differential Voltage between V/Ω and COM Terminals

600 V

Display (LCD)

6000 counts, updates 3 times per second

Battery Type

2 AAA, IEC LR03

Battery Life

500 hours minimum

Auto Power Off Time

20 minutes

Temperature

Operating: -10 °C to 50 °C;
Storage: -30 °C to 60 °C

Relative Humidity

Operating Humidity: Non condensing (<10°C); ≤ 90 % RH at 10 °C to 30 °C; ≤ 75 % RH at 30 °C to 40 °C; ≤ 45 % RH at 40 °C to 50 °C;

Altitude

Operating: 2000 m; Storage: 12000 m

Temperature Coefficient

0.1 x (specified accuracy) /°C (<18 °C or >28 °C)

Dimensions (H x W x L)

190 mm x 52 mm x 16 mm

Weight

132 g (301D/E 154 g)

Jaw Opening

34 mm

Ingress Protection Rating

IP30

Safety

IEC 61010–1, IEC61010-2-032 CAT III 300 V, Pollution Degree 2

Electromagnetic Environment

IEC 61326–1: Portable
