FLUKE 317 CLAMP METERS

Name: KL Amazon - Kyoritsu Fluke Uni-T Multimeter Supplier
Address: 553, Jalan Kwan Tung, Kampung Sungai Chua, Kajang, 43000, MY
Telephone: +60163776793

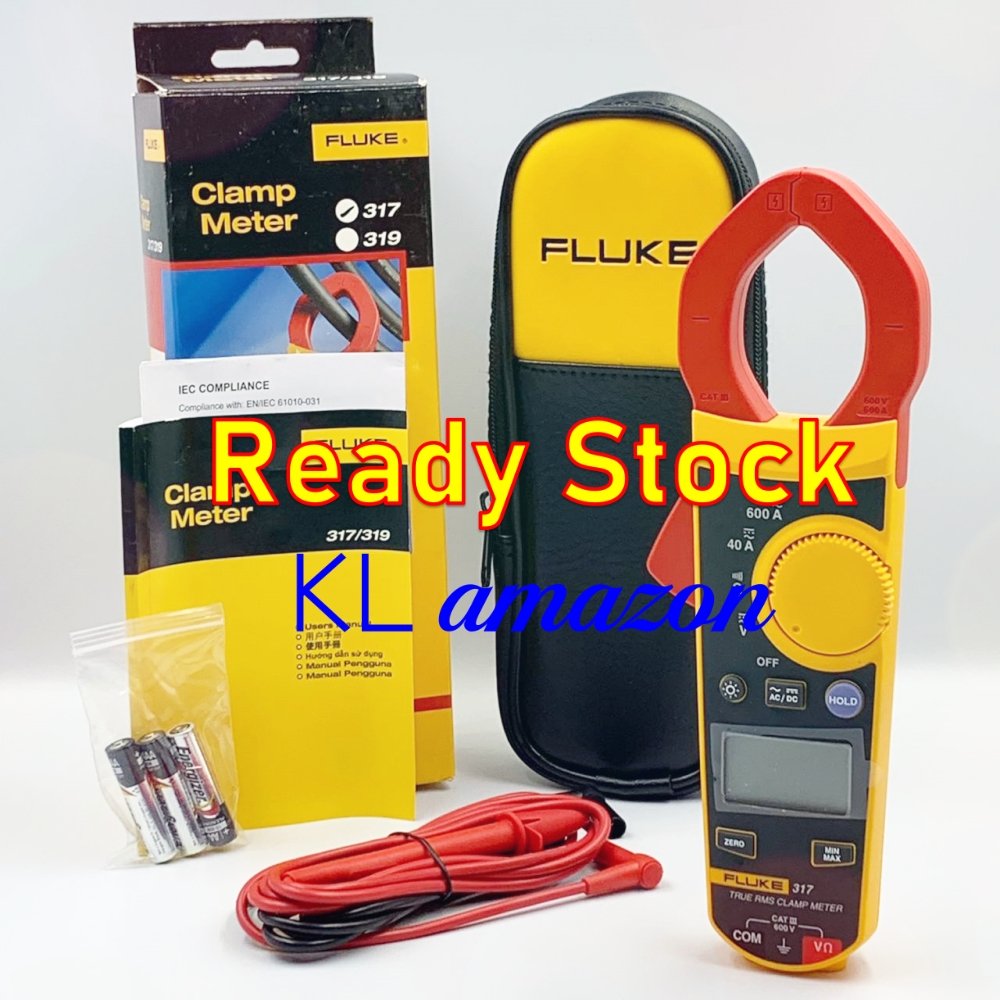

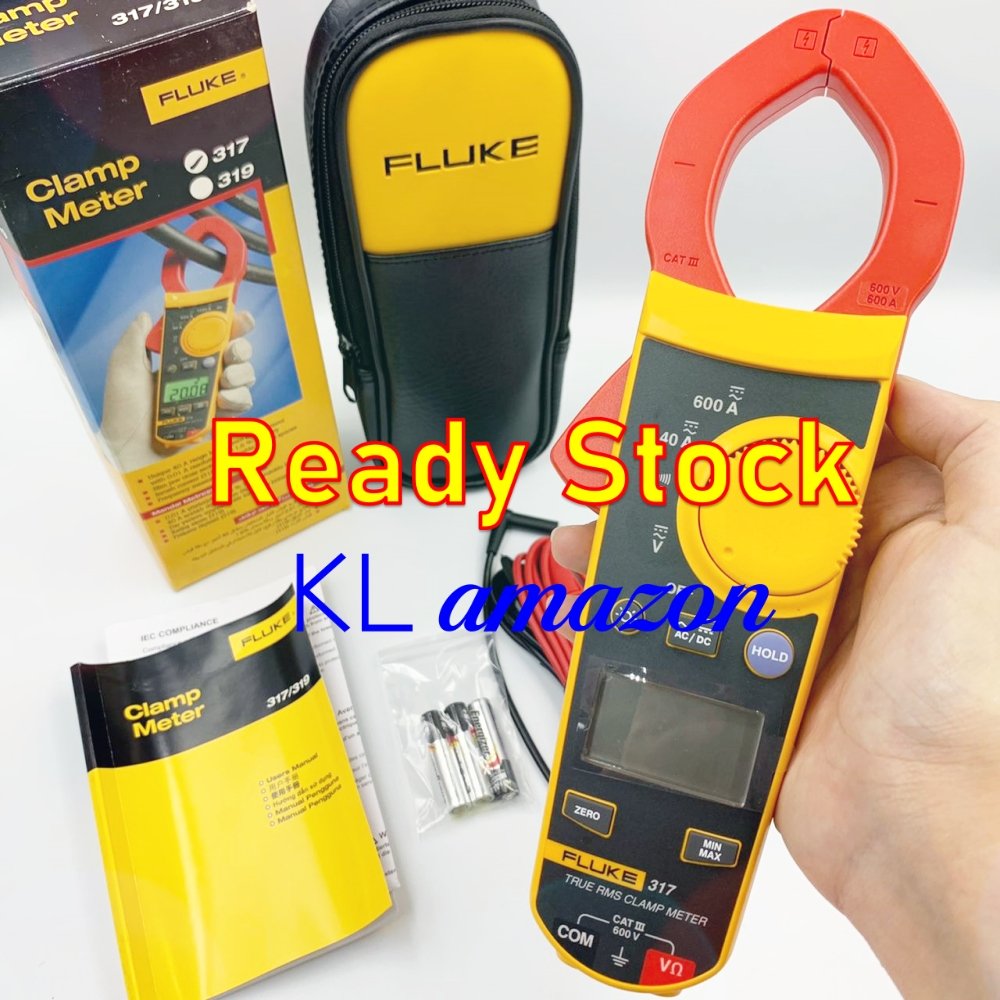

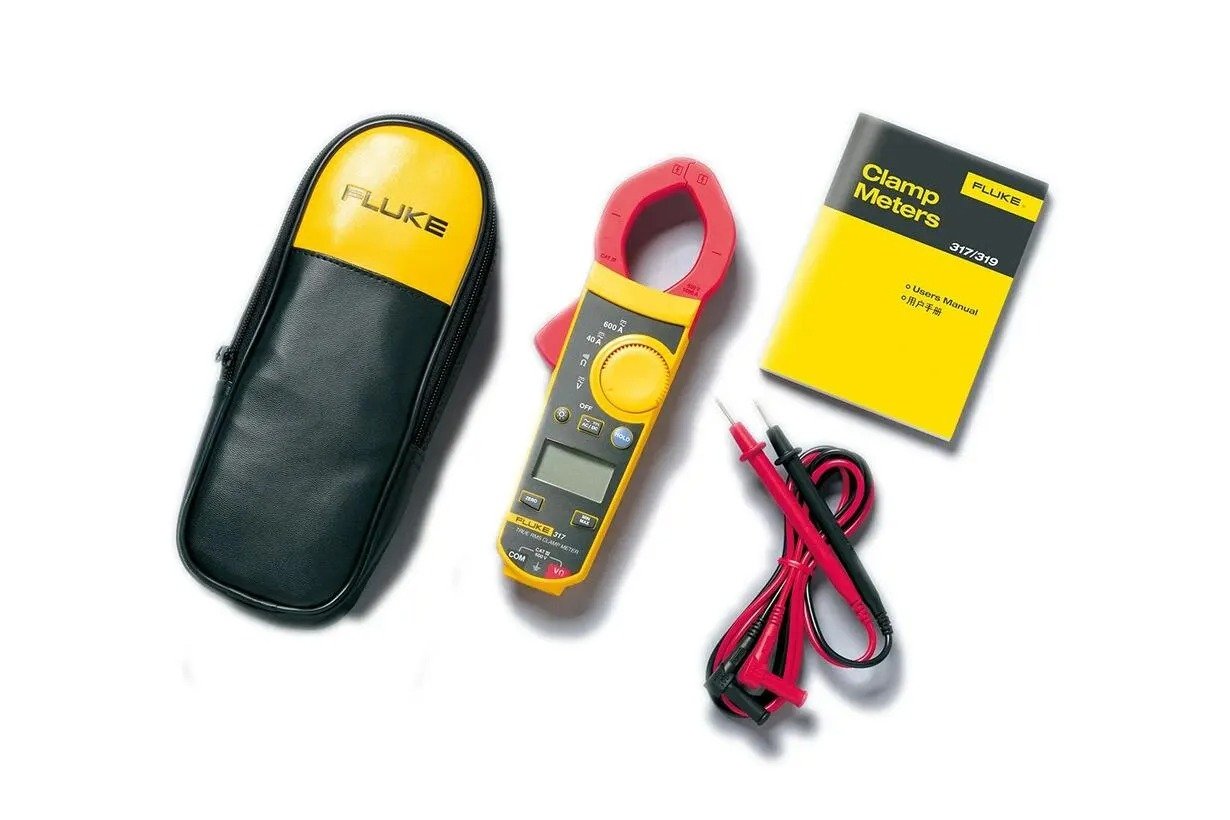

Fluke 317 Clamp Meters

The Fluke 317 Clamp Meter is a versatile and reliable tool designed for electricians, technicians, and field professionals who demand precision and convenience in a compact form. With its unique 40A high-precision low-current measurement, the meter delivers a 0.01A resolution and 1.6% accuracy, making it ideal for troubleshooting sensitive circuits and delicate electrical components.

In addition, the Fluke 317 is designed for ease of use in tight or confined spaces, thanks to its slim and lightweight clamps. Moreover, the large, backlit display ensures that readings are clearly visible, even in dark or poorly lit environments.

Furthermore, this meter provides comprehensive measurement capabilities, including 600A AC/DC current, 600V AC/DC voltage, and 4000Ω resistance. It also features a continuity beeper and current frequency measurement, enhancing its usefulness for a wide variety of testing tasks.

To improve usability and efficiency, the Fluke 317 includes an auto-off function to conserve battery life and a screen hold function to capture and review measurements easily. As a result, it combines powerful functionality, convenience, and reliability, making it a must-have tool for professional electrical work. Additionally, the meter comes with a one-year warranty, providing peace of mind and confidence in its performance.
- High-precision 40A low-current measurement with 0.01A resolution and 1.6% accuracy.

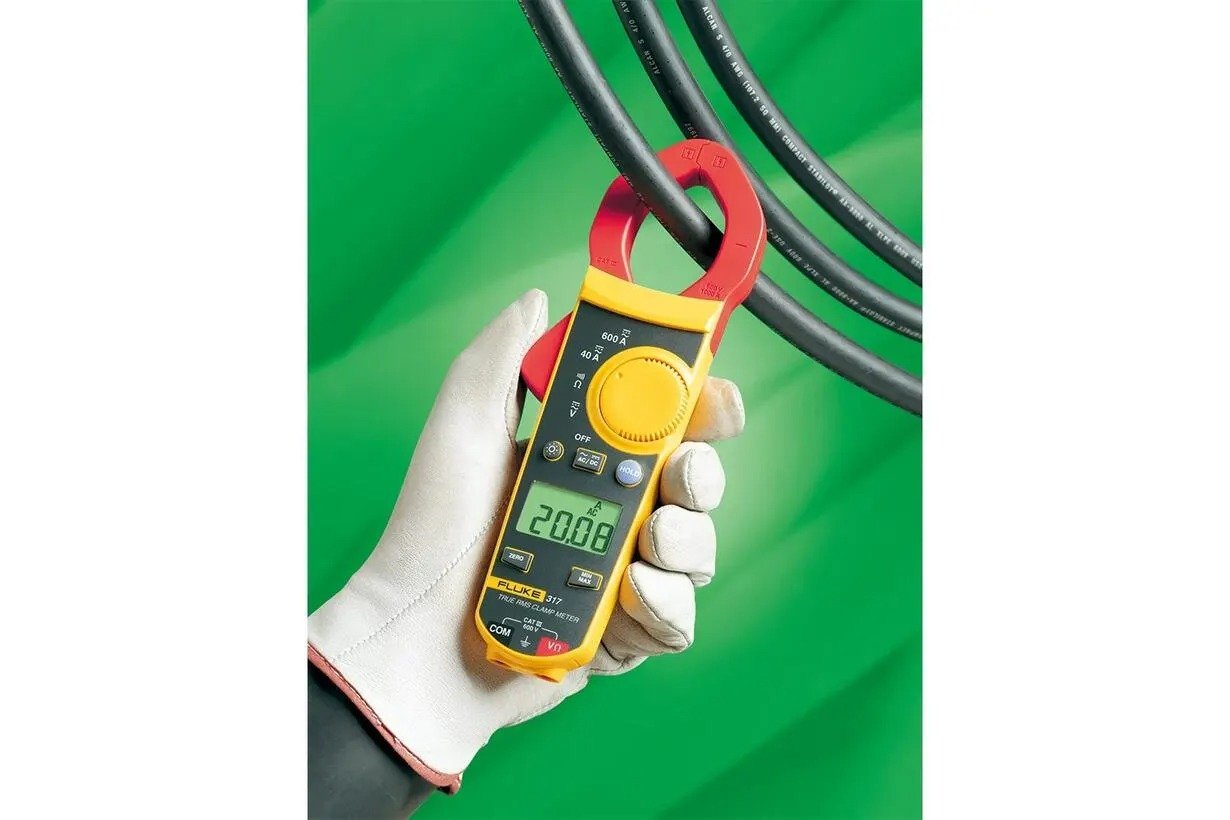

- Slim and lightweight clamps for use in tight spaces.
- Large backlit display for clear readings in dark environments.
- Measures 600A AC/DC current, 600V AC/DC voltage, and 4000Ω resistance.
- Continuity beeper and current frequency measurement.
- Auto-off function to save battery life.
- Screen hold function for capturing readings.
- Includes one-year warranty for reliability and peace of mind.

Specifications Of Fluke 317 Clamp Meters

General specifications
Digital display	6000 count resolution
Low battery Indication	Displays a signal when the batteries are below their required voltage
Power source	Three AAA IEC LR03 batteries
Clamp opening size	1.45 in (37 mm)
Jaw diameter	1.45 in (37 mm)
Dimensions (L x W x H)	9.21 in x 2.95 in x 1.37 in
Dimensions (L x W x H)	(234.0 mm x 75.0 mm x 34.8 mm)
Weight	Approximately 13.5 oz (384 g) (batteries included)
Auto range	Available in Ohms
Safety	CE
	EN/IEC 61010-1 and IEC 61010-2-032
	Measurement Category: 600V CAT III

317 Electrical specifications
Current AC	Range	40.00 A, 600.0 A
	Resolution	0.01 A, 0.1 A
	Accuracy	1.6% ±6 digit (50-60 Hz) {40 A}
		2.5% ±8 digit (60-500 Hz) {40 A}
		1.5% ±5 digit (50-60 Hz) {600 A}
		2.5% ±5 digit (60-500 Hz) {600 A}
	Crest Factor add 2% into spec for CF > 2	3.0 Max @ 500 A, 2.5 Max @ 600 A
	AC response	rms
Current DC	Range	40.00 A, 600.0 A
	Resolution	0.01 A, 0.1 A
	Accuracy	1.6% ±6 digit (40 A)
	Accuracy	1.5% ±5 digit (600 A)
Voltage AC	Range	600.0 V
	Resolution	0.1 V
	Accuracy	1.5% ±5 digit (20-500Hz)
	AC response	rms
Voltage DC	Range	600.0 V
	Resolution	0.1 V
	Accuracy	1% ±4 digit
Resistance	Range	400.0 Ω, 4000 Ω
	Resolution	0.1 Ω, 1 Ω
	Accuracy	1% ±5 digit
Continuity	≤ 30 Ω
Inrush	Integration time	N/A
Frequency	Range	N/A
	Accuracy	N/A
	Trigger Level	N/A

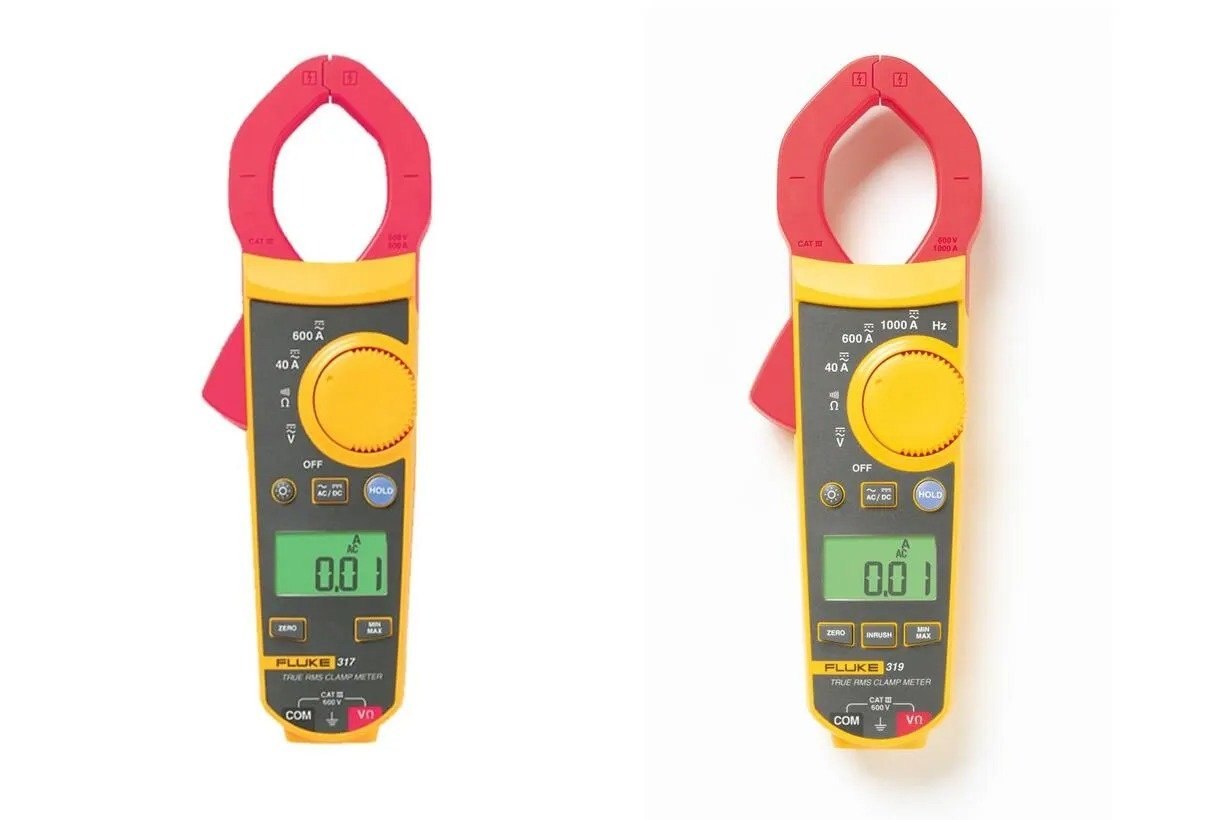

319 Electrical specifications
Current AC	Range	40.00 A, 600.0 A, 1000 A
	Resolution	0.01 A, 0.1 A, 1 A
	Accuracy	1.6% ±6 digit (50-60 Hz) {40 A}
		2.5% ±8 digit (60-500 Hz) {40 A}
		1.5% ±5 digit (50-60 Hz) {600/1000 A}
		2.5% ±5 digit (60-500 Hz) {600/1000 A}
	Crest Factor add 2% into spec for CF > 2	3.0 Max @ 500 A, 2.5 Max @ 600 A, 1.4 Max @ 1000 A
	AC response	rms
Current DC	Range	40.00 A, 600.0 A, 1000 A
	Resolution	0.01 A, 0.1 A, 1 A
	Accuracy	1.6% ±6 digit (40 A)
	Accuracy	1.5% ±5 digit (600/1000 A)
Voltage AC	Range	600.0 V
	Resolution	0.1 V
	Accuracy	1.5% ±5 digit (20-500Hz)
	AC response	rms
Voltage DC	Range	600.0 V
	Resolution	0.1 V
	Accuracy	1% ±4 digit
Resistance	Range	400.0 Ω
	Range	4000 Ω
	Resolution	0.1 Ω
	Resolution	1 Ω
	Accuracy	1% ±5 digit
Continuity	≤ 30 Ω
Inrush	Integration time	100 ms
Frequency	Range	5.0 – 500.0 Hz
	Accuracy	0.5% ±5 digit
	Trigger Level	10 – 100 Hz ≥ 5 A, 5 – 10 Hz, 100 – 500 Hz ≥ 10 A
The accuracy specifications aply at 73 °F ±41 °F (23 °C ±5 °C) Below 64 °F and above 82 °F (18 °C and above 28 °C) accuracy degrades at (0.1) times specification per °C. True rms for ac V and ac A accuracy is specified from 5% to 100% of range.

Environmental specifications
Operating temperature	14°F to 122°F (-10 °C to 50 °C)
Storage temperature	-40 °F to 140 °F (-40 °C to 60 °C)
Operating humidity	Non-condensing (< 50 °F) (< 10 °C)
	90% RH (50 °F to 86 °F) (10 °C to 30 °C)
	75% RH (86 °F to 104 °F) (30 °C to 40 °C)
	45% RH (104 °F to 122 °F) (40 °C to 50 °C)
	(Without condensation)
Operating altitude	1 mile (2000 meters) above mean sea level
Storage altitude	7 miles (12,000 meters) above mean sea level
IP Rating	IP40
Vibration requirements	Random MIL-PRF-28800F Class 2, 5-500 Hz, 30 minutes per axis
Drop test requirements	3 ft (1 m) drop test, six sides, oak floor
EMI, RFI, EMC	Instrument unspecified for use in EMC field ≥ 0.1 V/m
Temperature coefficients	0.1x (specified accuracy)/ °C
	(<64 °F or > 82° F)
	(<18 °C or > 28 °C)
