FLUKE 404E Laser Distance Meter

The Fluke 404E Laser Distance Meter is a professional-grade measuring device designed for speed, accuracy, and reliability. Ideal for construction, surveying, and industrial applications, it allows you to measure distances, calculate areas and volumes, and perform Pythagoras measurements with ease.

Fast and Accurate Measurement – Instantly measure distance, calculate area, volume, or apply the Pythagoras method for indirect measurements.

Auto Level and Height Functions – Ensure consistent and precise readings in every environment.

Rugged, Weather-Resistant Design – Rated IP54 for dust and water resistance and tested for 1-meter drops.

Electronic Angle Display – Built-in angle measurement with auxiliary level function for enhanced accuracy.

Large Data Storage – Save up to 100 measurement sets for easy access.

Long Battery Life – Take up to 5,000 single measurements on a single charge.

Automatic Power-Off – Conserves battery by shutting down after 3 minutes of inactivity.

Fluke 405 / 408 / 410 provide additional features as:

Universal Tripod Mount – Stable setup for precise long-distance measurements.

Type-C Fast Charging – Modern, reversible connector for quick power-ups.

2-Inch HD Display – Bright and easy to read, even in direct sunlight.

IP65 Protection Rating – Higher dust and water resistance for demanding environments.

Extended Operating Endurance – Designed for longer work sessions without interruptions.

Specifications Of FLUKE 404E Laser Distance Meter

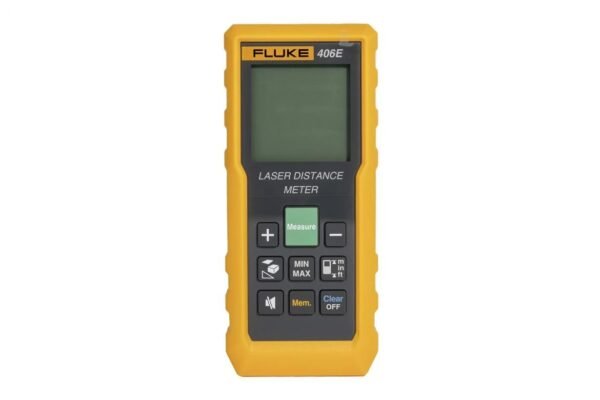

Model	Fluke 404E	Fluke 406E	Fluke 405	Fluke 408	Fluke 410
Specifications
Range	0.2 to 40 m	0.2 to 60 m	0.2 to 50 m	0.2 to 80 m	0.2 to 100 m
Accuracy* in favorable condition**	±(2.0mm+5×10^-5D)		±(2.0mm+5×10^-5D)
Accuracy in unfavorable condition***	±(3.0mm+29×10^-5D)		±(3.0mm+29×10-5D)
Angle accuracy	±(0.3°+0.1°+0.01*A), A is up to ±45° in each quadrant
Angel measurement method	Electronic
Measurement unit	m / ft / in / ft+in
Display	1.6 inch, segment alphanumeric display		2.0-inch positive display
* Temperature for specified accuracy: 25°C Favorable conditions: white and diffuse reflection objects (white painted walls) ,low background illumination and moderate temperature * Unfavorable conditions: objects with low or high reflectivity, high background illumination or the temperature is at the upper or lower limit of the specified temperature range
Measurements
Single measurement	●	●	●	●	●
Continuous measurement	●	●	●	●	●
Area measurement	●	●	●	●	●
Volume measurement	●	●	●	●	●
Auto Leveling	●	●	●	●	●
Auto Vertical	●	●	●	●	●
Pythagoras 1	●	●	●	●	●
Pythagoras 2	●	●	●	●	●
Plus-minus method	●	●	●	●	●
Measurement reference	Front / Back		Front / Tripod hole / Back / Extender
Auto-off	3 minutes after inactivity		3 minutes after inactivity
History measurement data	30 sets		100 sets
Time-delay measurement			●	●	●
Auto calibration			●	●	●
Side button			●	●	●
Extender			●	●	●
General
Laser class	Class 2
Laser type	630 to 670nm, <1mW
Battery life	up to 5000 measurements (single measurement)		up to 3500 measurements (single measurement)
Operating temperature	0 C° to 40 C°
Storage temperature	-10 C° to 60 C°
Ingress protection	IP54		IP65
Drop test	1 m		1 m
Size	50 mm × 115mm × 29mm		52 mm × 116mm × 28mm
Weight	100g		110g
Certification
Laser certification	IEC 60825-1: Class 2, 635 nm, <1 mW CPA, CE
Electrical certification	IEC 61010-1: Pollution Degree 2 EMC： IEC 61326-1: Industrial Electromagnetic Environment CISPR 11: Group 1, Class A
Packaging and accessories
Packaging box	Folding box	Folding box	Full telescope	Full telescope	Full telescope
User manual	√	√	√	√	√
Vinyl carrying pouch	√	√	√	√	√
Battery	2 AAA alkaline cells	2 AAA alkaline cells	2 AAA NiMH rechargeable cells	2 AAA NiMH rechargeable cells	2 AAA NiMH rechargeable cells
Qualification certificate	√	√	√	√	√
Lanyard			√	√	√
Charging cable			Type-C cable, 0.5m	Type-C cable, 0.5m	Type-C cable, 0.5m

Product Catalog
- MODEL FLUKE 404E Product Catalog (English)
Instruction Manual

FLUKE 404E LASER DISTANCE METER
