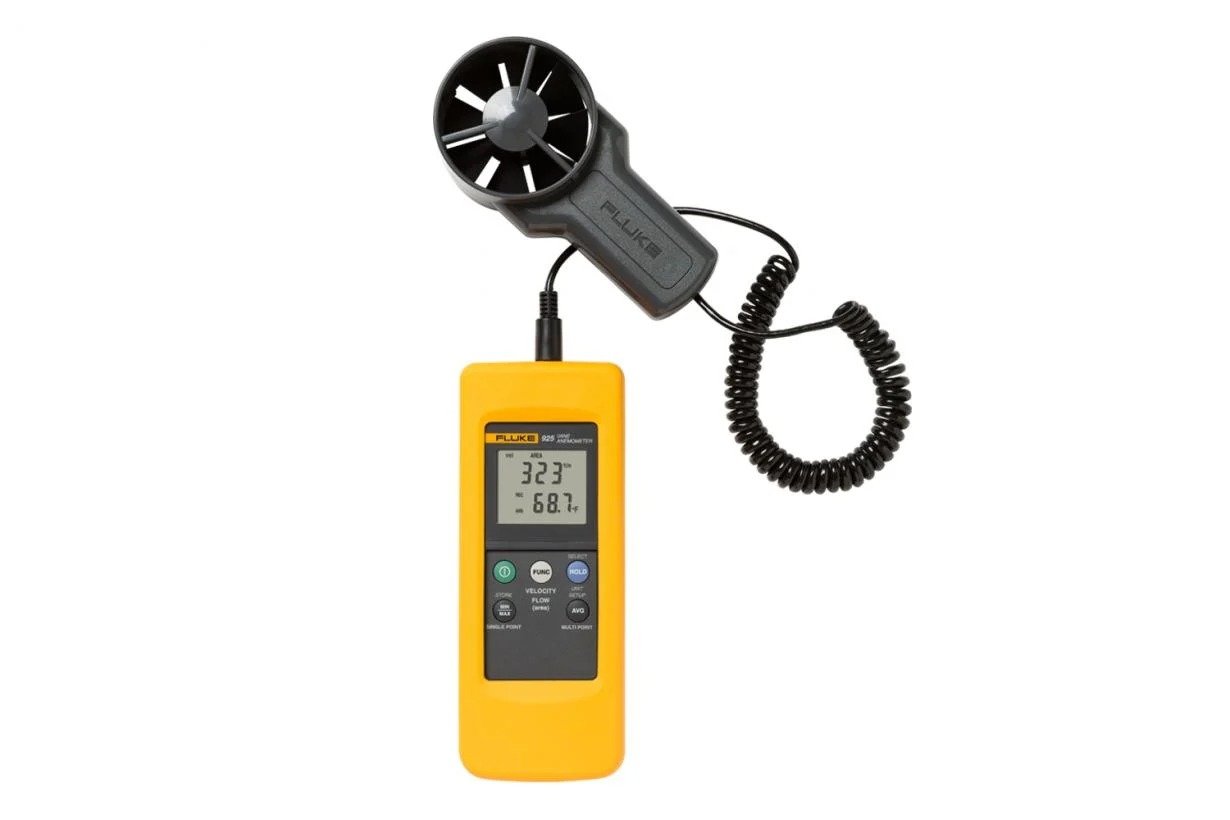

FLUKE 925 VANE ANEMOMETER

Overview of FLUKE 925 Vane Anemometer

The FLUKE 925 Vane Anemometer is a rugged, easy-to-use instrument designed for precise wind speed measurement in both industrial and environmental applications. Whether you’re working in HVAC system testing, environmental monitoring, or air flow measurement, the FLUKE 925 delivers accurate, repeatable results every time.

Capable of measuring wind speed in feet per minute (FPM) or meters per second (m/s), this device offers flexibility for different measurement standards. With its one-button data capture, you can store and review readings effortlessly, and the averaging function ensures consistent results across multiple measurements.

  • Ability to measure wind speed in feet per minute or meters per second
  • Data capture using one button and the ability to average multiple readings
  • Min and Max alarm setting to alert the user when limits have been met
  • Durable over mold housing to protect the unit from drops
  • 1 M extension of sensor from display to ensure air flow is captured in hard to reach locations



Specifications Of FLUKE 925 Vane Anemometer

Wind speed measurement Range Resolution
m/s
ft/m
0.40 to 25.00 m/s
80 to 4900 ft/m
0.01 m/s
1 ft/m
Air flow measurement Range Resolution
CMS
(cubic meter/second)
0.01 to
99.99 m3/s
0.01
CFM
(cubic foot/minute)
1 to 9999 ft3/m 1
Wind temperature measurement Range Resolution
Wind temperature 0°C to 50°C 0.1°C

Product specification

Display Dual-screen 4-digit (9999 points) LCD screen
Measurement unit Wind speed: ft/m; m/s
Air flow: CMS (m3/s) and CFM (ft3/m)
(cubic foot/minute)
Wind temperature: °C and °F
Data holding Lock the displayed readings
Sensor Wind speed/air flow sensor: conventional angular vane arm, lubricating ball bearing
Wind temperature sensor: precision thermistor
Minimum/maximum value storage, recording and viewing the minimum reading and maximum reading
Average reading storage Single point (2 hours at most) or multiple points (8 readings at most)
Auto power-off Enter the sleep mode after 20 minutes (can be disabled) to save power
Power supply 9V battery (high capacity alkaline battery)
Battery life 100 hours
Weight 363 g, including the battery and sensor
Dimensions 181 × 71 × 38 mm
Sensor head diameter 70 mm
Warranty period 1 year
