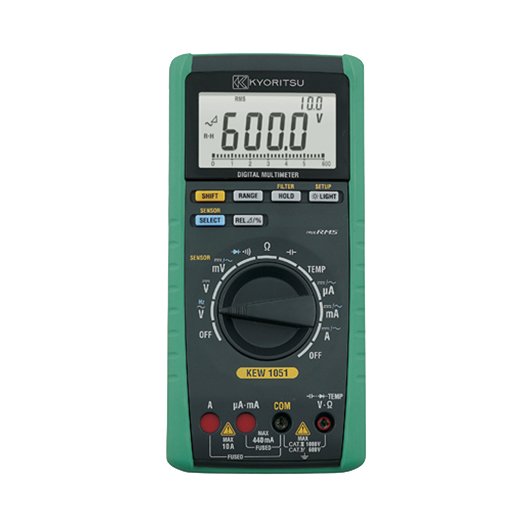

Kyoritsu 1051 Digital Multimeter

The Kyoritsu 1051 Digital Multimeter is a professional-grade electrical testing tool designed for technicians, engineers, and field professionals who demand exceptional accuracy and reliability. With a 0.09% basic DC accuracy, this multimeter delivers precise readings for critical applications, making it ideal for both industrial and laboratory use.

In addition, the large, 6,000-count display ensures that measurements are easy to read, while the True RMS functionality provides accurate readings on non-linear signals, making it suitable for modern electrical systems and complex circuits. Moreover, the integrated low-pass filter is perfect for troubleshooting motor drives and other noisy equipment, ensuring stable and reliable measurements in challenging environments.

Furthermore, the user calibration function allows for on-site adjustments, maintaining the meter’s precision over time and ensuring consistent performance. As a result, the Kyoritsu 1051 Digital Multimeter combines high-end accuracy, advanced functionality, and user-friendly features, making it an essential tool for any professional working with precision electrical measurements.

- 0.09% basic DC accuracy for precise measurements.
- True RMS measurements for accurate readings on non-linear signals.
- Large 6,000-count display for clear and easy-to-read measurements.
- Integrated low-pass filter for stable measurements on noisy motor drives.
- User calibration function for on-site adjustments to maintain accuracy.
- Ideal for technicians, engineers, and field professionals requiring high-end performance and reliability.

Safety design for industrial use

Complies with IEC 61010-1 CAT IV 600V , CAT III 1000V
Terminal shutter to prevent incorrect test leads’ insertion in current terminals
Very wide operating temperature range from -10 to 55ºC

Specification Of Kyoritsu 1051 Digital Multimeter

Detection mode	Ture RMS
DC V	600.0mV/6.000/60.00/600.0/1000V (Input impedance: 10MΩ [600mV/60/600/1000V], 11MΩ [6V]) ±0.09%rdg±2dgt (Basic accuracy)
AC V	600.0mV/6.000/60.00/600.0/1000V (Input impedance: 10MΩ<200pF [600mV], 11MΩ<50pF [6V], 10MΩ<50pF [60/600/1000V]) ±0.5%rdg±5dgt (Basic accuracy)
DC A	600.0/6000µA/60.00/440.0mA/6.000/10.00A ±0.2%rdg±2dgt (Basic accuracy)
AC A	600.0/6000µA/60.00/440.0mA/6.000/10.00A ±0.75%rdg±5dgt (Basic accuracy)
Ω	600.0Ω/6.000/60.00/600.0kΩ/6.000/60.00MΩ ±0.4%rdg±1dgt (Basic accuracy)
Continuity buzzer	600.0Ω (The buzzer turns on at resistances lower than 50±30Ω)
Diode test	2.000V ±1%rdg±2dgt Open curcuit voltage: <3.5V (Approx. 0.5mA Measuring Current)
Capacitance	10.00/100.0nF/1.000/10.00/100.0/1000µF ±2%rdg±5dgt (Basic accuracy)
Frequency	10.00 to 99.99/90.0 to 999.9Hz/0.900 to 9.999/9.00 to 99.99kHz ±0.02%rdg±1dgt (Basic accuracy)
Temperature	-50 to 600ºC ±2%rdg±2ºC (with the use of K-type Temperature probe)
Other functions	Data Hold (D/H), Auto Hold (A/H), Range Hold (R/H) Zero Adjustment (Capacitor, Resistance), LCD backlight
Applicable standards	IEC 61010-1 CAT IV 600V / CAT III 1000V Pollution degree 2 IEC 61010-031, IEC 61326-1 (EMC)
Display	6,000 counts
Power source	R6 (1.5V)×4 (Auto power off: Approx. 20 minutes)
Dimension	192(L)×90(W)×49(D) mm
Weight	Approx. 570g (including batteries and blank cover)
Accessories	7220A (Test leads) 8926 (Fuse [440mA/1000V])×1 (included) 8927 (Fuse [10A/1000V])×1 (included) R6×4 Instruction manual Blank cover
Optional accessories	7234 (Alligator clip) 8115 (AC/DC Clamp Sensor) 8121 (Load current Clamp Sensor) 8122 (Load current Clamp Sensor) 8123 (Load current Clamp Sensor) 8146 (Leakage & Load current Clamp Sensor) 8147 (Leakage & Load current Clamp Sensor) 8148 (Leakage & Load current Clamp Sensor) 7146 (Banana Ø4 adjuster plug) 8405 (Temperature probe) 8406 (Temperature probe) 8407 (Temperature probe) 8408 (Temperature probe) 9154 (Carring case)
