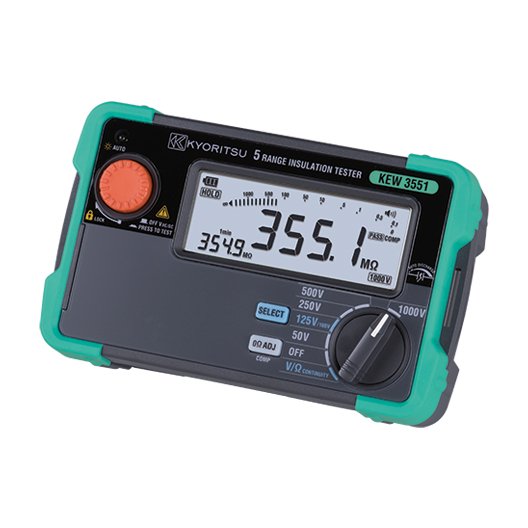

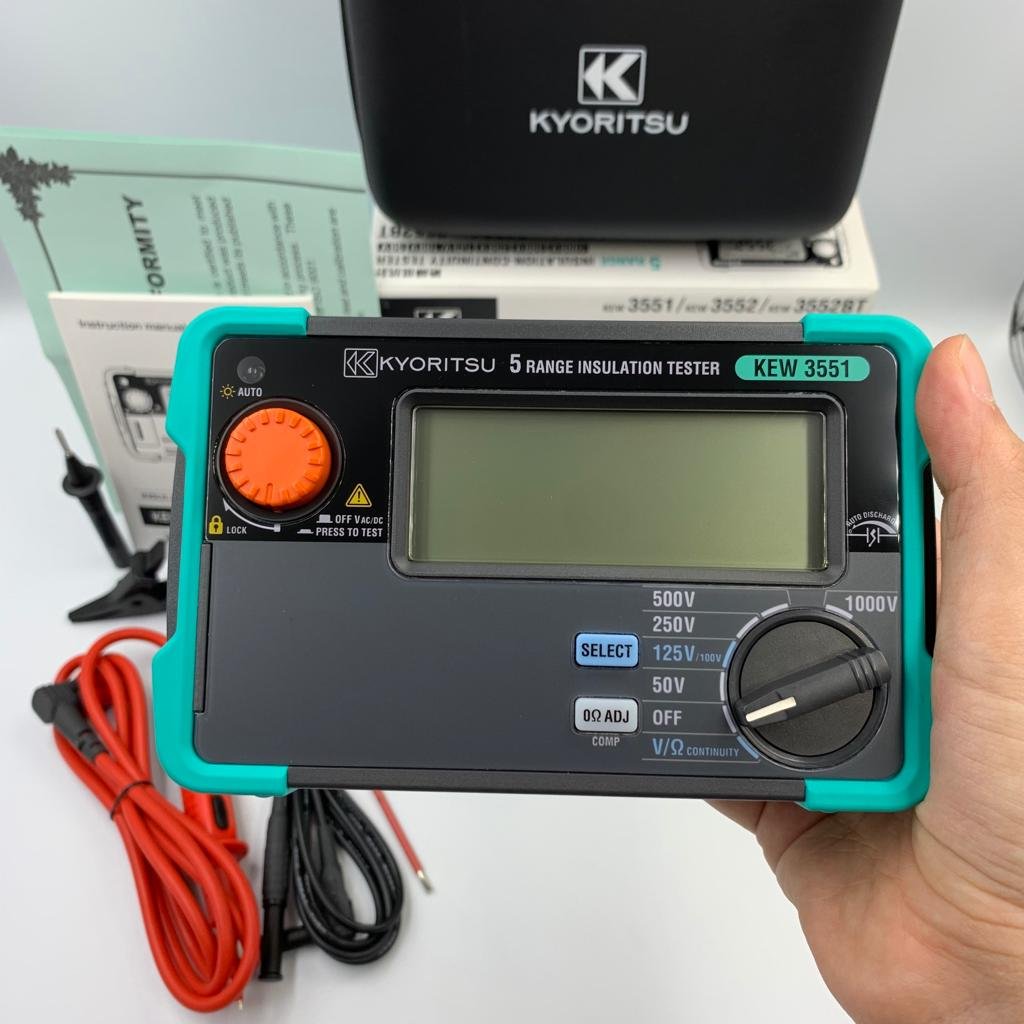

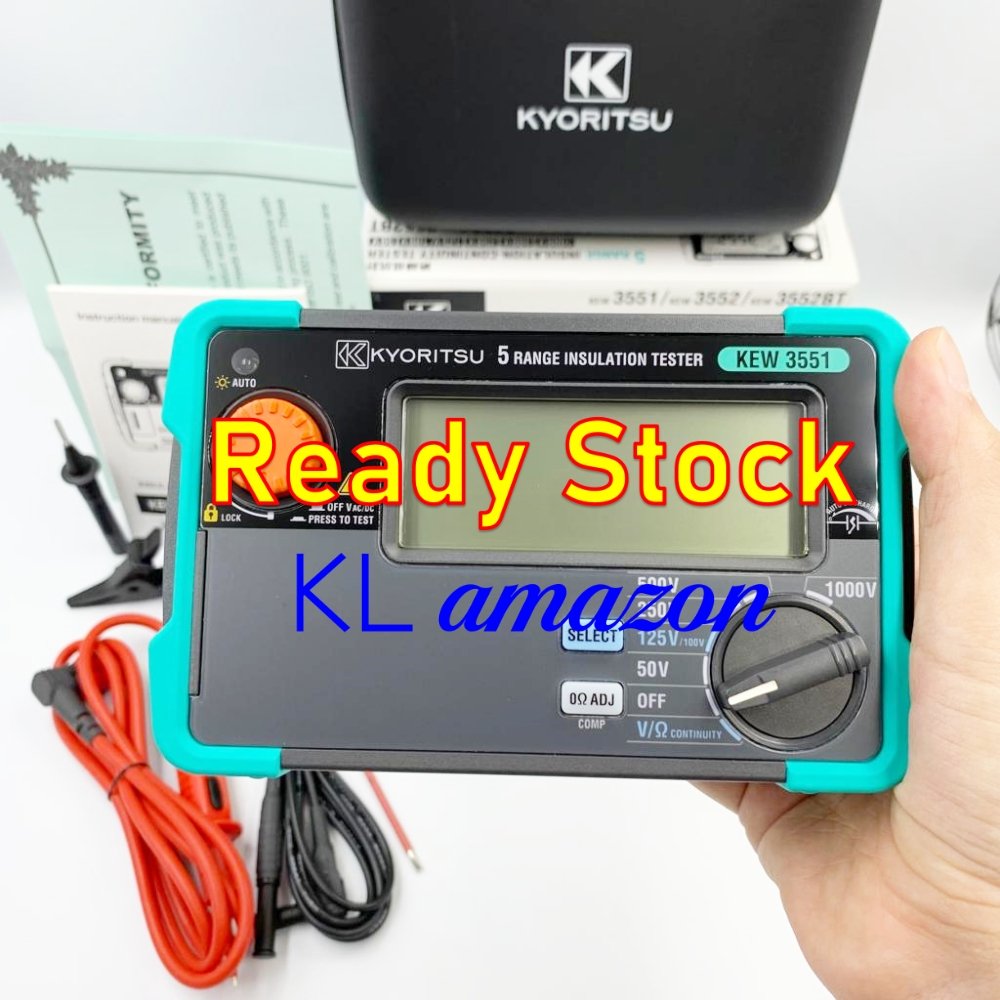

Insulation resistance
|
| Test voltage |
50V |
100V |
125V |
250V |
500V |
1000V |
Measuring range
(Auto-ranging) |
100.0MΩ |
200.0MΩ |
250.0MΩ |
500.0MΩ |
2000MΩ |
4000MΩ |
| Mid-scale value |
2MΩ |
5MΩ |
5MΩ |
10MΩ |
100MΩ |
200MΩ |
| First effective measuring range |
0.100 to 10.00MΩ |
0.100 to 20.00MΩ |
0.100 to 25.00MΩ |
0.100 to 50.0MΩ |
0.100 to 500MΩ |
0.100 to 1000MΩ |
| Accuracy |
±2%rdg ±2dgt |
| Second effective measuring range |
0.050 to 0.099MΩ
10.01 to 100.0MΩ |
0.050 to 0.099MΩ
20.01 to 200.0MΩ |
0.050 to 0.099MΩ
25.01 to 250.0MΩ |
0.050 to 0.099MΩ
50.1 to 500MΩ |
0.050 to 0.099MΩ
501 to 2000MΩ |
0.050 to 0.099MΩ
1001 to 4000MΩ |
| Accuracy |
±5%rdg
(0.050 to 0.099MΩ: ±2%rdg±4dgt) |
| Rated current |
1.0 to 1.1mA |
| Output short circuit current |
1.5mA max |
Ω / Continuty
|
| Auto-ranging |
40.00/400.0/4000Ω |
| Accuracy |
±2.5%rdg ±8dgt |
| Output voltage on open circuit |
5V（4 to 6.9V） |
| Output short circuit current |
200mA or more |
Voltage
|
| Voltage range |
AC 2.0 to 600V（45 to 65Hz）
DC -2.0 to -600V +2.0 to +600V |
| Accuracy |
±1%rdg ±4dgt |
General
|
| Applicable standards |
IEC61010 CATⅢ 600V / CAT IV 300V, IEC 61010-2-034
IEC61557-1,2,4 IEC61326-1,2-2 IEC60529（IP40） |
| Power source |
LR6/R6（AA）（1.5V）x4 |
| Dimension / Weight |
97(L) x 156(W) x 46(D) mm / Approx. 490g（including battery） |

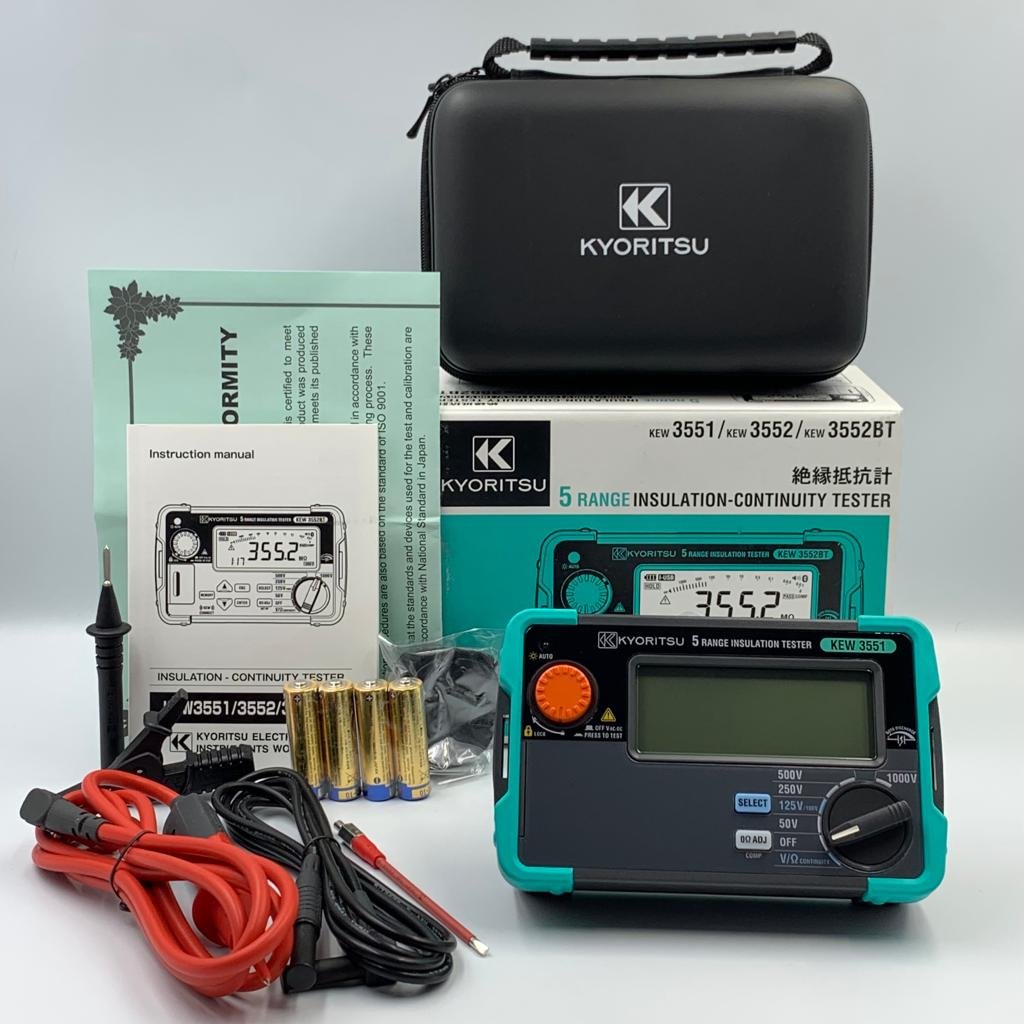

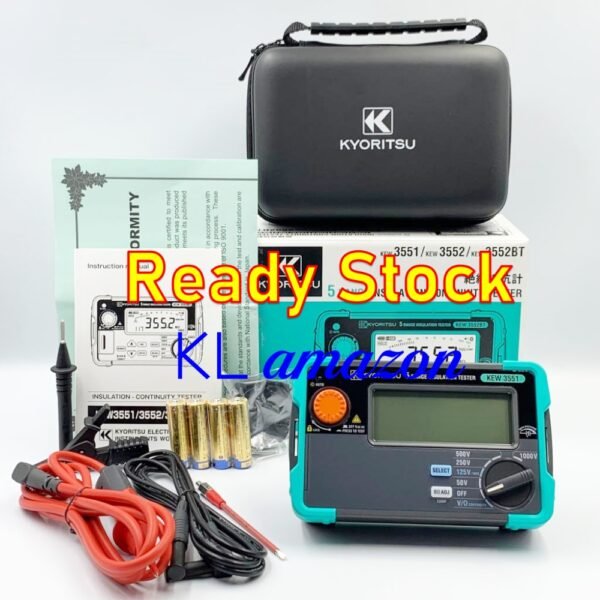

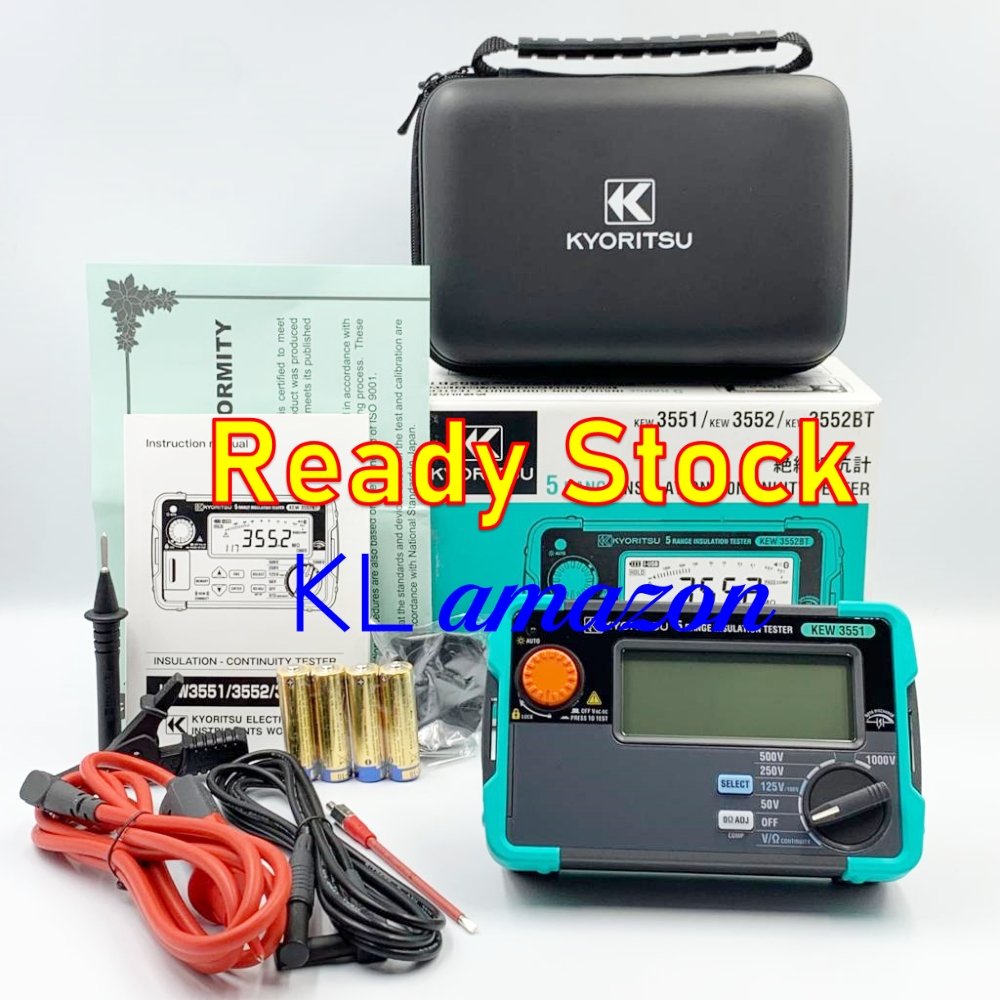

| Accessories |
7260（Test lead with remote control switch）
7261A（Test lead with alligator clip）
8017A（Extension prod long）
9173（Carrying case）
9121（Shoulder strap）
LR6（AA）x4 Instruction manual |
| Optional Accessories |
7243A（L-shaped probe）
8016（Hook type prod）
9186A (Carrying case)
9187 (Cord case) |
