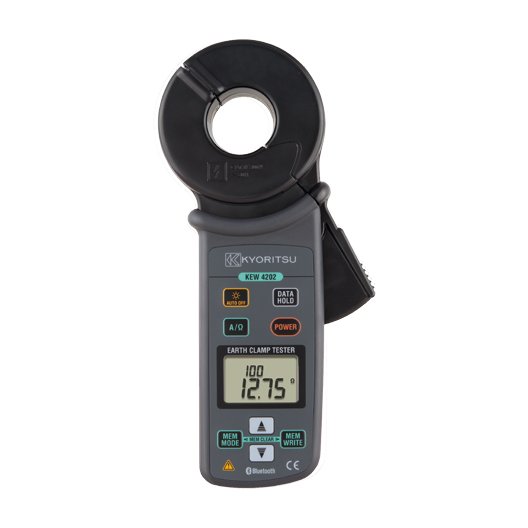

Earth resistance (Auto-ranging)
|
20.00/200.00/1500Ω
±1.5%±0.05Ω(0.00 to 20.99Ω) *1
±2%±0.5Ω(16.0 to 99.9Ω)
±3%±2Ω(100.0 to 209.9Ω)
±5%±5Ω(160 to 399Ω)
±10%±10Ω(400 to 599Ω)
Values are displayed, but accuracy isn’t guaranted(600 to 1580Ω)
|
AC current (50Hz/60Hz) (Auto-ranging)
|
100.0/1000mA/10.00/30.0A
±2%±0.7mA(0.0 to 104.9mA)
±2%(80mA to 31.5A)
|
Operating indication
|
Earth resistance function :
Constant voltage injection
Current detection (Frequency : Approx.2400Hz)
Dual Integration
AC current function : Successive approximation
|
Over-range indication
|
“OL”is displayed when input exceeds the upper limit of a measuring range
|
Response time
|
Approx. 7 seconds (Earth resistance)
Approx. 2 seconds (AC current)
|
Sample rate
|
Approx. 1 times per second
|
Communication interface
|
Bluetooth®5.0
|
Current consumption
|
Approx. 50mA (max.100mA)
|
Measurement time
|
Approx.5 hours (when R6 is used)
Approx. 21 hours (when LR6 is used)
|
Auto power off
|
Turns power off about 10 minutes after the last button operation.
|
Conductor size
|
Approx.Ø32mm
|
Applicable standards
|
IEC 61010-1 CAT Ⅳ 300V Pollution degree2
IEC 61010-2-032, IEC 61326 (EMC)
|
Power source
|
LR6/R6(AA) (1.5V) x 4
|
Dimension
|
246(L)×120(W)×54(D)mm
|
Weight
|
Approx. 780g (including batteries)
|

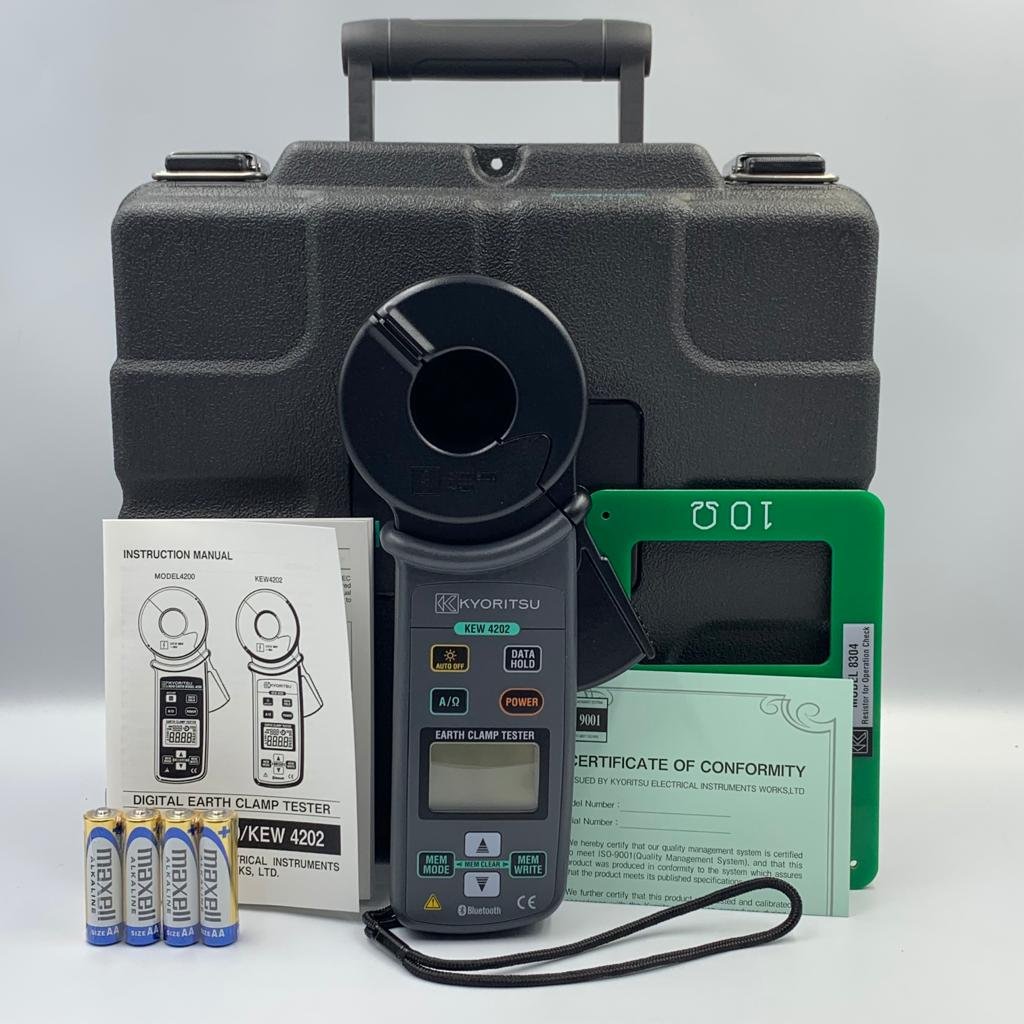

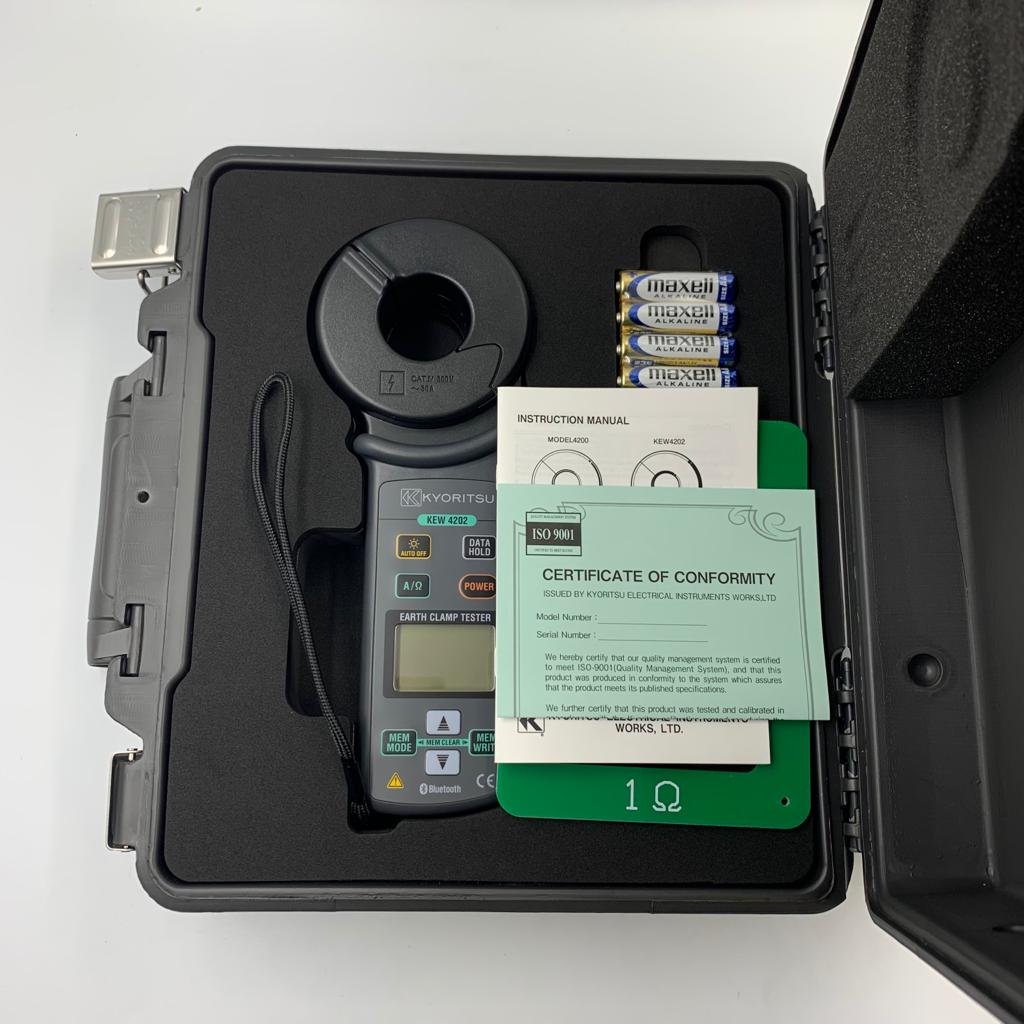

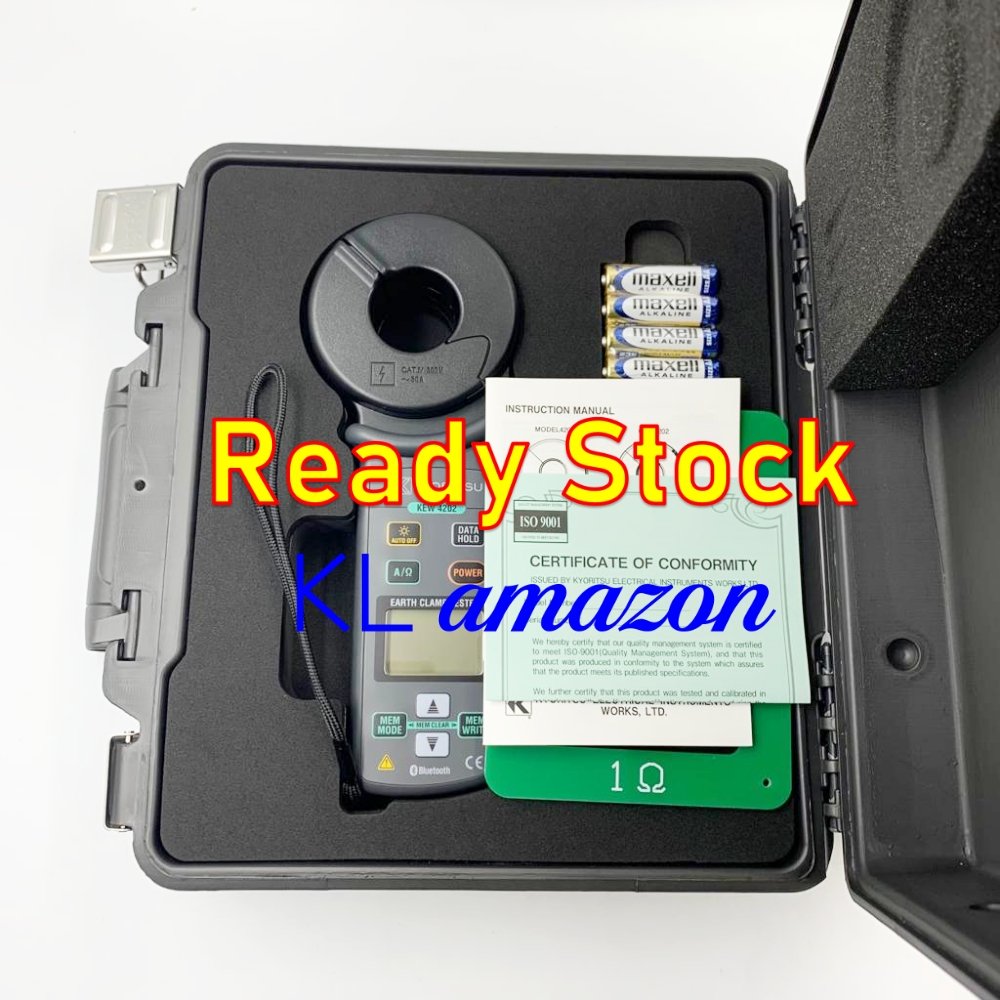

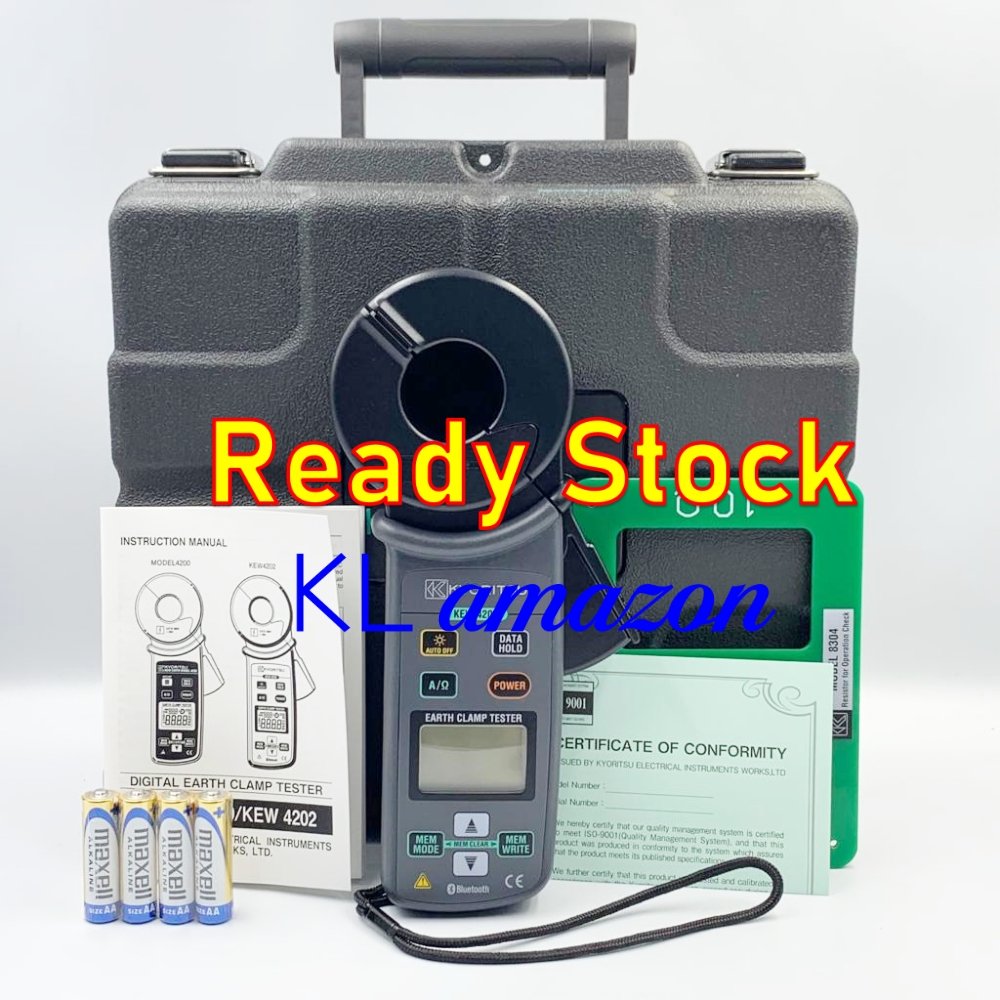

Accessories
|
8304 (Resister for operation check)

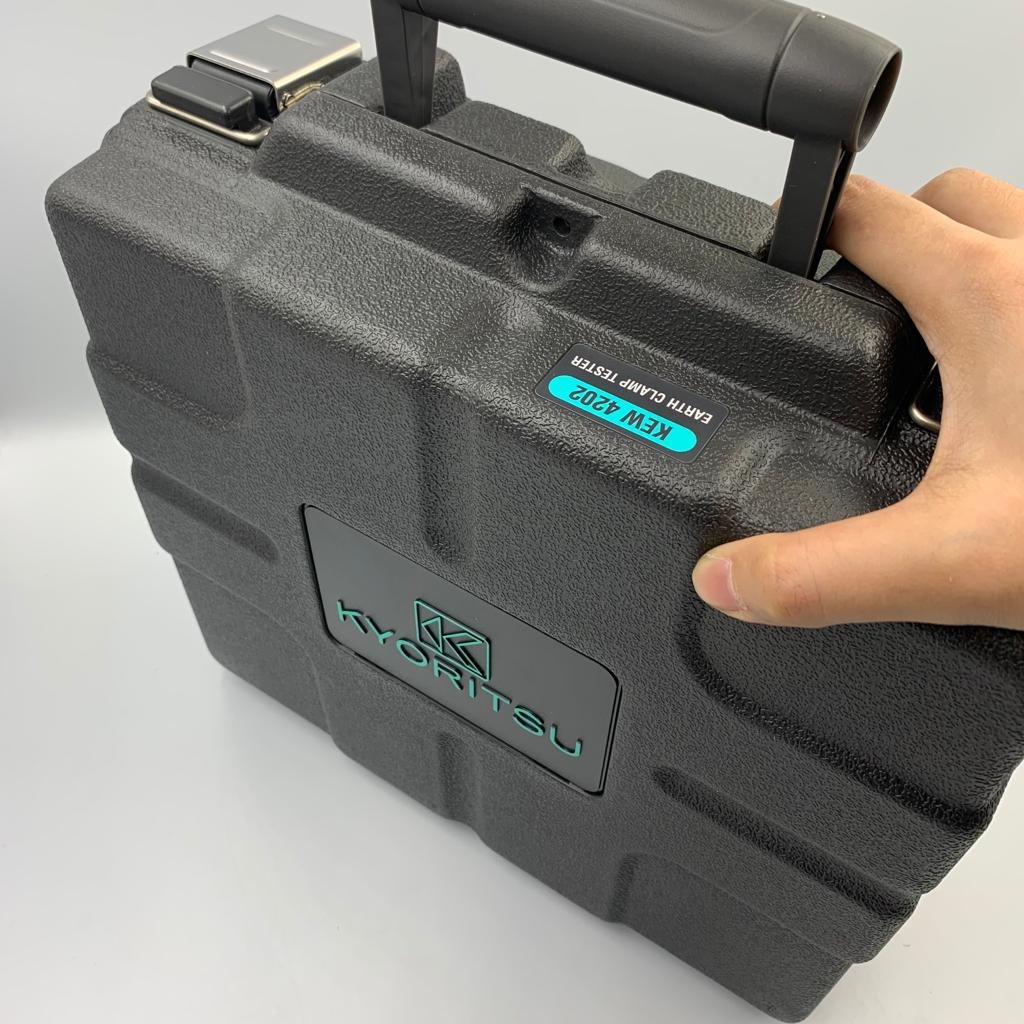

9167 (Carrying case[Hard])
LR6 x 4, Instruction manual
|
* Crest factor ≦ 2.5 (50/60Hz, peak value shall not exceed 60A)
*1 4 counts or less are corrected to 0.
-
