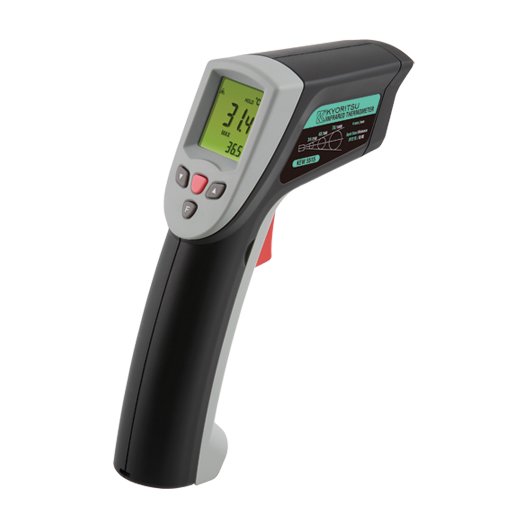

The KYORITSU 5515 Infrared Thermometer is a professional-grade temperature measuring device designed for precision, speed, and ease of use. With a single laser targeting system, it ensures pinpoint accuracy even from a distance. Moreover, the built-in backlit display allows you to read measurements clearly, even in dark or low-light conditions. In addition, its dual display feature enables you to view both the main temperature reading and secondary data, such as maximum, minimum, average, or thermocouple values. As a result, you can analyze temperature variations quickly and efficiently. Furthermore, the programmable high/low temperature alarm offers an extra layer of safety, while the red blinking backlight provides a clear visual warning when values exceed preset limits. Therefore, the KYORITSU 5515 is ideal for industrial, HVAC, electrical, and maintenance applications where accuracy and reliability are essential.
Infrared Thermometer
|
|
| Measuring range |
-32 to 535ºC |
| Accuracy |
±3.0ºC (-32 to -20 ºC), ±2.0ºC (-20 to +100ºC), ±2%rdg (100 to 535ºC) |
| Measuring element |
Thermopile |
| Infrared spectral band |
5 to 14μm |
| Measuring diameter |
1000mm/ ø78mm (Distance/ Measuring dia.: 12:1) |
| Repeatability |
Within ±1ºC |
| Emissivity |
Variable between 0.10 and 1.00 (by 0.01 steps), Before shipment: 0.95 |
| Collimation |
Laser beam (Class 2, 630 to 670nm, 1mW or less) specifies the center. |
Thermocouple
|
|
| Thermocouple |
K-type* |
Measuring range of
thermocouple |
-199 to 1372ºC |
Accuracy of
thermocouple |
±1.5%rdg+1ºC (-40 to 1372ºC) |
| Response |
500ms |
| Resolution |
0.1ºC |
| Auto power off |
If no key is pressed for 6 seconds, the power is shut off automatically. |
| LCD display |
LCD with backlight (blinks in red when alarm function is activated) |
| Dual display |
Simultaneous display
(Measured value and either of max, min, average or thermocouple value.) |
| Operating temperature & humidity |
0 to 50ºC/ 10 to 90% RH |
| Applicable standards |
IEC 61326, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-8, IEC60825-1 |
| Battery |
6F22(9V) × 1 |
| Dimension |
180 (L)×130 (W)×40 (D) mm |
| Weight |
Approx. 195g (excluding battery) |
| Accessories |
9152(Carrying case)
6F22(9V) × 1
Instruction manual |
* Commercial K-type thermocouple can be used with the product.
-
