PV Insulation resistance*
|
|
Test voltage |
500V |
1000V |
| Range(Auto-ranging) |
20.00/200.0/2000MΩ |
| Measuring range |
0.00 to 1.50MΩ
200.1 to 2000MΩ |
1.51 to 200.0MΩ |
0.00 to 1.50MΩ
1001 to 2000MΩ |
1.51 to 1000MΩ |
|
Accuracy |
±5%rdg±6dgt |
±1.5%rdg±5dgt |
±5%rdg±6dgt |
±1.5%rdg±5dgt |
| Open circuit voltage |
1 to 1.2times |
| Short circuit current |
1.5mA or less |
Insulation resistance
|
|
Test voltage |
250V |
500V |
1000V |
| Range(Auto-ranging) |
20.00/200.0/2000MΩ |
| Rated current |
1.0 to 1.2mA |
| 0.25MΩ |
0.5MΩ |
1MΩ |
| First effective measuring range |
1.51 to 100.0MΩ |
1.51 to 200.0MΩ |
1.51 to 1000MΩ |
|
Mid-scale value |
50MΩ |
| Accuracy |
±1.5%rdg±5dgt |
| Second effective measuring range |
1.20 to 1.50MΩ
100.1 to 2000MΩ |
1.20 to 1.50MΩ
200.1 to 2000MΩ |
1.20 to 1.50MΩ
1001 to 2000MΩ |
|
Accuracy |
±5.0%rdg±6dgt |
| Open circuit voltage |
1 to 1.2times |
| Short circuit current |
1.5mA or less |
Earth resistance
|
|
Measuring range(Auto-ranging) |
20.00/200.0/2000Ω |
| Accuracy |
±3.0%rdg±0.1Ω (20Ω range)
±3.0%rdg±3dgt (200/2000Ω range) |
| Voltage measurement |
|
Measuring range |
AC 5 to 600V (45 to 65Hz) DC ±5 to 1000V |
| Accuracy |
±1.0%rdg±4dgt |
| General |
|
Applicable Standards |
IEC 61010-1 CAT Ⅳ 300V / CAT Ⅲ 600V Pollution degree 2
IEC 61010-2-030, IEC 61010-2-034, IEC 61010-031, IEC 60529(IP54)
IEC 61557-1,2,5,10, IEC 61326-1,2-2 |
| Power source |
LR6(AA)(1.5V) × 6 |
| Dimension |
84(L) × 184(W) × 133(D)mm |
| Weight |
Approx. 900g (including batteries) |
| Accessories |
7196B(Test leads with remote control switch)
7244A(Test lead with alligator clip)
8017(Extension prod long)
8072(CATⅡStandard prod)
8212-USB(USB adapter)
9156A(Soft case with shoulder strap)
LR6(AA) × 6,
Instruction manual |
| Optional Accessories |
7243A(L-shaped probe)
7245A(Precision measurement cord set)
8016(Hook type prod) |
Please download “KEW Report(software)” from here.

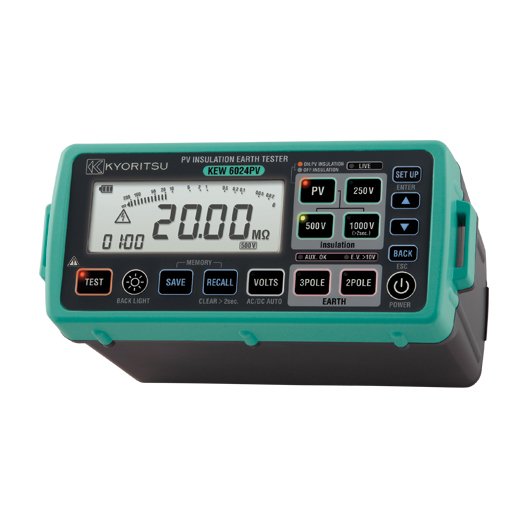

*6024PV supports PV systems up to 1000V.
-
