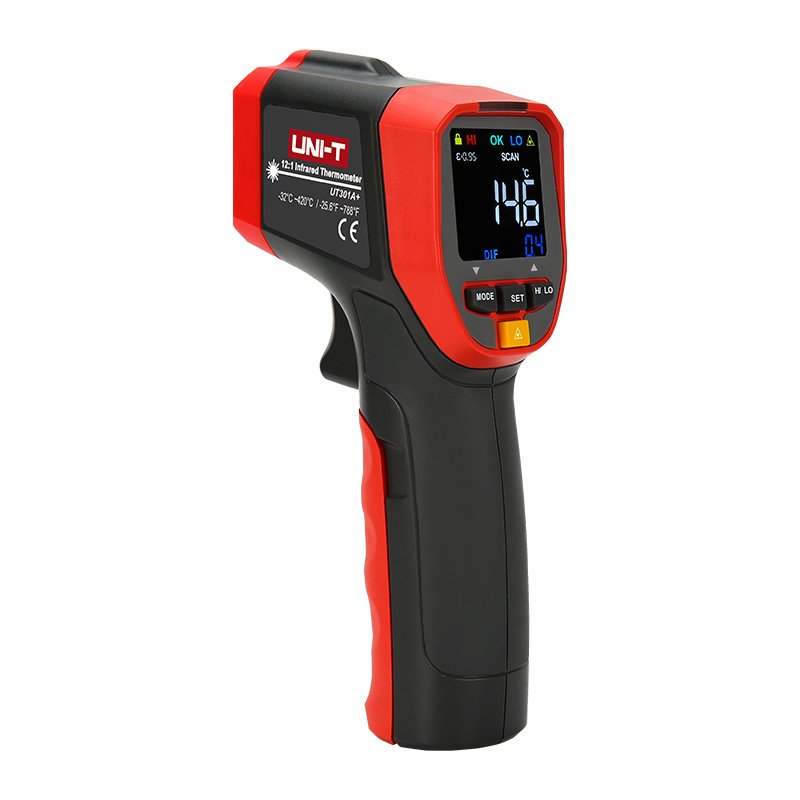

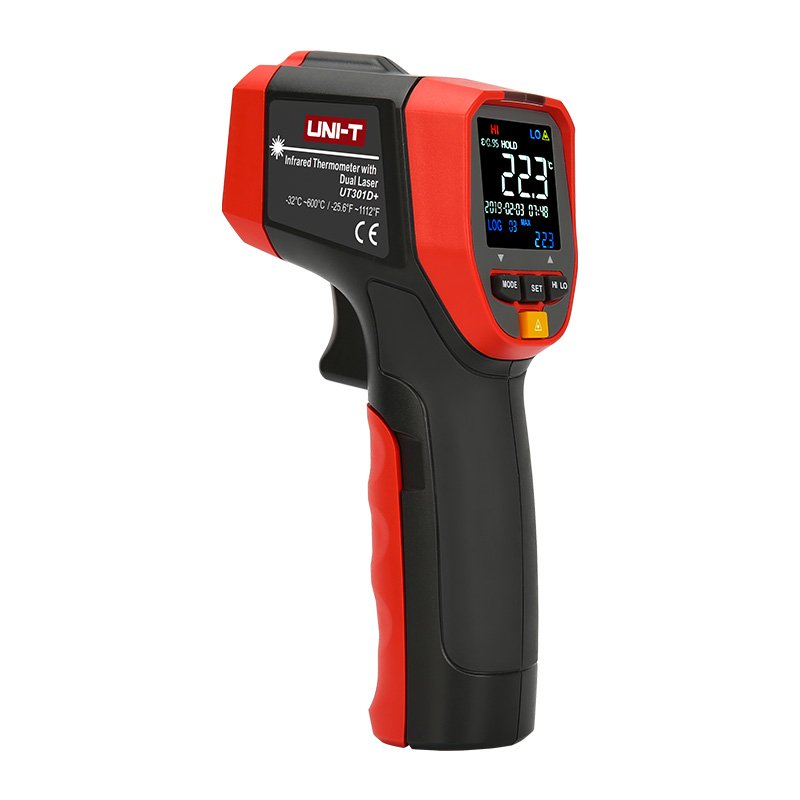

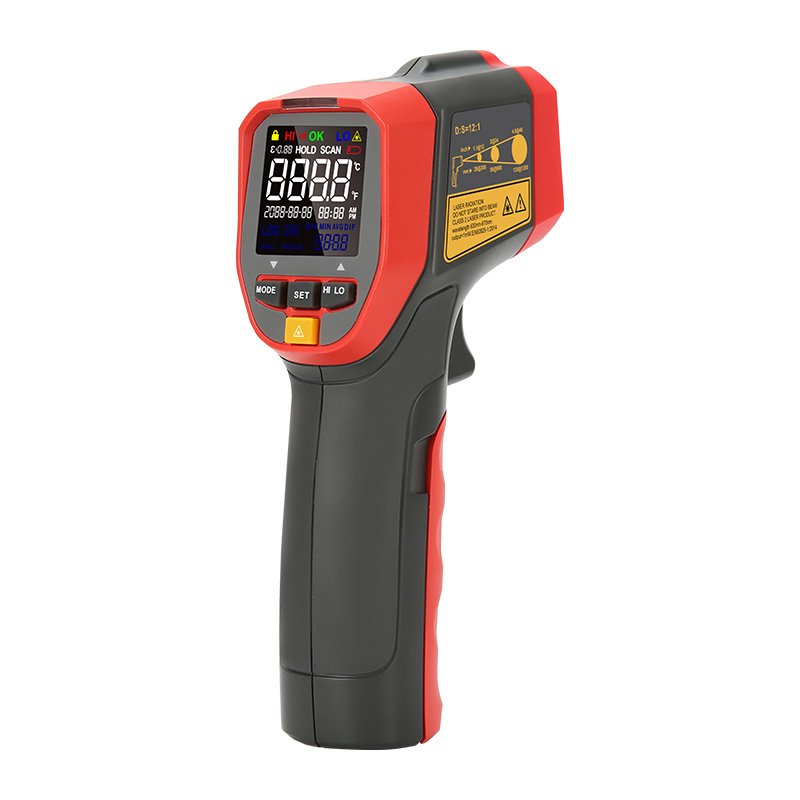

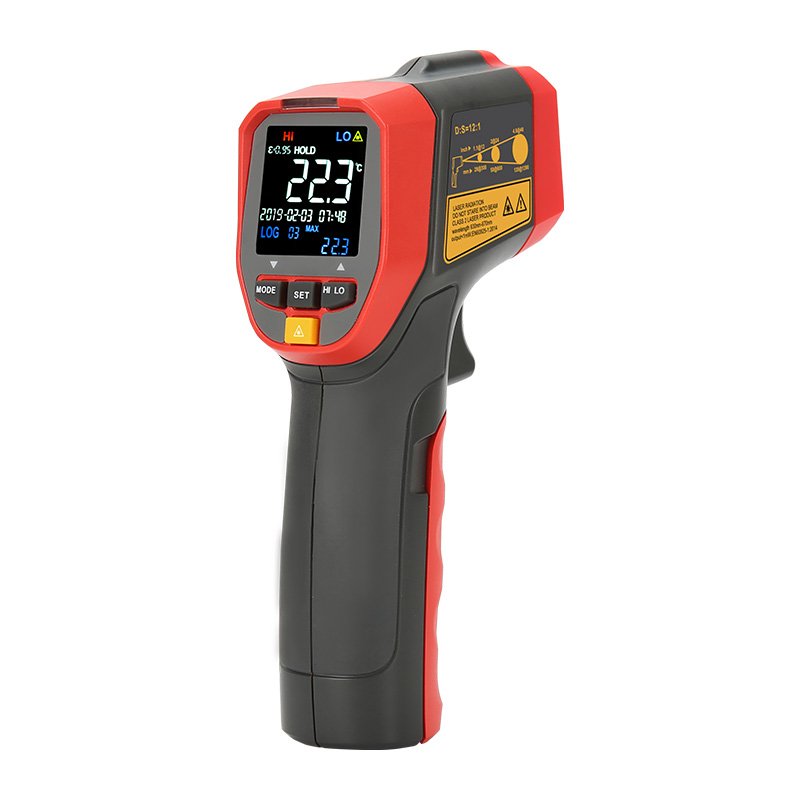

UNI-T UT301+ Series Infrared Thermometers
Specifications of UNI-T UT301+ Series Infrared Thermometers
| Specifications | UT301A+ | UT301C+ | UT301D+ |
| Temperature range | -32℃~420℃ | -32℃~600℃ | -32℃~600℃ |
| -25.6℉~788℉ | -25.6℉~1112℉ | -25.6℉~1112℉ | |
| Accuracy | >0℃: ±1.5℃ or ±1.5%; ≤0℃: ±(1.5℃+0.1℃/℃) | ||
| >32℉: ±3.0℉ or ±1.5%; ≤32℉: ±(3.0℉+0.1℉/℉) | |||
| Repeatability | 0.7℃ or 0.7% (1.5℉ or 0.7%) | ||
| D:S ratio | 12:1 (95%) | ||
| Response time | ≤250ms (95% of reading) | ||
| Emissivity | 0.1~1.0 (adjustable, stores 5 sets of preset values) | ||
| Spectral response | 8um~14um | ||
| Laser power | < 1mW | ||
| Features | |||
| Auto power off | √ | ||
| Low battery indication | √ | ||
| LCD display | Color EBTN | ||
| High/low temperature LED alarm | √ | ||
| High/low temperature audible alarm | √ | ||
| Data hold | √ | ||
| ℃/℉ selection | √ | ||
| MAX/MIN/AVG/DIFF mode | √ | ||
| Lock measurement | √ | ||
| Data storage | – | 99 | 99 |
| Scheduled measurement | – | √ | √ |
| Backlight | √ | ||
| Operating temperature | 0℃~50℃ (32℉~122℉) | ||
| Storage temperature | -20℃~60℃ (-4℉~140℉) | ||
| Operating humidity | <90% RH (non-condensing) | ||
| Drop test | 1m | ||
| Tripod mounting hole | √ | ||
| General Characterisitics | |||
| Power | 9V battery | ||
| Display | 30mm x 30mm | ||
| Product color | Red and grey | ||
| Product net weight | 204g | ||
| Product size | 160mm x 74mm x 48mm | ||
| Standard accessories | Battery, carrying bag | ||
| Standard individual packing | Gift box, blister, English manual | ||
| Standard quantity per carton | 20pcs | ||
| Standard carton measurement | 475mm x 350mm x 250mm | ||
| Standard carton gross weight | 10.43kg | ||
