UNI-T UT372D 2-IN-1 TACHOMETER

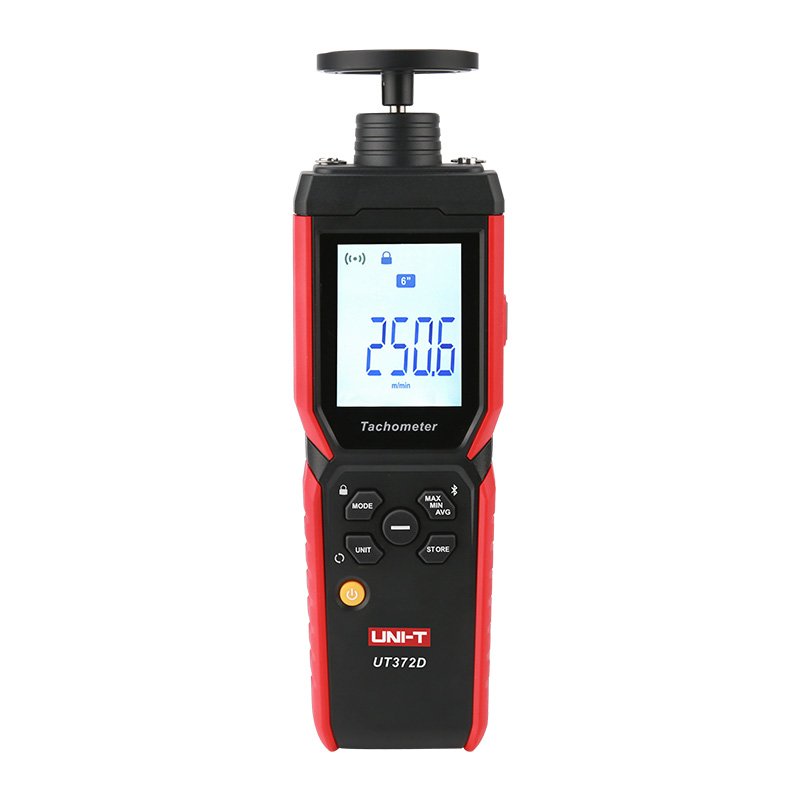

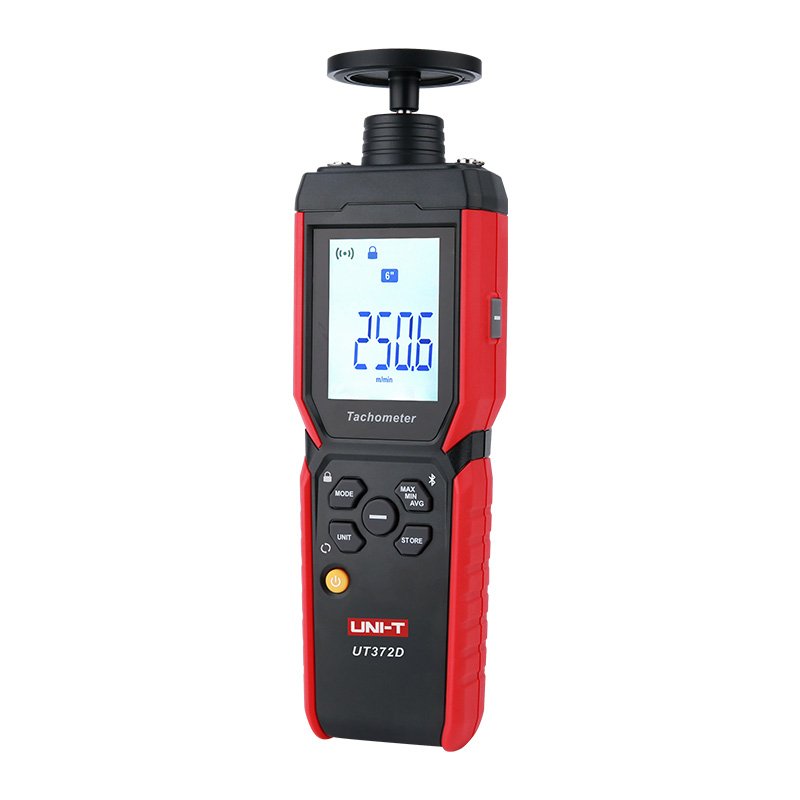

UNI-T UT372D 2-in-1 Tachometer

The UNI-T UT372D 2-in-1 digital tachometer is designed for accurate contact and non-contact RPM measurements, making it ideal for industrial, automotive, and mechanical applications. This tachometer combines precision, durability, and convenience in one compact device.

  • Offers both contact and non-contact RPM measurements, so you can work with different machinery and setups.

  • Also features MAX, MIN, AVG, and HOLD functions, which allow you to capture, review, and compare performance data with ease.

  • In addition, the rotatable LCD backlight screen ensures clear visibility from any angle, even in low-light environments.

  • You can quickly switch between units thanks to the built-in unit conversion function, making it adaptable for international standards.

  • Moreover, the Bluetooth APP connectivity lets you transfer and analyze data wirelessly for improved workflow efficiency.

  • The auto power-off function helps extend battery life, while data storage capability ensures your measurements are saved for future reference.

  • Finally, the two dedicated measurement buttons make operation faster, more comfortable, and user-friendly.



Specifications of UNI-T UT372D 2-in-1 Tachometer

Sepecification Range
Non-contact (optical) measurement Rotational velocity (RPM) 1-99,999
Frequency (HZ) 1-1,666
Count(REV) 1-99,999
Target distance 50~500mm
Contact measurement Rotational velocity (RPM) 1-19,999
Frequency (HZ) 1-333
Surface velocity 0.1m wheel
0.1-1,999m/min
0.4-6,550ft/min
4-78,700in/min
6”wheel
0.15-1,524m/min
0.5-5,000ft/min
6-60,000in/min
Length 0-99999(m/ft/in)
Accuracy ±0.02% ±1 digit
Measurement modes Contact RPM/Non-contact RPM/counting/frequency/Surface velocity/length
Contact measurement unit m/min, ft/min, in/min,m,ft,in
Statistical measurement Max/Min/Last reading/Average
Data storage 10 groups
Bluetooth APP √ (iENV)
Display Rotatable LCD backlight screen
Operating temperature/humidity 0°C~50°C; ≤80%RH
Storage temperature -20°C~60°C; ≤80%RH
Drop test 1m
Auto power off After about 15 minutes of inactivity
General Characteristics
Product color Red and grey
Product weight About 181g (without batteries)
Product size 176 × 63 x 38mm
Battery type AAA 1.5V ×3
Standard accessories user manual
quick start guide
safety instruction

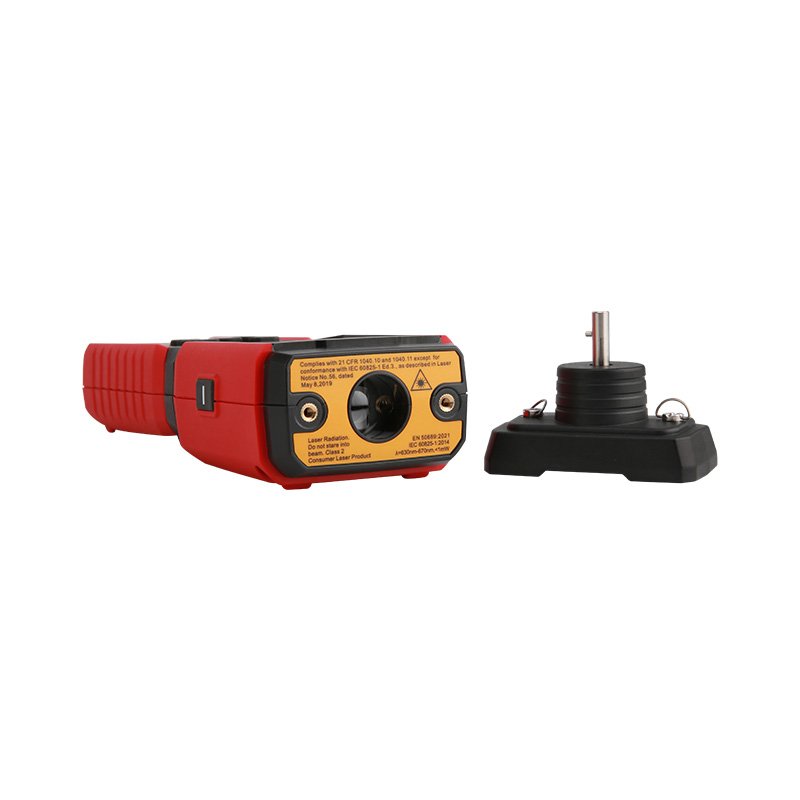

shaft contacts(cone/internal cone)

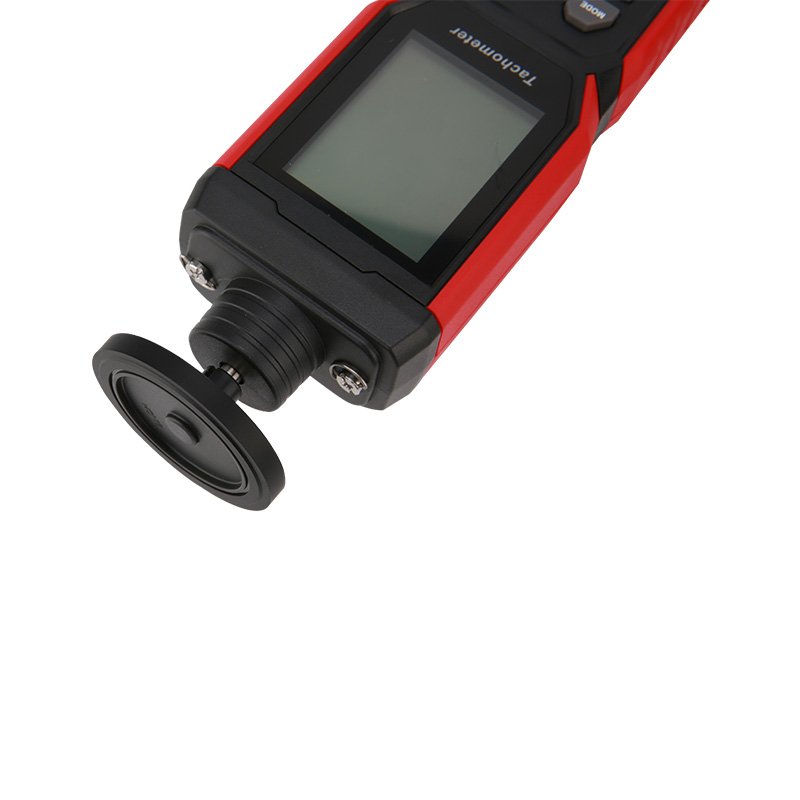

contact wheels(6in/0.1m)
cloth bag
reflecting tape
Standard carton measurment 395mm × 330mm x 330mm
Standard quantity per carton 10pcs
