UNI-T UT503PV PV INSULATION TESTER

Name: KL Amazon - Kyoritsu Fluke Uni-T Multimeter Supplier
Address: 553, Jalan Kwan Tung, Kampung Sungai Chua, Kajang, 43000, MY
Telephone: +60163776793

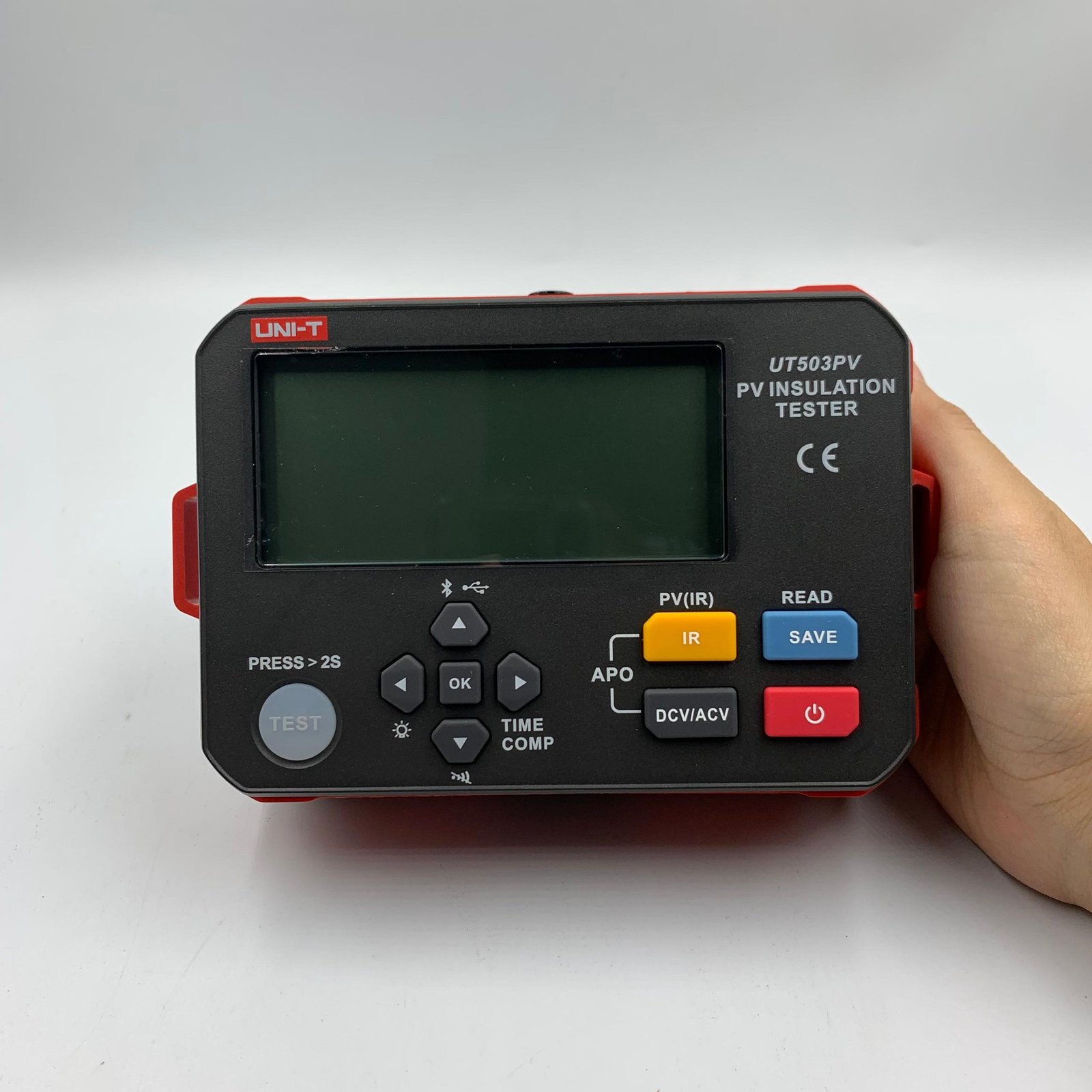

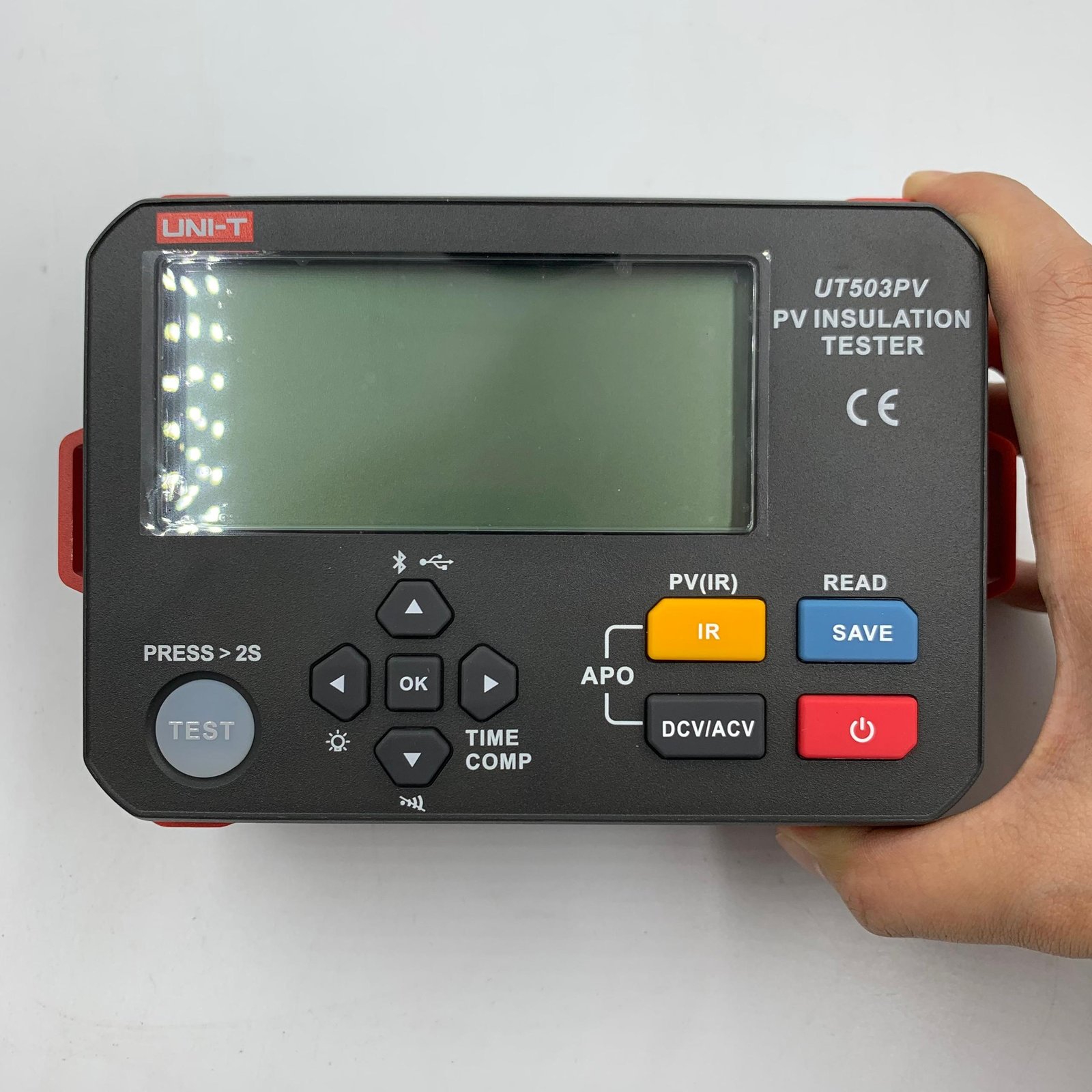

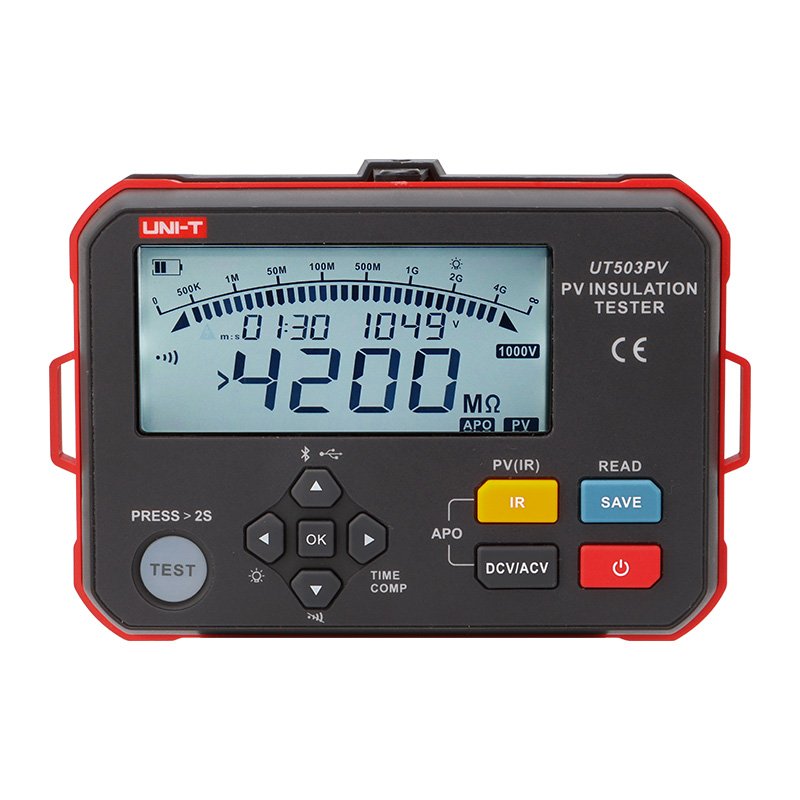

UNI-T UT503PV PV Insulation Tester

High output voltage up to DC 1000V for powerful insulation testing.
Energized device testing capability at DC 1000V.
Insulation resistance (PV+IR) measurement up to 4000MΩ.
Measures voltage up to 1000V DC and 600V AC for versatile applications.
Built-in auto discharge function for safety.
Stepping voltage feature for flexible testing.
Time measurement function for precise diagnostics.
Compare function (IR) for efficient analysis.
High voltage alarm to ensure user safety.
Data communication via USB cable and Bluetooth app.

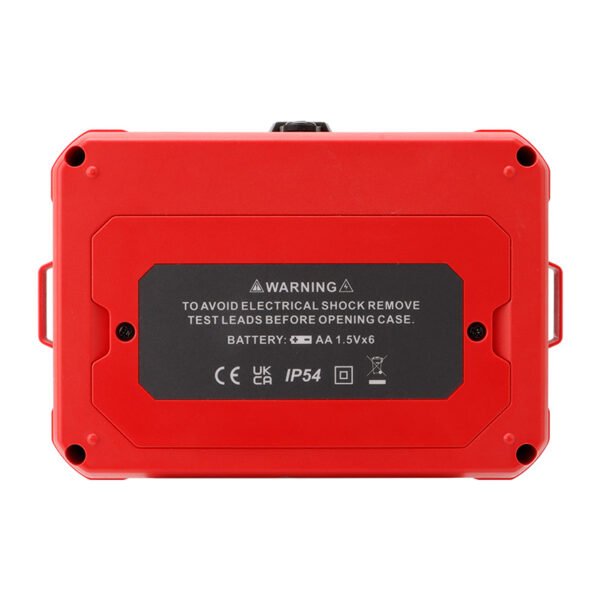

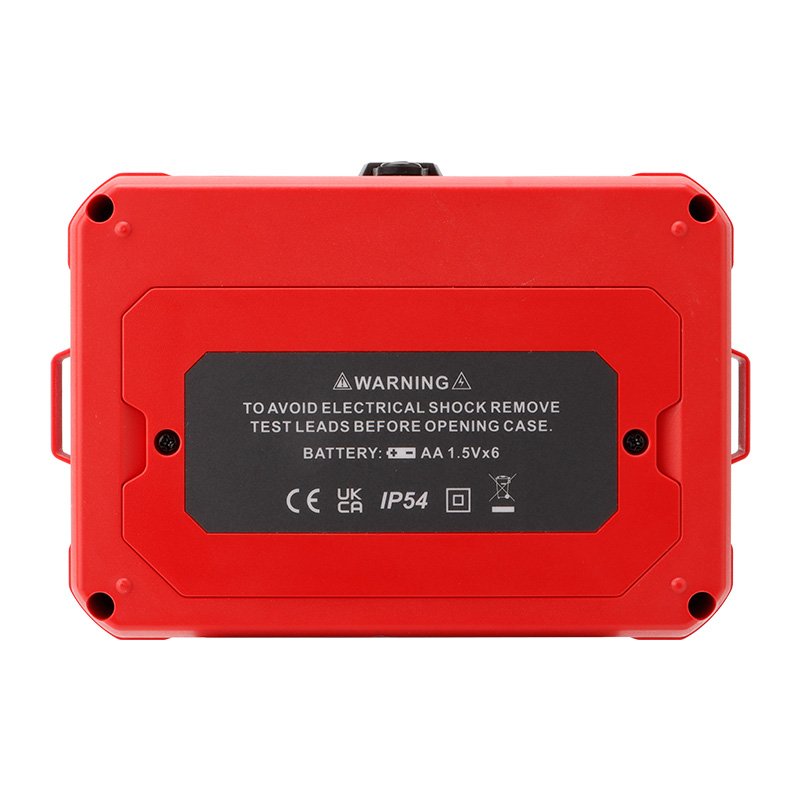

Powered by six LR6 AA alkaline batteries.
Portable and convenient design for field use.

Specifications Of UNI-T UT503PV PV Insulation Tester

Specifications
Output voltage	Insulation resistance	PV insulation resistance	Accuracy
125V	<1.51MΩ	N/A	For reference only
	1.51MΩ~100.0MΩ		±(1.5%+5)
	100.1MΩ~1000MΩ		±(5%+6)
250V	<1.51MΩ	N/A	For reference only
	1.51MΩ~200.0MΩ		±(1.5%+5)
	200.1MΩ~2000MΩ		±(5%+6)
500V	<1.51MΩ	<1.51MΩ	For reference only
	1.51MΩ~1000MΩ	1.51MΩ~1000MΩ	±(1.5%+5)
	1001MΩ~4000MΩ	1001MΩ~4000MΩ	±(5%+6)
1000V	<1.51MΩ	<1.51MΩ	For reference only
	1.51MΩ~1000MΩ	1.51MΩ~1000MΩ	±(1.5%+5)
	1001MΩ~4000MΩ	1001MΩ~4000MΩ	±(5%+6)
Voltage measurement	DC Voltage	5～1000V dc	±（1%+4）
Voltage measurement	AC Voltage	5～600V ac	±（1%+4）
Short circuit current	IR measurement	<1.5mA
Short circuit current	PV IR measurement	<1.2mA
Continue measuremenet(IR)	√(default setting)	Compare function(IR)	√
Time measurement	√	Stepping voltage	√
Auto discharge	√	High voltage alarm	√
Energized device test	IR measurement: DO NOT test if the energized device voltage is above 25V
Energized device test	PV IR measurement: the energized device voltage should under DC 1000V
Backlight	Auto & Manual backlight; auto power off in 30s
Data storage	1000 set
Data Communication	transmission via USB cable
Data Communication	transmission via Bluetooth app
IP	IP54(with cap closed)
CAT rating	CAT II 1000V, CAT III 600V
Certificates	CE, UKCA

General Features
Product Color	Red + grey
Product Weight(include batteries)	About 0.5KG (including battery)
Product Size	161(L)×117.3(D)×63(H)mm

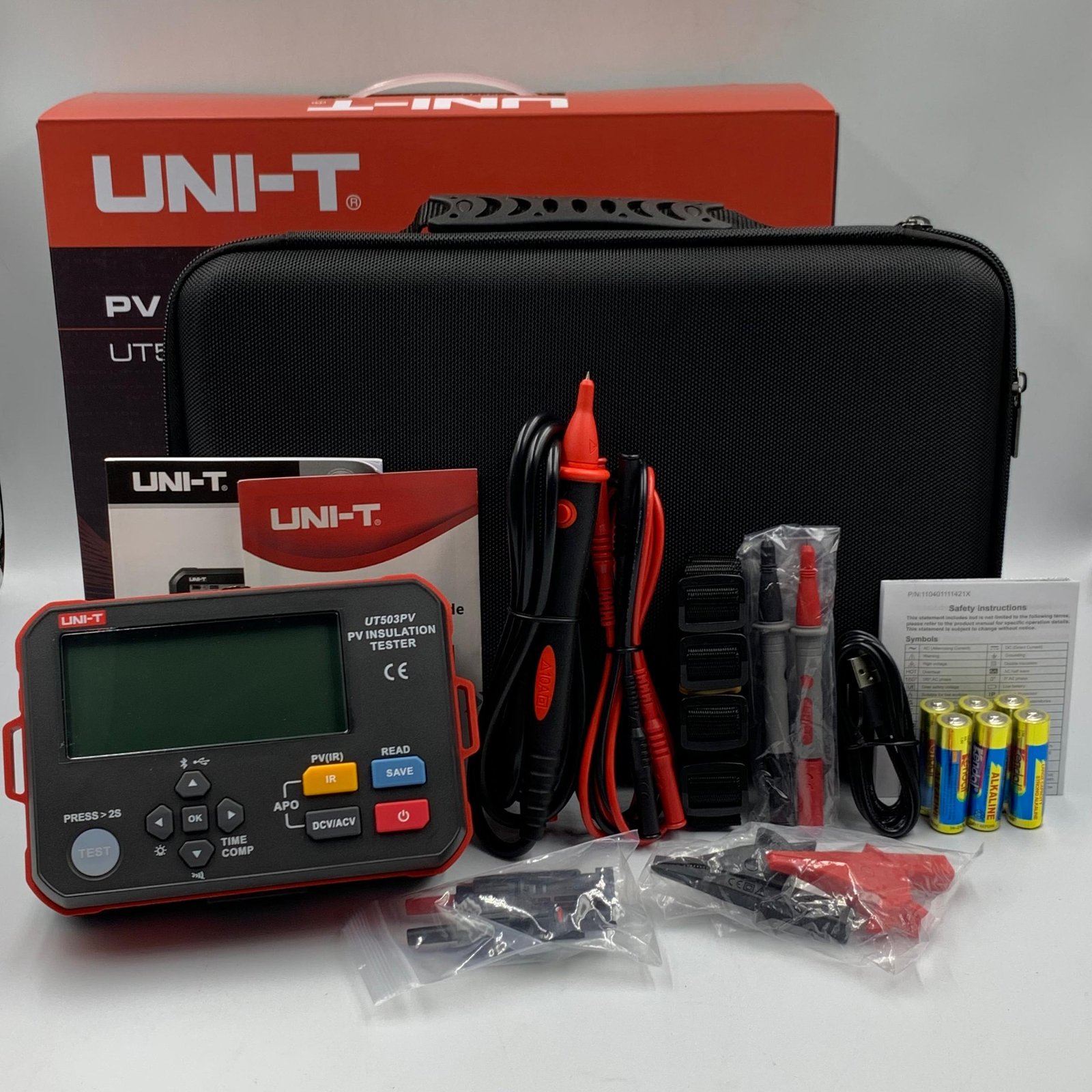

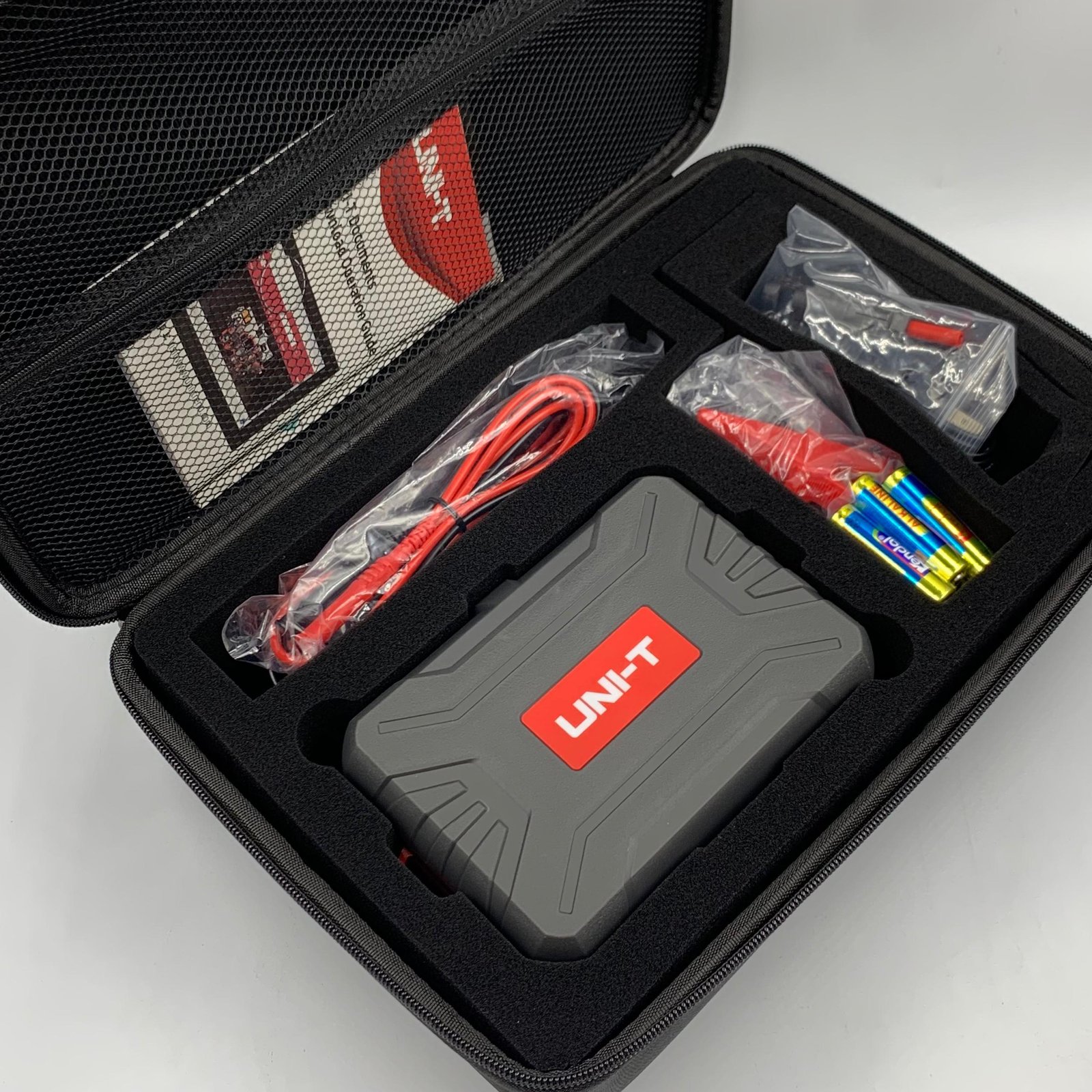

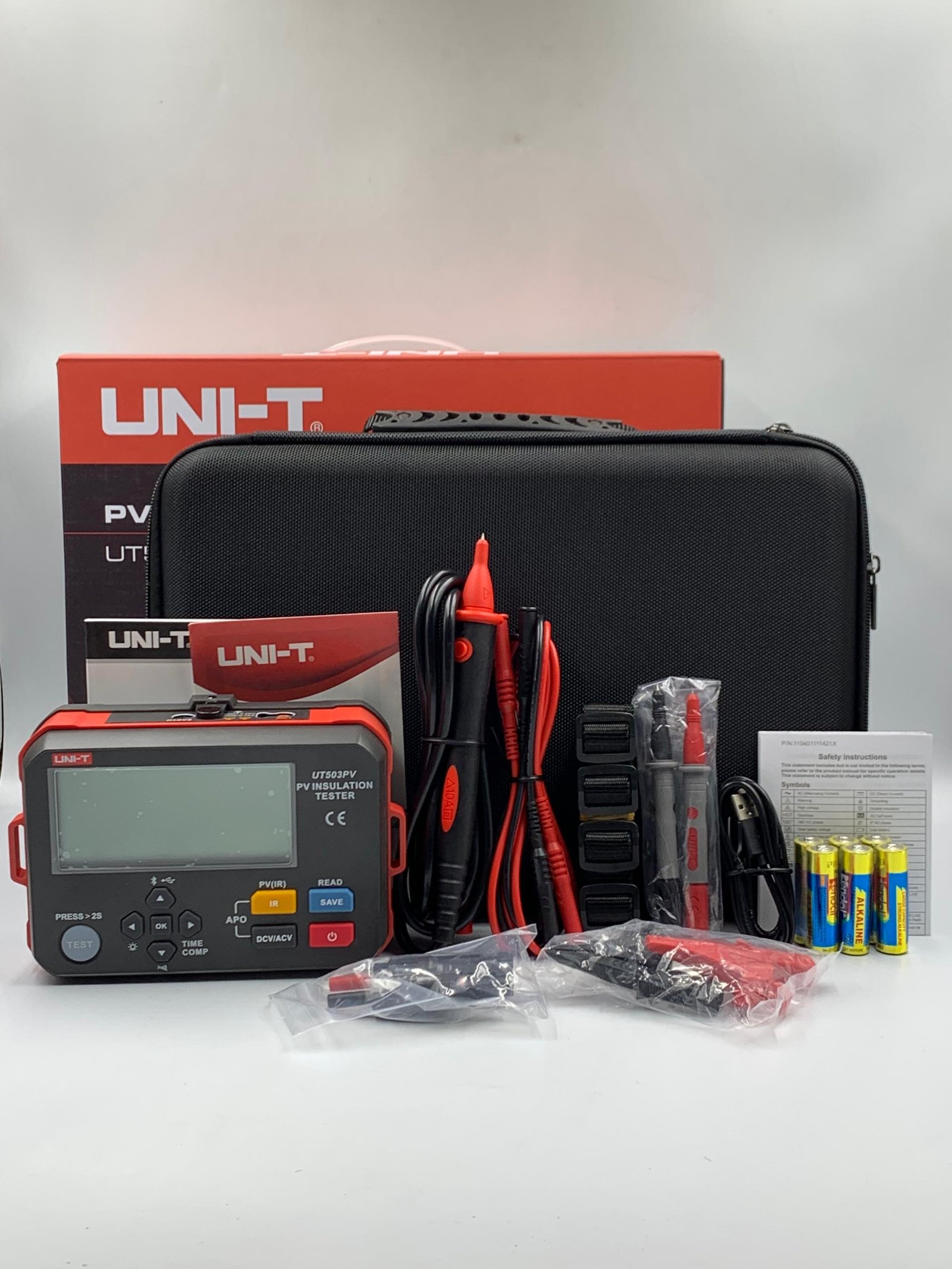

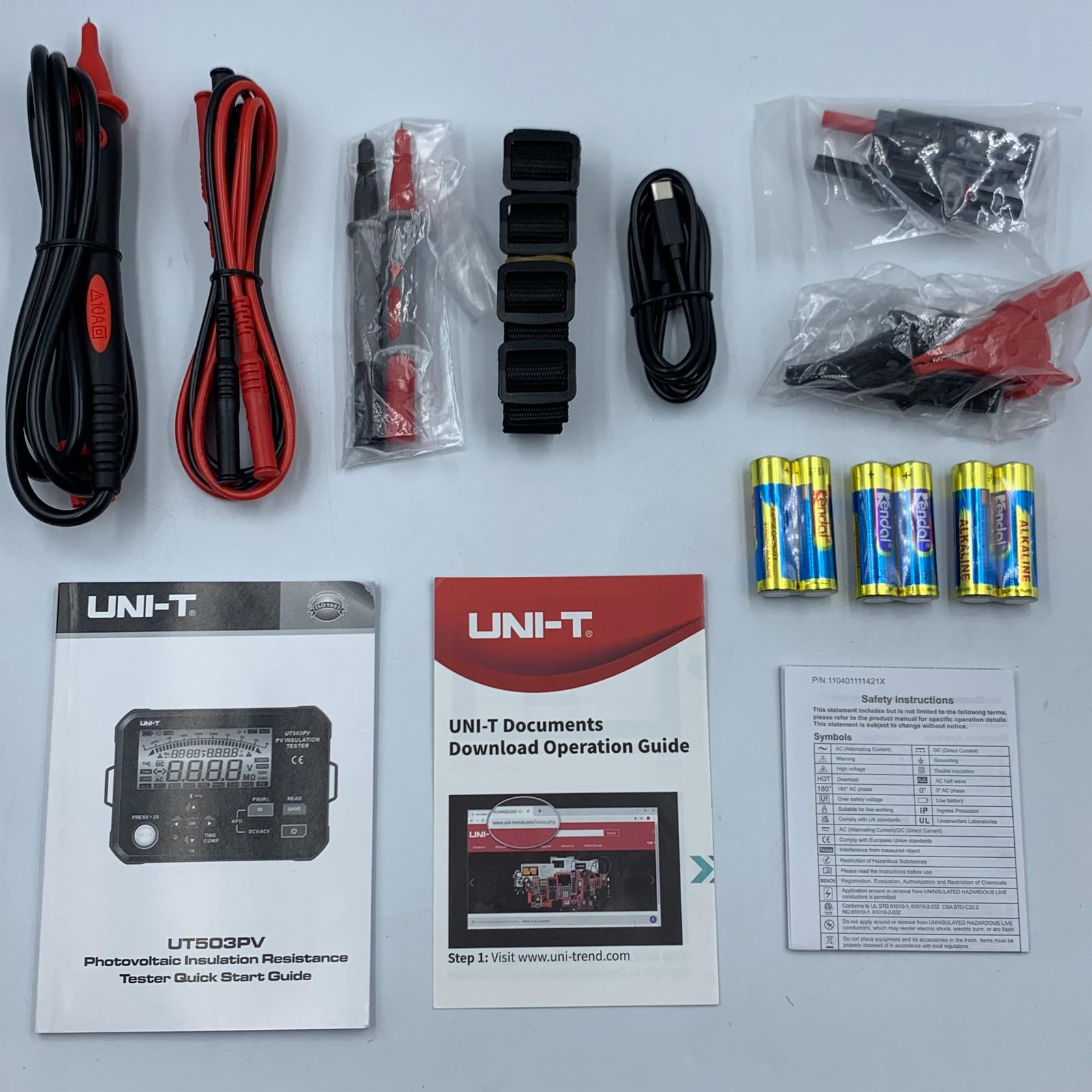

Accessories	1. Manual: 1pcs 2. Test lead line (1 black test line, 1 remote control test lead line): 2pcs 3. Lantern plug: 1pcs 4. Red/black alligator clip: 1 pair 5. Banana plug to MC4 plug test line: 1 pair 6. Type-C cable: 1 pcs 7. Strap: 1 pcs 8. LR6 AA alkaline Batteries: 6 pc 9. Charging stand (optional, model: UT-W13)

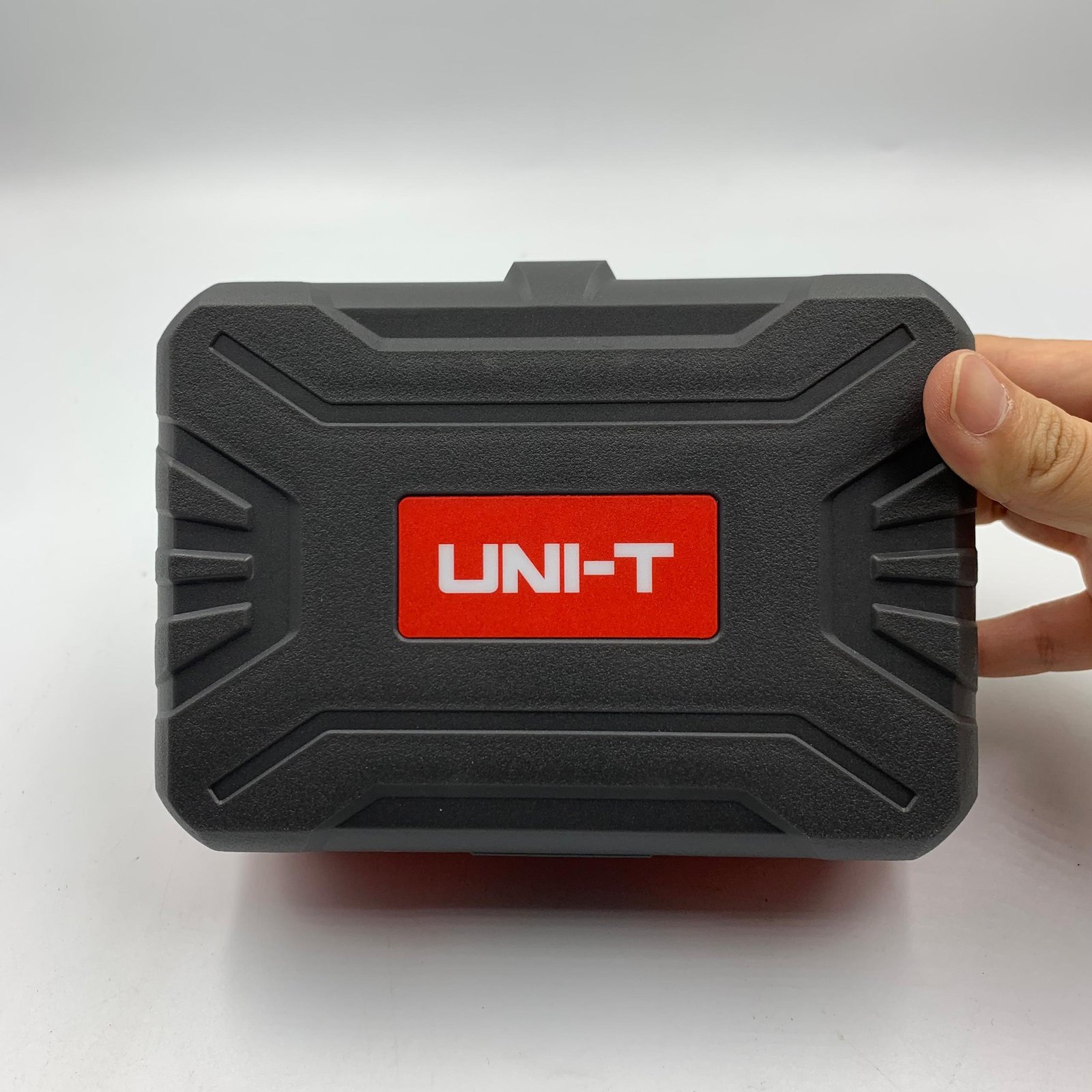

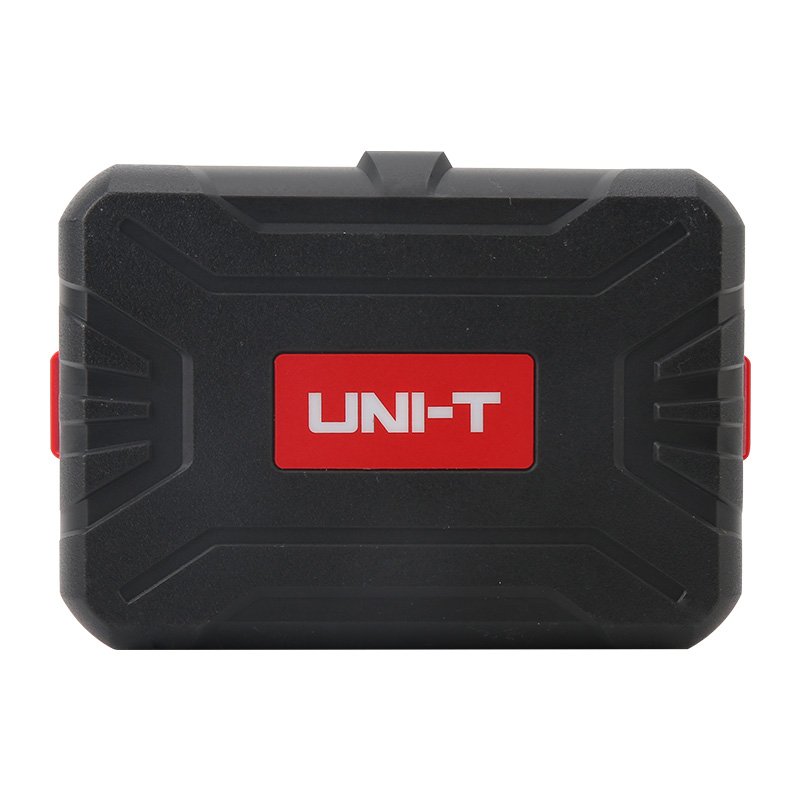

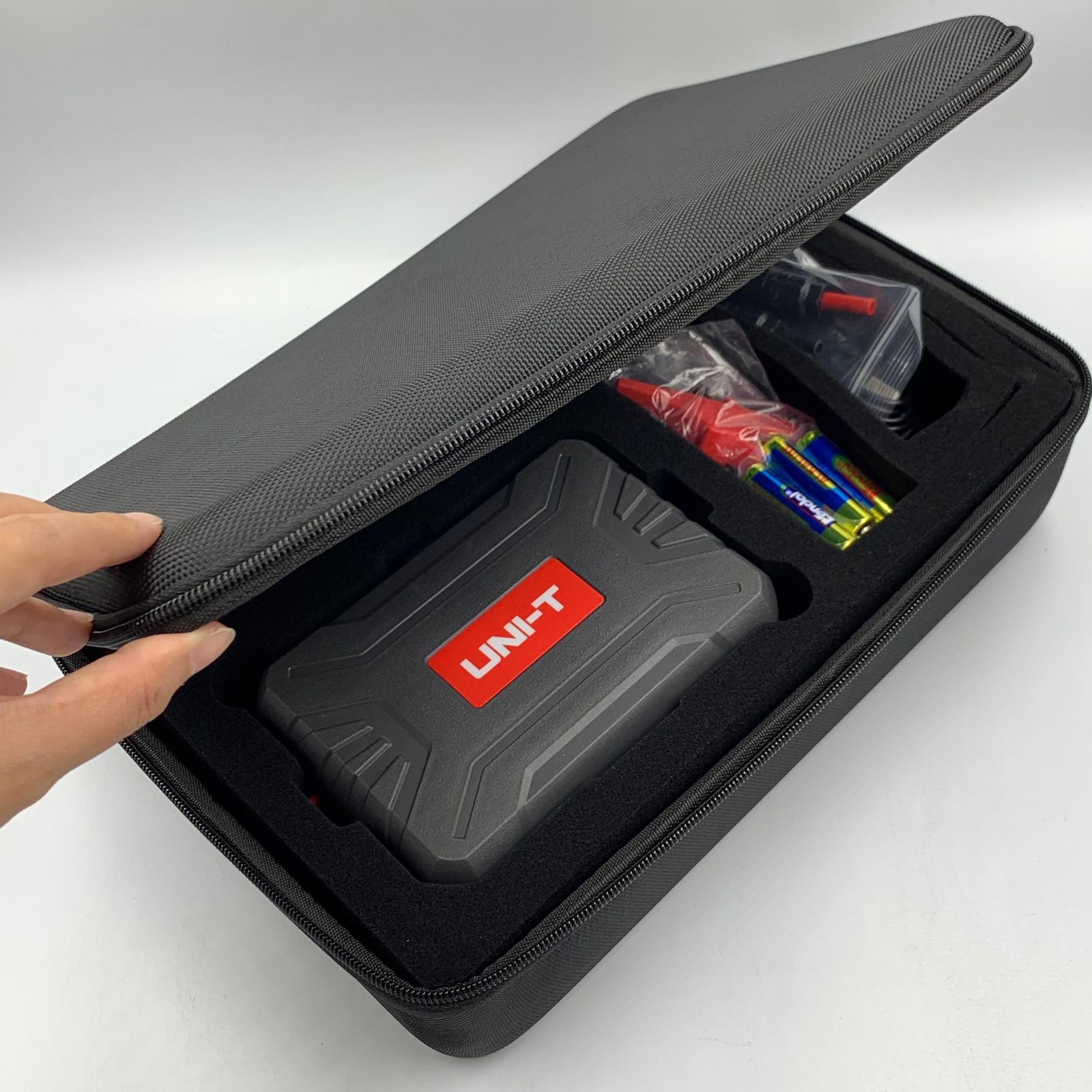

Standard package	case + carton
SPQ	2
Package Size	360×230×290mm
