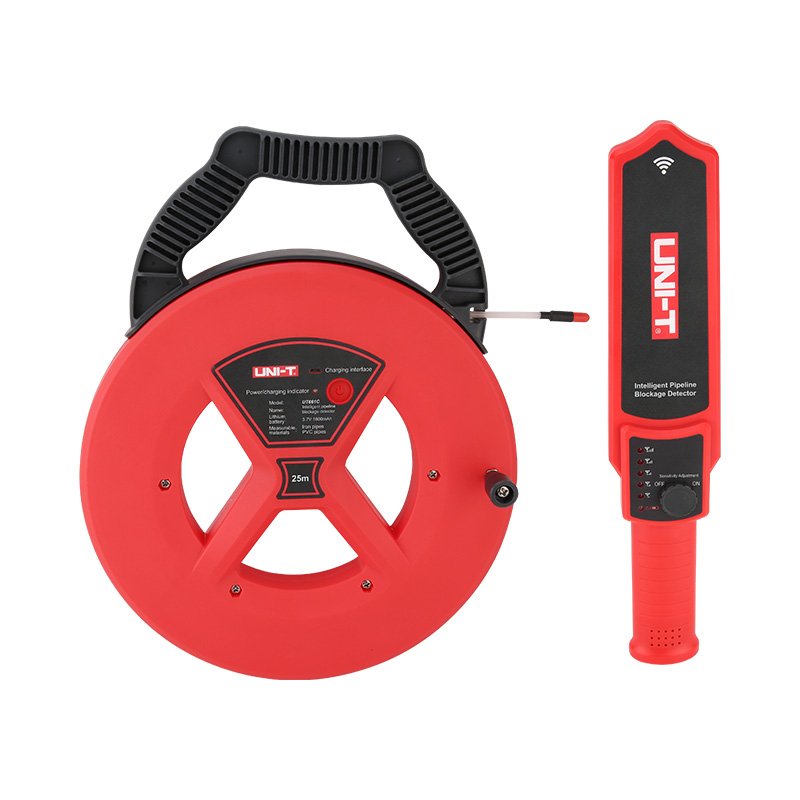

UNI-T UT661 Series Pipeline Blockage Detectors

● The location of the blockage in the pipe can be detected
● Measurable pipe material: plastic pipes, metal pipes

● Maximum detection distance(depth): 50cm
● Buzzing prompt and Flash prompt

Specifications of UNI-T UT661 Series Pipeline Blockage Detectors

Specifications	UT661C	UT661D
Transmitter	Yes	Yes
Signal wire	25m	35m

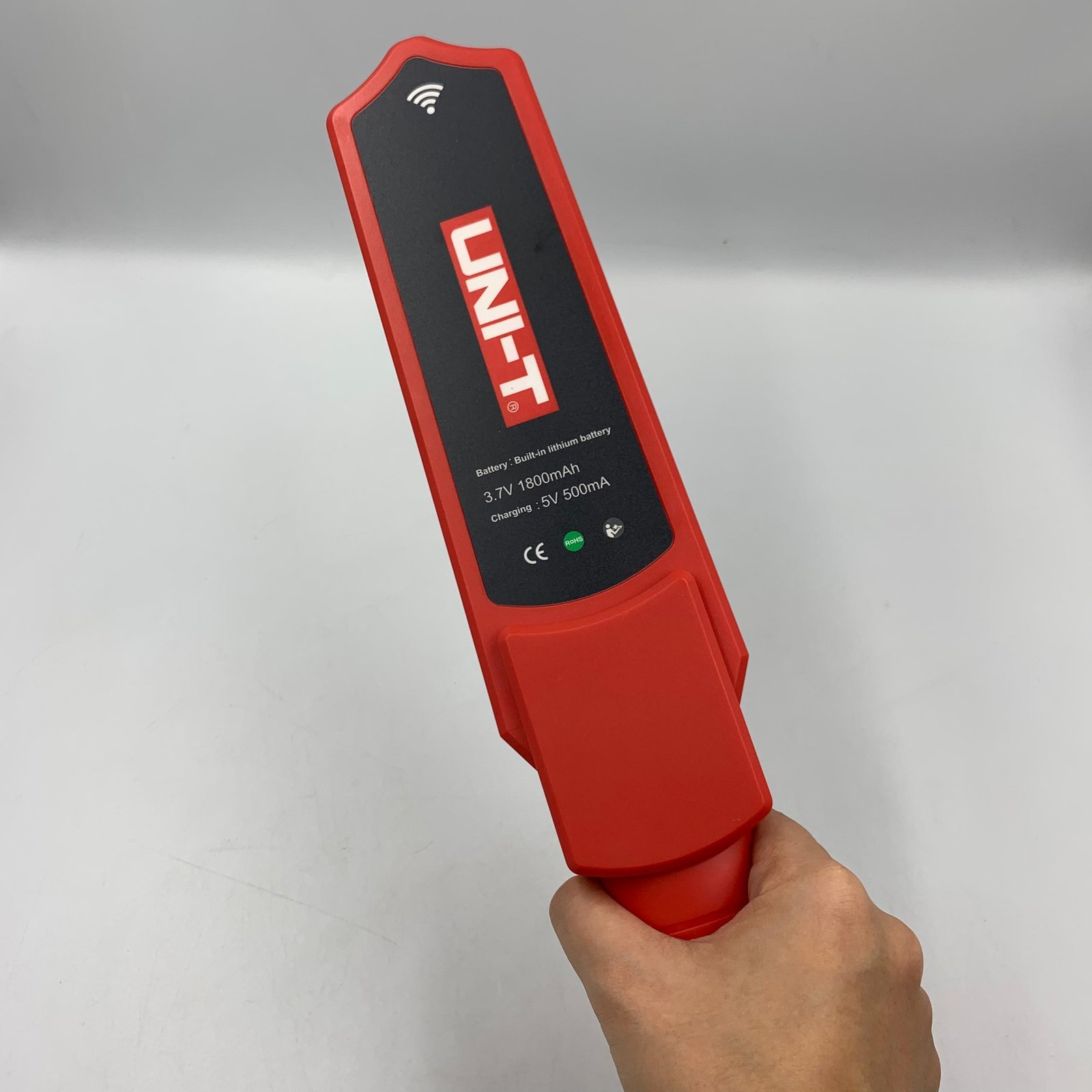

Receiver	Yes	Yes
Maximum detection distance（depth）	50cm	50cm
Transmitter current	Shutdown current: <2uA, working current: 230~310mA
Receiver current	Shutdown current: <2uA, standby current: <40mA Maximum working current: 150~450mA (Distance 1cm)
Charging current	450~550mA
Test the output sound at a distance of 1cm	>93dB
Test the output sound at a distance of 0.5m	>75dB
Battery duration	10 hours
Operting temperature and humidity	-20°C~60°C, 10~80%RH
Measurable pipe material	Plastic pipes, metal pipes
Buzzing prompt	Yes
Flash prompt	Yes
Low battery indication	Yes
Waterproof grade	Probe waterproof IP67
General Characteristics
Transmitter battery	Built-in lithium battery (3.7V 1800mAh)
Receiver battery	Built-in lithium battery (3.7V 1800mAh)
Color	Red and grey
Weight	Transmitter: 1.24KG Receiver: 0.26KG	Transmitter: 1.42KG Receiver: 0.26KG
External dimension	Tansmitter: 38x30x42mm Receiver: 40x38x80mm

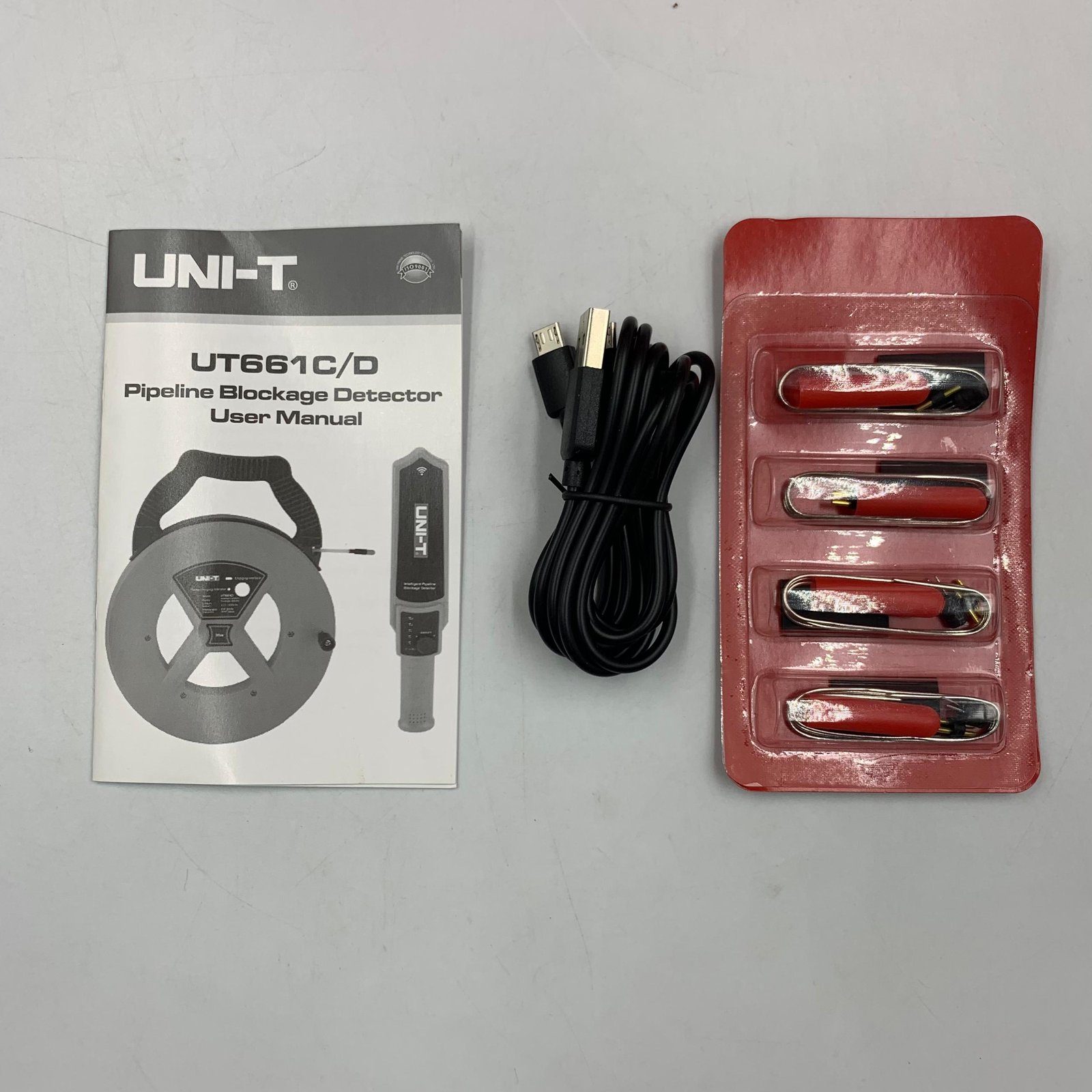

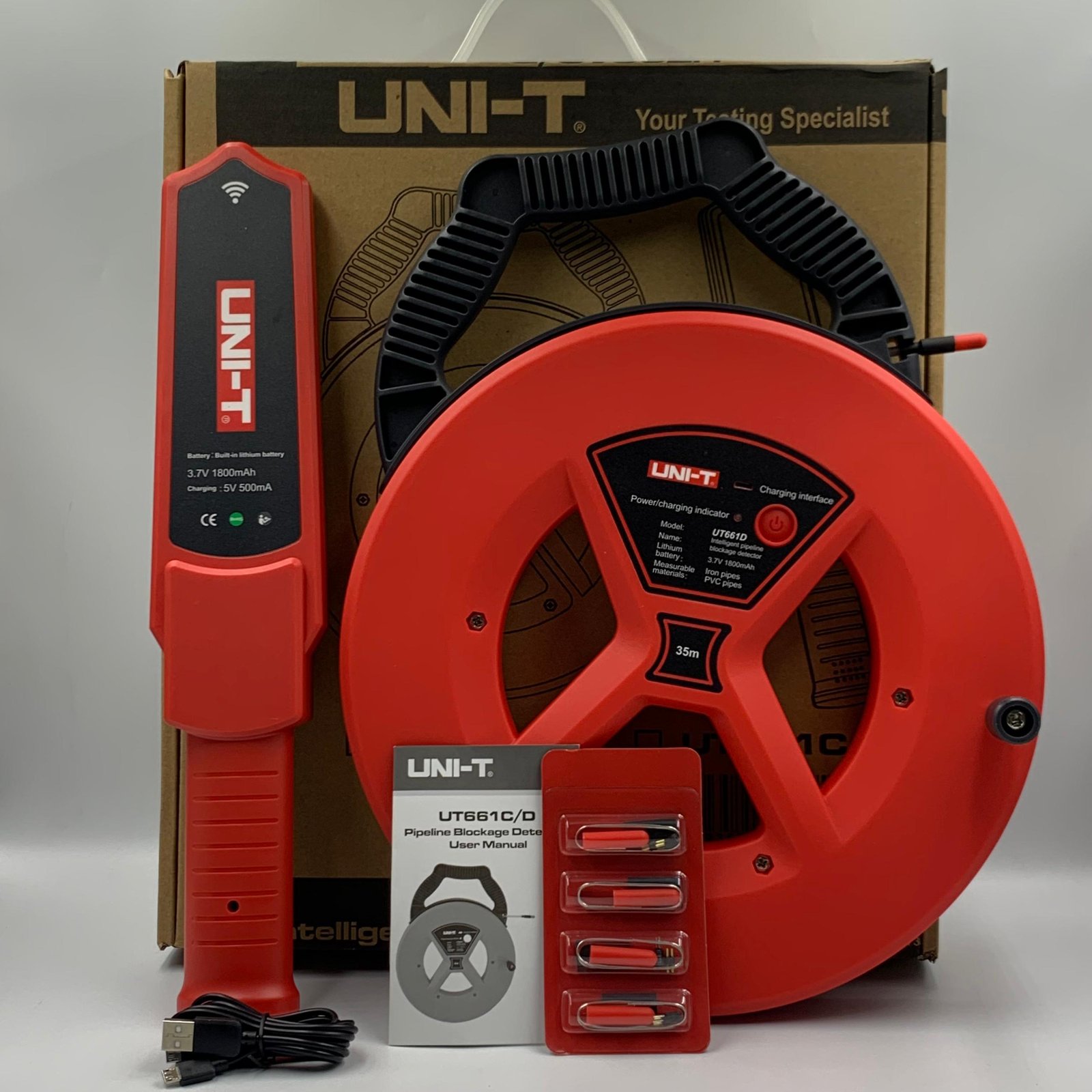

Standard accessories	Charging cable, Probe kit
Standard individual packing	Gift box, English manual, Warranty card
Standard quantity per carton	5pcs
Standard packing size	405x90x350mm

Product Catalog
- MODEL UNI-T UT661 Product Catalog (English)
Instruction Manual
- MODEL UNI-T UT661 Instruction Manual (English)
