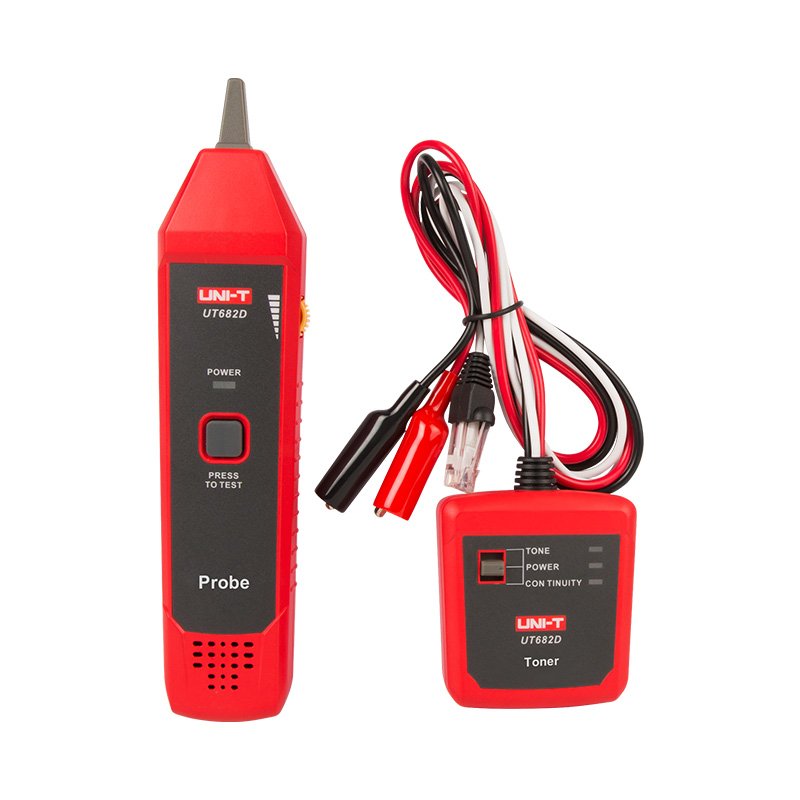

UNI-T UT682D SERIES WIRE TRACKER/TONE AND PROBE

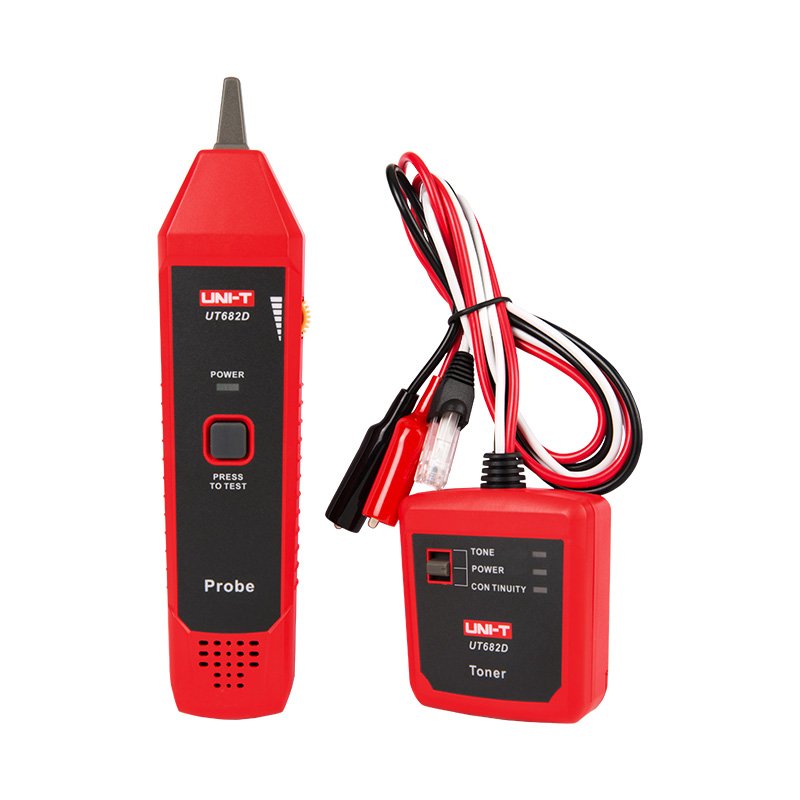

UNI-T UT682d Series Wire Tracker/tone And Probe

The UNI-T UT682D Series Wire Tracker and Tone & Probe is a versatile and reliable tool designed for efficient cable tracing and troubleshooting. With the ability to track telephone, Ethernet, and power cables, it is perfect for both professional technicians and DIY users. In addition, its DC level test function allows you to check voltage levels and polarity with ease. Moreover, it can verify Ethernet cable wiring sequences, ensuring proper network setup. Furthermore, the fast open/short circuit test significantly reduces diagnostic time. At the same time, the adjustable volume control and headset connection make it highly suitable for noisy environments. To top it off, the dual measurement cycle mode and low battery indication enhance convenience and reliability during extended use.

Tracks telephone, Ethernet, and power cables for versatile applications.
DC level test function to check voltage level and polarity accurately.
Ethernet cable wiring sequence verification, ensuring correct network configuration.
Fast open/short circuit test for quicker diagnostics.
Adjustable volume control for various working conditions.
Headset connection, allowing clear audio detection even in noisy environments.
Dual measurement cycle mode for operational flexibility.
Low battery indication, helping prevent downtime during work.

Specifications of UNI-T UT682d Series Wire Tracker/Tone and Probe

Specifications	Range		UT682	UT682D
Wire tracking features	Wire types		LAN cable\telephone line\coaxial cable\electric wire	Telephone line\twisted- pair\electric wire
	Indication light for signal strength		√
	Live switchboard wire tracing		√
	Switchboard wire tracing distance		≥100m
	Telephone lines tracking distance		≥3000m	≥3000m
	Unshielded cables tracking distance		≥320m
	Shielded cables tracking distance		≥320m
	Open and short circuit test		√
	Polarity indication for telelphone lines	DCV function, range: ±(5V~52V)	√	√
	Telephone lines and LAN cables distinction	Jacks distinction	√	√
	Broken wire tracking		√
	Transmitter output voltage		≥12V peak-peak	8V DC with a new battery
	Transmitter low battery indication		6.6V±0.5V
	Transmitter power supply	9V battery	√	√
	Max transmitter working current		25mA
	Headphone jack for receiver		√
	Receiver power supply	9V battery	√	√
	Max receiver standby current	~10mA	√	√
	Max receiver operating current	<40mA (AC, RMS)	√	√
Wire alignment	Line sequence measurement	9 LEDs (LED1~LED8, LED_G)	√
	Line sequence measuring speed	Fast and slow selectable	√
	LAN cable: shielded/unshielded indication		√
Transmitter input voltage protection			52V DC	60V DC
Operating environment	Operating temperature: 0~40℃; Storage temperature: -10~50℃ Operating humidity: 20~75%RH; Storage humidity: 10~90%RH; Altitude: ≤2000m
General Characterisitics
Product color	Red and grey
Product net weight	UT682: Transmitter-125g, receiver-153g; UT682D: Transmitter-150g, Receiver-130g
Product size	UT682: Transmitter-125mm x 48mm x 28mm, receiver-195mm x 48mm x 30mm UT682D: Transmitter-74mm x 68mm x 28mm, receiver-208mm x 47mm x 33mm
Standard accessories	9V battery x 2, RJ11 cable (UT682), RJ45 cable (UT682), RJ11 cable with alligator clips (UT682)
Standard individual packing	Blister (UT682), carrying bag (UT682), gift box (UT682D), English manual
Standard quantity per carton	UT682: 24pcs; UT682D: 20pcs
Standard carton measurement	UT682: 575mm x 310mm x 430mm; UT682: 425mm x 265mm x 260mm
Standard carton gross weight	UT682: 12.3kg; UT682D: 7.5kg
