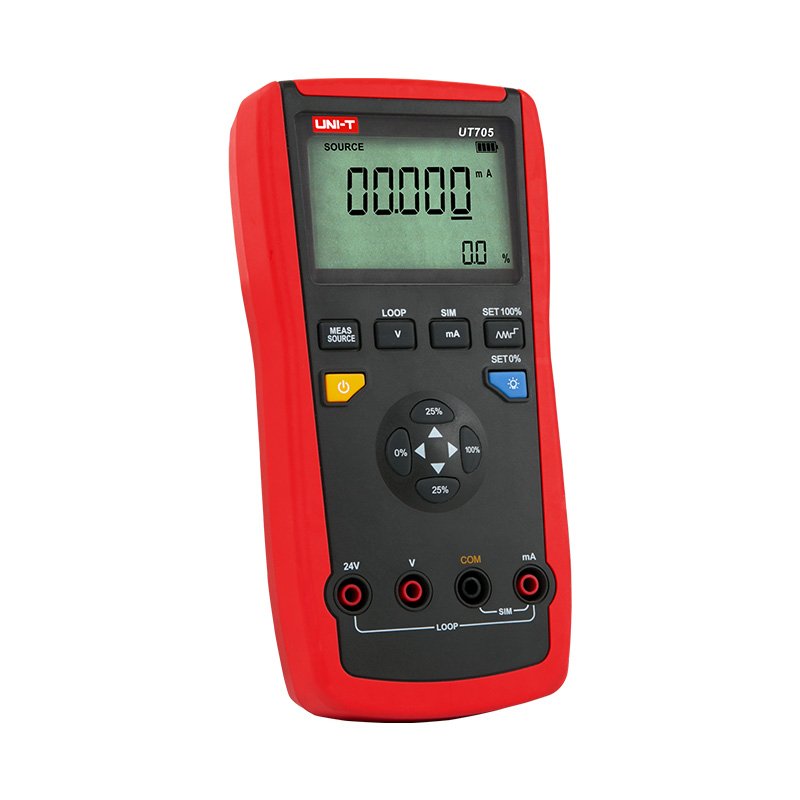

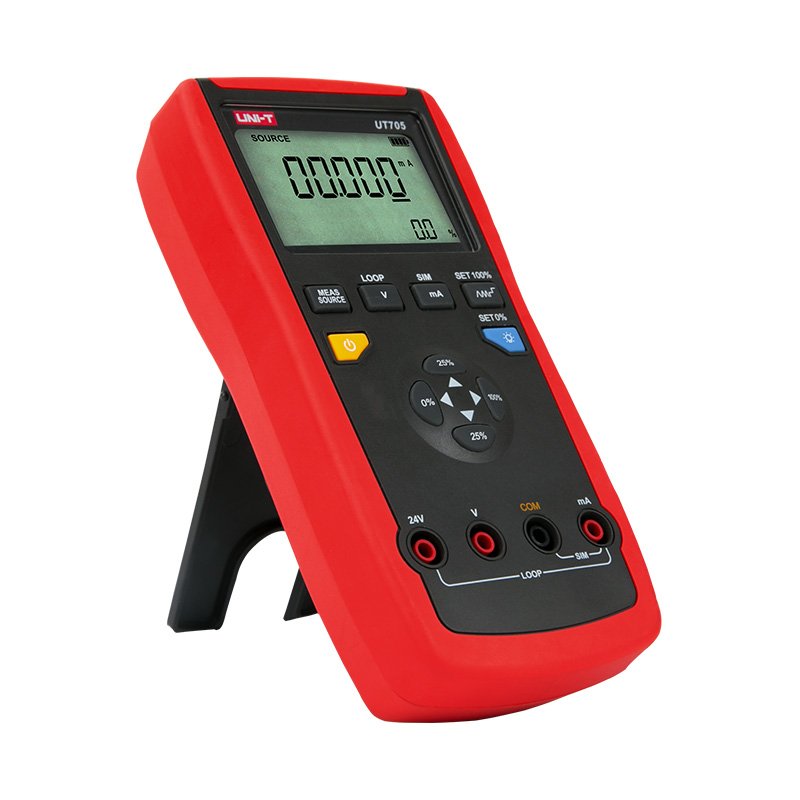

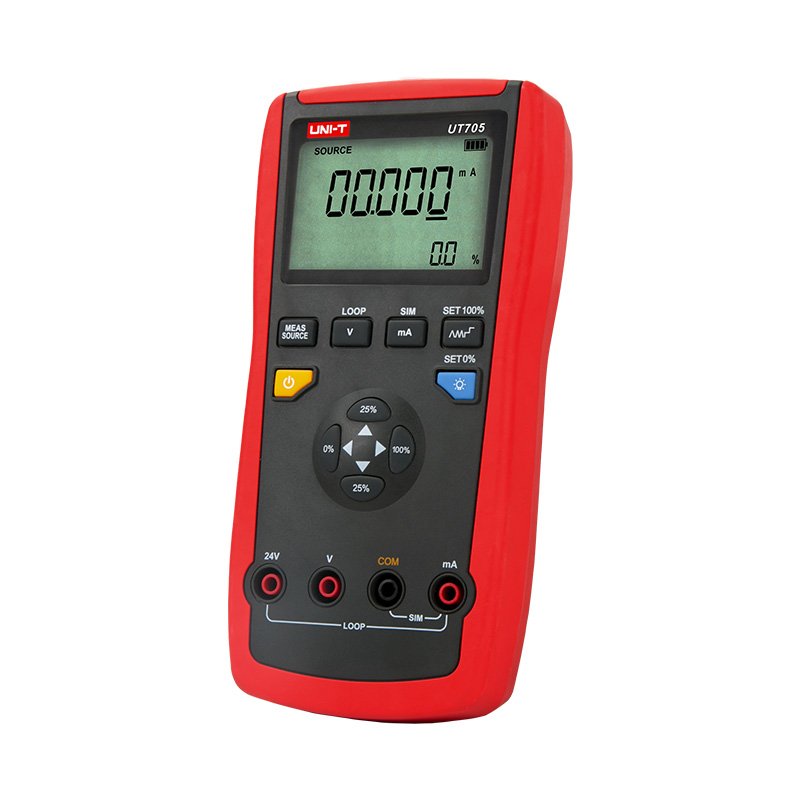

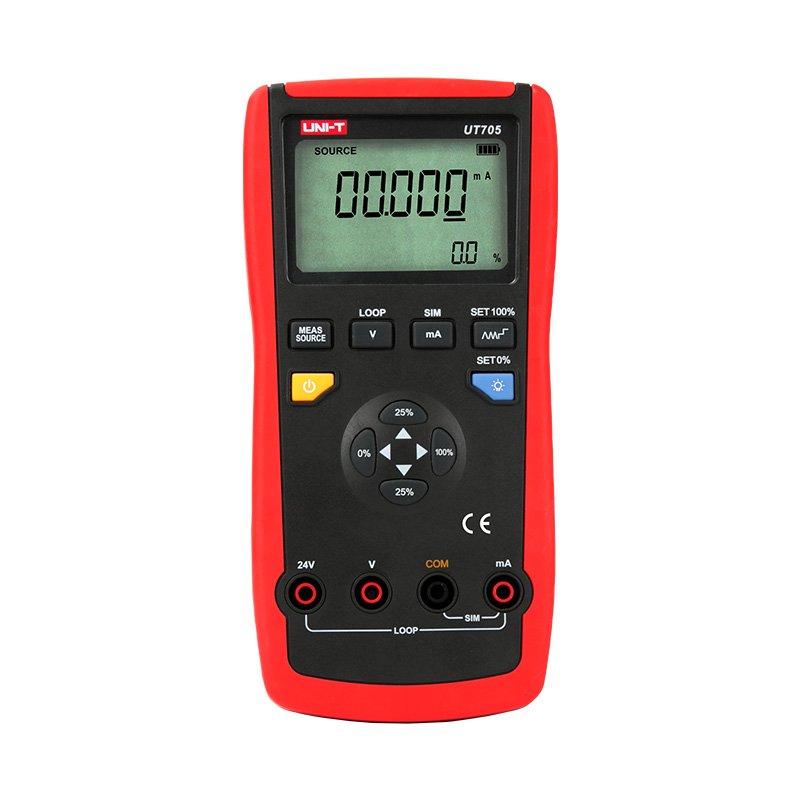

UNI-T UT705 SINGLE FUNCTION LOOP CALIBRATOR

WhatsApp

Overview of UNI-T UT705 Single Function Loop Calibrator

The UNI-T UT705 Single Function Loop Calibrator is a professional-grade instrument designed for precise testing, measurement, and calibration in industrial and field applications. With automatic ramp functionality for DC current output, as well as manual and automatic stepping or ramping output, it delivers flexibility for various calibration needs. In addition, it can store and recall setups, thereby saving valuable time during repetitive tasks. Moreover, this calibrator ensures highly accurate measurements, making it an ideal tool for technicians and engineers.

  • Automatic ramp for DC current output, ensuring smooth and consistent signal changes.

  • Manual or automatic stepping and ramping output, providing versatile control options.

  • Stores and recalls setups, allowing faster repeat measurements.

  • Measures DC voltage, DC current, and 4-20mA loop current for wide application use.

  • Output functions include DC current, analog transmitter, and 24V loop supply.

  • Up to 0.02% accuracy in current measurement while maintaining stable performance.

Specifications of UNI-T UT705 Single Function Loop Calibrator

Specifications Range UT705
Measure accuracy
DC voltage (V) 30.000V ±(0.02+2)
DC current (A) 24.000mA ±(0.02+2)
Loop current 24.000mA ±(0.02+2)
Source accuracy
DC current (source) 24.000mA ±(0.02+2)
DC current (simulate) 24.000mA ±(0.02+2)
Features
Loop power function Voltage: 24V
Accuracy: 10%
Ramp functions Source functions: Voltage, resistance, temperature
Ramps: Slow ramp, fast ramp, 25% step-ramp
Step functions Source functions: Voltage, resistance, temperature
Steps: 25% of range, 100% of range
General Characteristics
Power 9V battery (6F22)
Display 63mm x 40mm
Product color Red and grey
Product net weight 410g
Product size 96mm x 193mm x 47mm
Standard accessories Test leads, battery
Standard individual packing Gift box, English manual, cloth bag
Standard quantity per carton 5pcs
Standard carton measurement 325mm x 225mm x 285mm
Standard carton gross weight 4.5kg
