UNI-T UTI120T POCKET-SIZED THERMAL CAMERA

WhatsApp

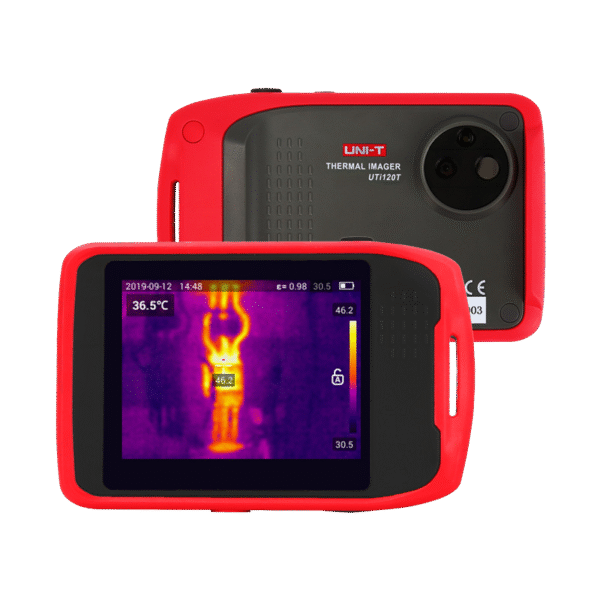

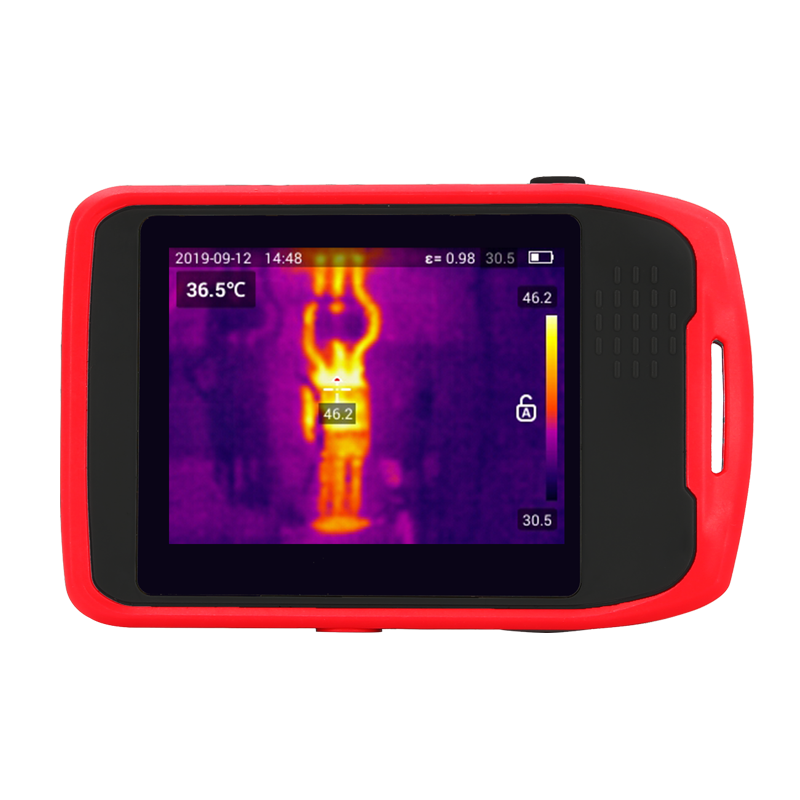

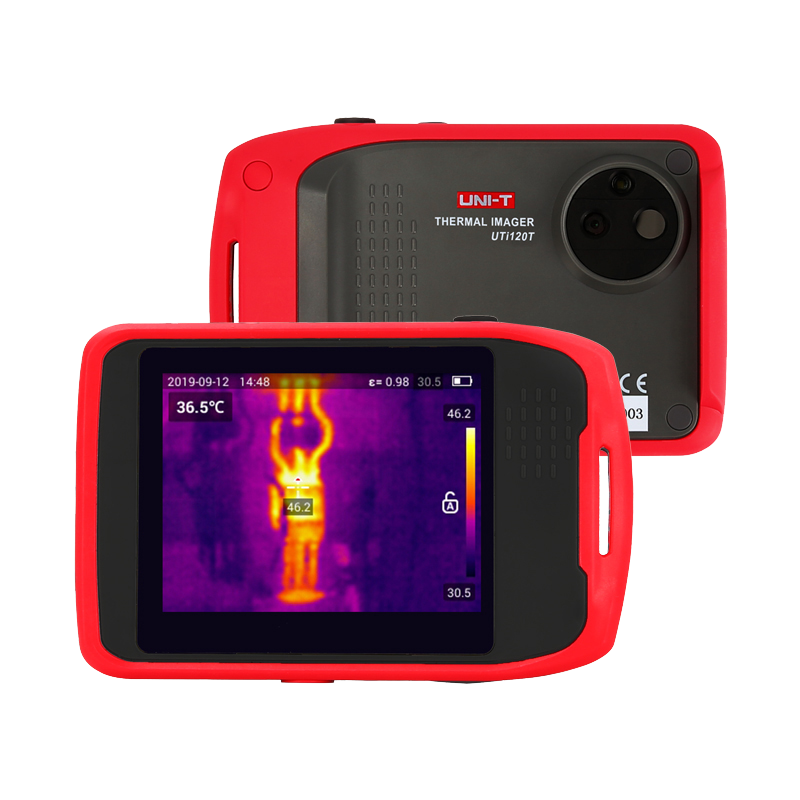

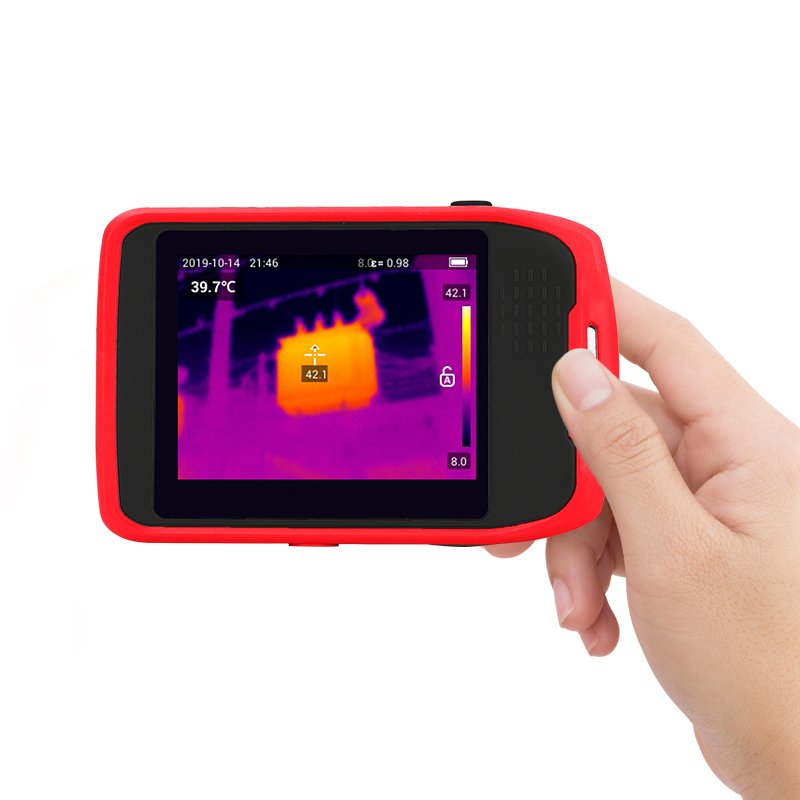

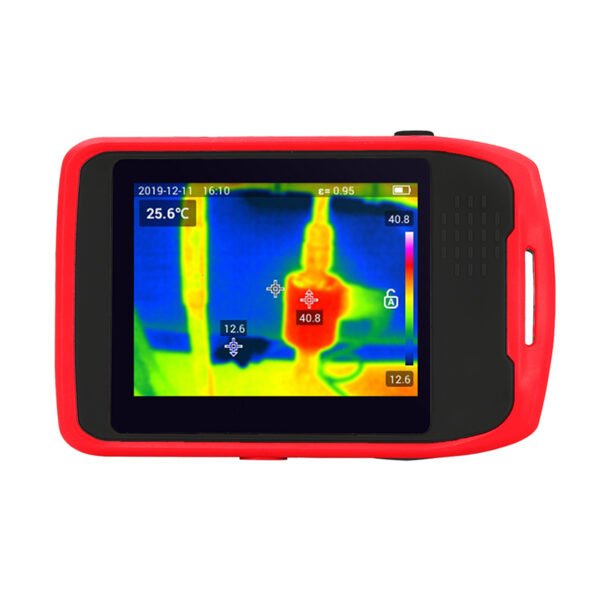

UNI-T UTI120T Pocket-sized Thermal Camera

  • Compact and portable

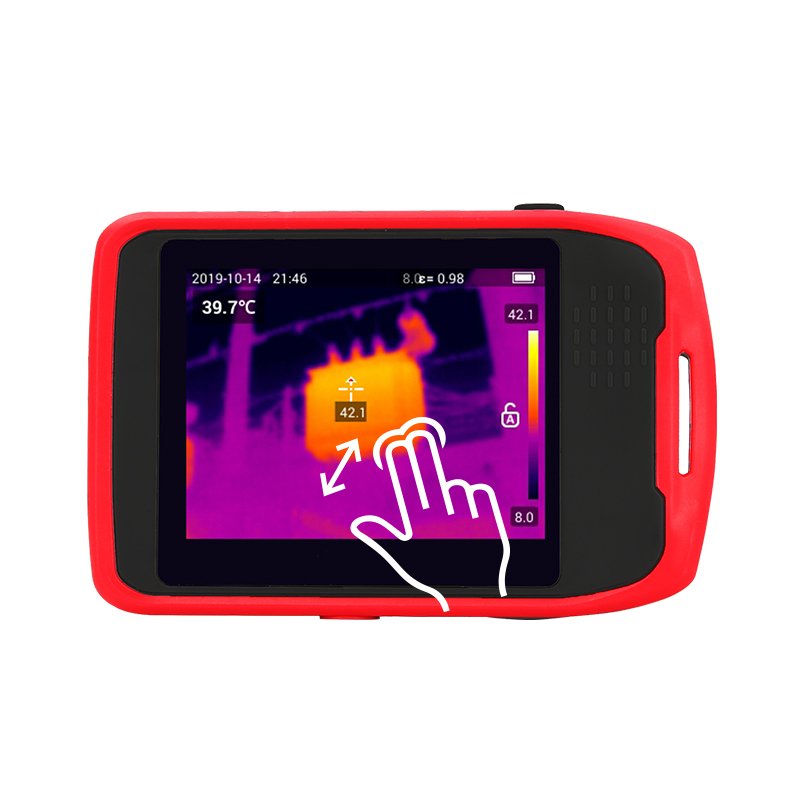

  • 5” TFT touch screen (320×240 Pixels)
  • IR resolution: 120×90
  • Temperature measurement range: -20℃ to 400℃ / -4℉ to 752 ℉
  • On screen analyzer: 1 Point /1 Rectangle
  • Auto alarm for high/low temperature
  • Auto tracking for hot spot/cold spot
  • Image capture
  • Image modes: Thermal, Fusion, Visual Image,PIP
  • Digital camera resolution: 640×480
  • Digital zoom: 1.0~8x (Continuous Zoom)
  • Color palettes: 6(White hot, Black hot, Ironbow, Hot iron, Arctic,Medical)
  • LED flashlight
  • PC Software analysis)
  • Wi-Fi connection through Mobile APP
  • USB rechargeable Li-ion battery
  • 1/4” tripod mounting hole
  • IP54
  • 1m drop proof



Specifications of UNI-T UTI120T Pocket-sized Thermal Camera

Technical Data
IR resolution (Pixels) 120×90
Display 3.5” TFT Touch (320×240)
Field of view(FOV) 50°×38°
Thermal sensitivity(NETD) ≤60mK
Spatial resolution(IFOV) 7.6mrad
Frame rate ≤25Hz
Spectral range 7.5~14µm
Focus Focus Free
Temperature measurement range  -20℃~400℃
Accuracy ±2℃ or ±2% whichever is greater
Emissivity 0.01~1.00 adjustable (0.95 default)
Functions
Color palettes 6
(White hot, Black hot, Ironbow, Hot iron, Arctic,Medical)
Image modes Thermal,Visual image,Fusion,PIP
On screen analyzer 1 Point/1 Rectangle
Digital camera resolution 640×480
Digital zoom 1.0~8× continuous
Hi/Lo temperature alarm Icon,LED flashlight
PC software analysis √
Wi-Fi √
General Characteristics
Battery Fixed Li-ion battery (3.7V 5000mAh)
Battery operation time  ≥2 hours (with Wi-Fi off)
USB Type-C
IP rating IP54
Drop proof 1m
Storage 4GB Internal
Image/Video storage format JPEG
Certificates CE,FCC,RoHS
Product net weight 212g
Product size 205mm×124mm×65mm
Packing Details
Standard accessories Hand strap, Carrying Bag, Micro SD card, Type-C USB cable, English manual, Documents download operation guide card
Standard individual packing Gift box
Standard Qty per carton 5
Standard carton size 370mm×250mm×170mm
Standard carton G.W. 3.6kg
