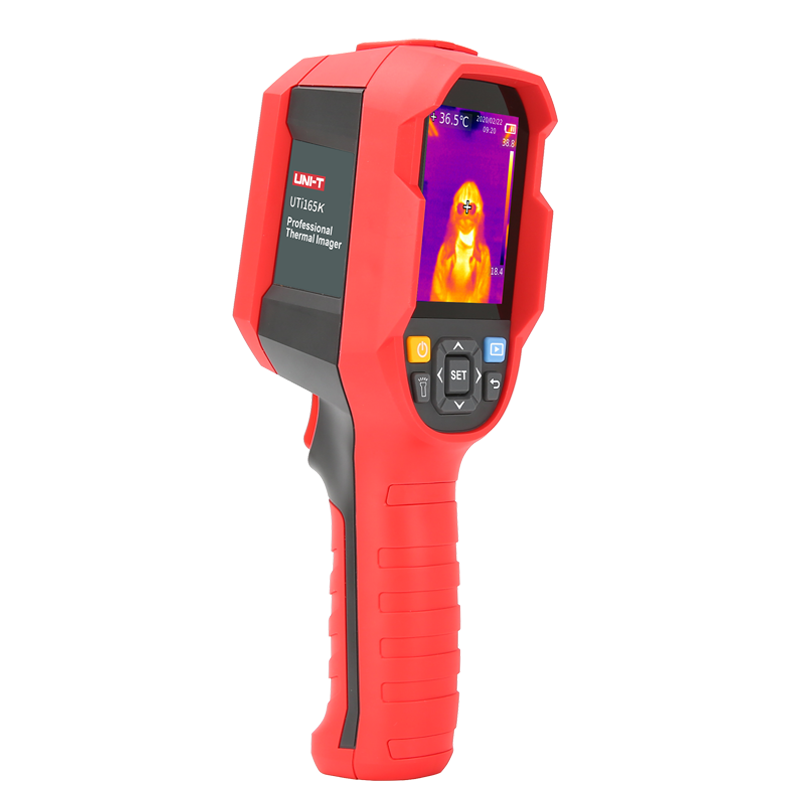

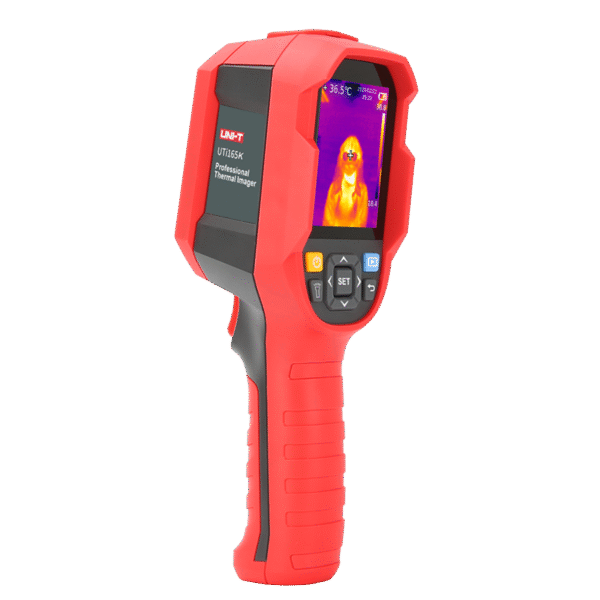

UTi165K 4
batch WhatsApp Image 2021 12 30 at 9.29.12 PM 1
UNI-T UTI165K EST THERMAL CAMERA
batch WhatsApp Image 2021 12 30 at 9.29.11 PM

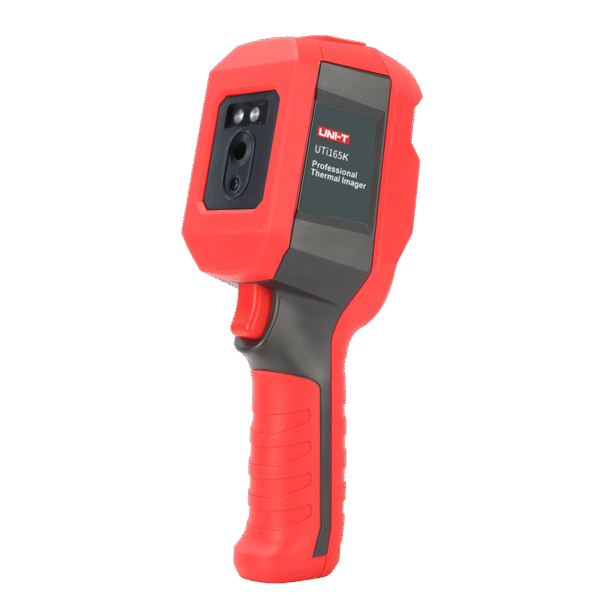

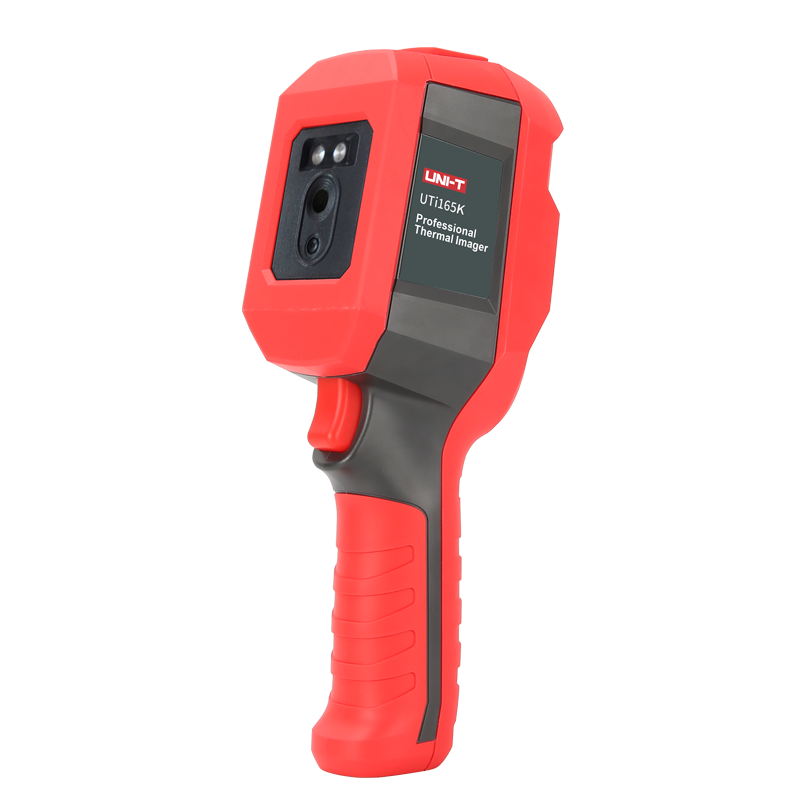

UTi165K 10

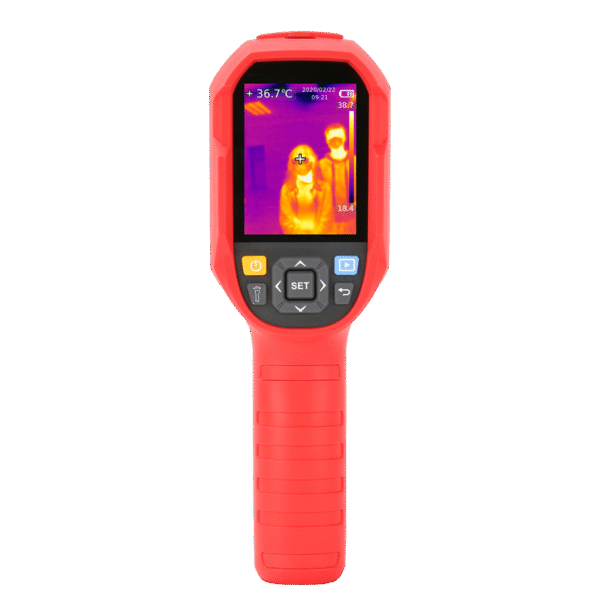

UTi165K 1

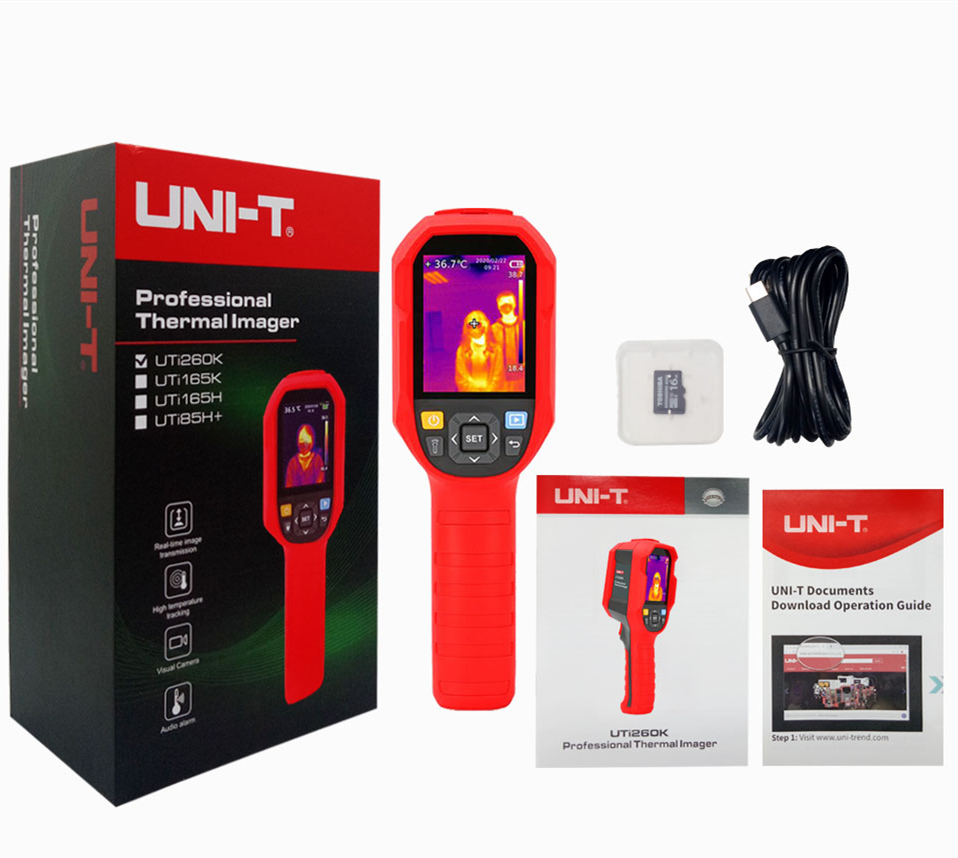

UTi165K 7

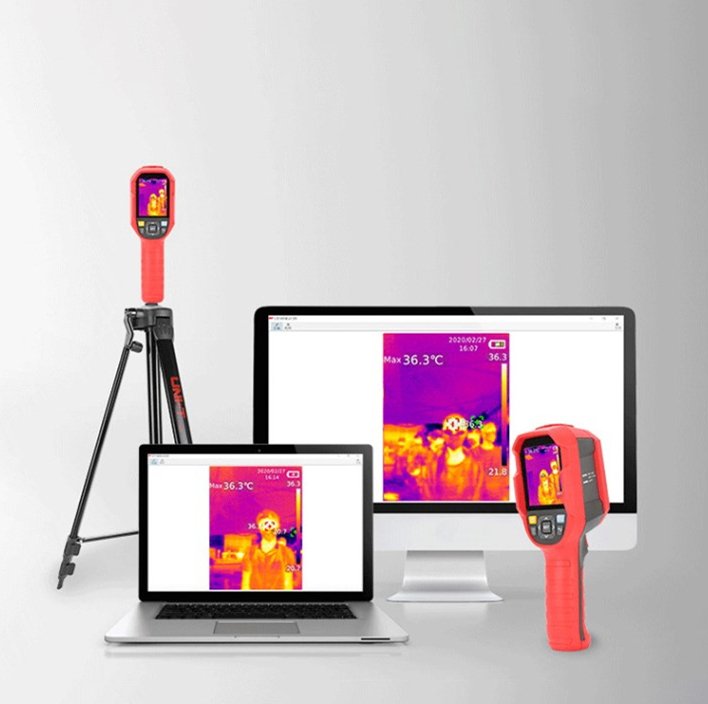

UTi165K detail 2
UTi165K 4
batch WhatsApp Image 2021 12 30 at 9.29.12 PM 1
UNI-T UTI165K EST THERMAL CAMERA
batch WhatsApp Image 2021 12 30 at 9.29.11 PM
UTi165K 10
UTi165K 1
UTi165K 7
UTi165K detail 2

UNI-T UTI165K EST THERMAL CAMERA

WhatsApp

UNI-T UTI165K Est Thermal Camera

  • Durable and user-friendly
  • IR resolution: 160×120
  • 8” TFT display screen (320×240 Pixels)
  • Temperature measurement range: 30℃ to 45℃
  • Auto alarm for high temperature
  • Image modess: Thermal,Visual image,Fusion
  • Color palattes: 7(Ironbow, Rainbow, White hot, Black hot, Red hot, Lava, Rainbow HC)
  • PC software analysis
  • Real-time image projection
  • RIO
  • LED flashlight
  • Rechargeable Li-ion battery
  • 1/4” tripod mounting hole



Specifications of UNI-T UTI165K Est Thermal Camera

Technical Data
IR resolution (Pixels) 160×120
Display 2.8”TFT LCD (320×240)
Field of view(FOV) 56°×42°
Thermal sensitivity(NETD) ≤50mk
Spatial resolution(IFOV) 6.1mrad
Frame rate ≤9Hz
Spectral range 8~14µm
Focus Focus Free
Temperature measurement range 30℃~45℃ (86℉-113℉)
Accuracy ±0.5° (@25˚C ambient temperature)
Emissivity 0.01~1.00 adjustable (0.95 default)
Functions
Color palettes 7
(Ironbow, Rainbow, White hot, Black hot, Red hot, Lava, Rainbow HC)
Image modes Thermal,Visual Image,Fusion
On screen analyzer 3 Points
Digital camera resolution 640×480
Hi/Lo temperature alarm Icon,LED flashlight
Software analysis PC
General Characteristics
Battery Fixed Li-ion battery (3.6V 5000mAh)
Battery operation time  ≥ 6 hours
USB Type-C
Storage 32G Micro SD card
Image/Video storage format BMP
Certificates CE,FCC,RoHS
Product net weight 910g
Product size 236mm×75.5mm×86mm
Packing Details
Standard accessories Type-C USB cable, Micro SD card, English manual
Standard individual packing Gift box
Standard Qty per carton 10pcs
Standard carton size 500mm×315mm×295mm
Standard carton G.W. 2.2kg
Instruction Manual
