UNI-T UTI716S COST-EFFECTIVE THERMAL CAMERA

Name: KL Amazon - Kyoritsu Fluke Uni-T Multimeter Supplier
Address: 553, Jalan Kwan Tung, Kampung Sungai Chua, Kajang, 43000, MY
Telephone: +60163776793

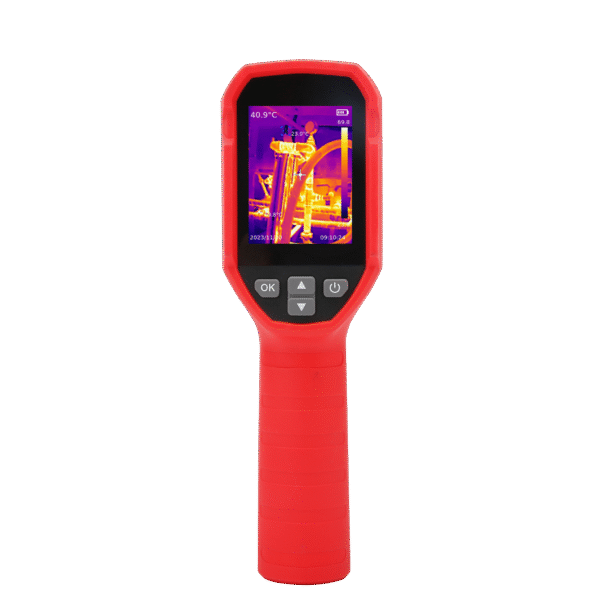

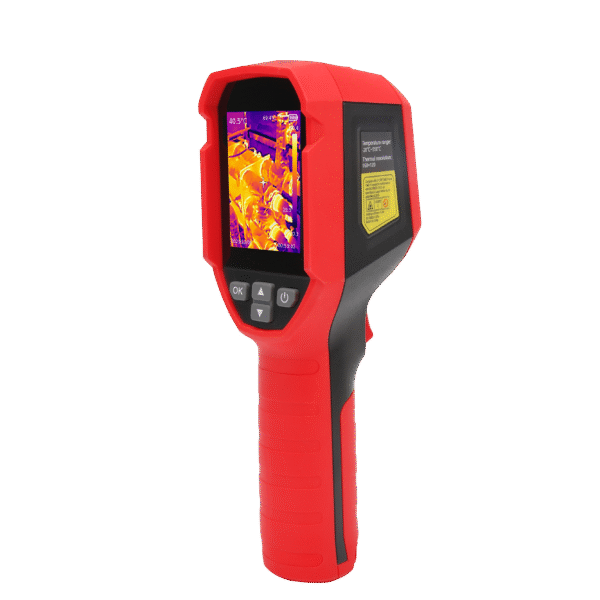

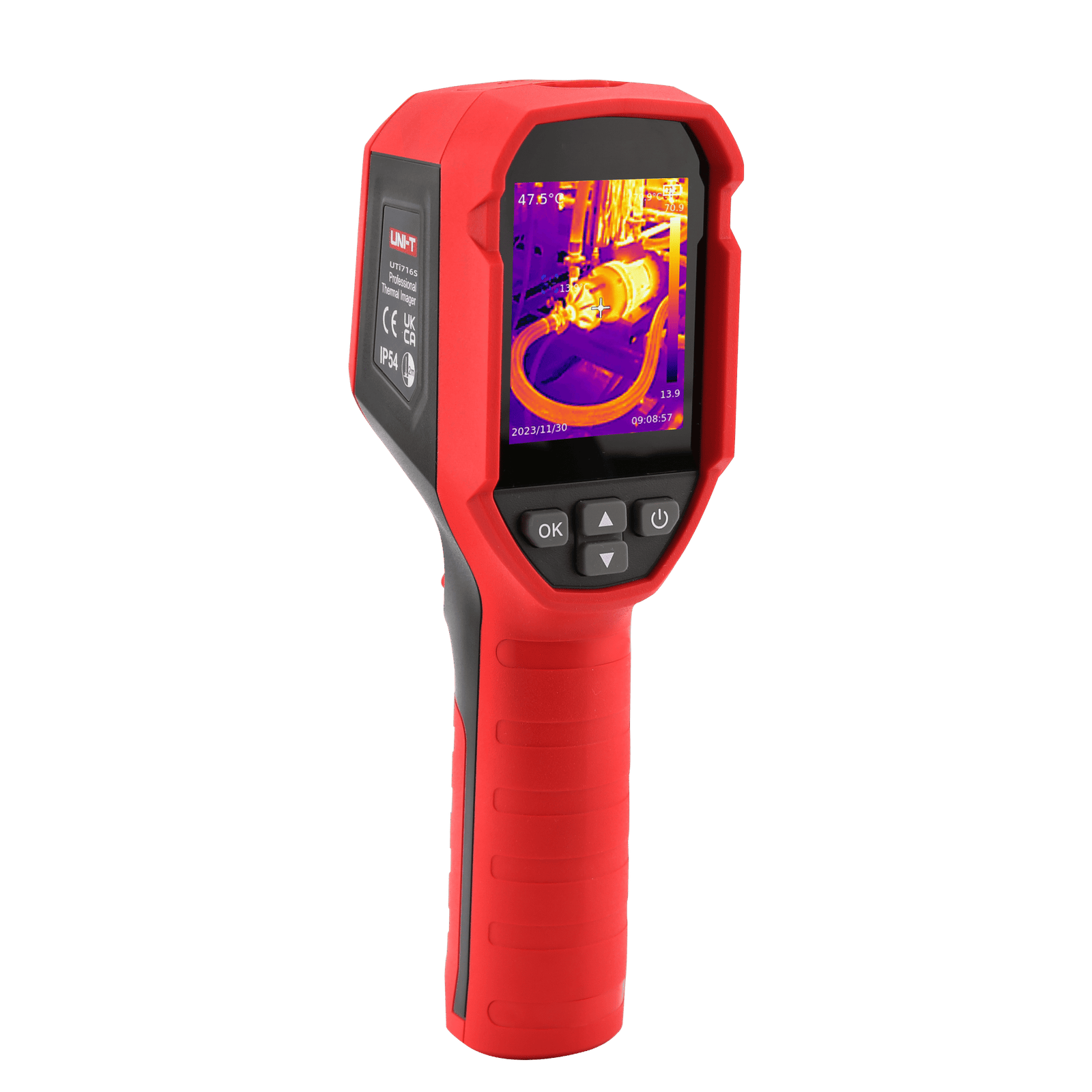

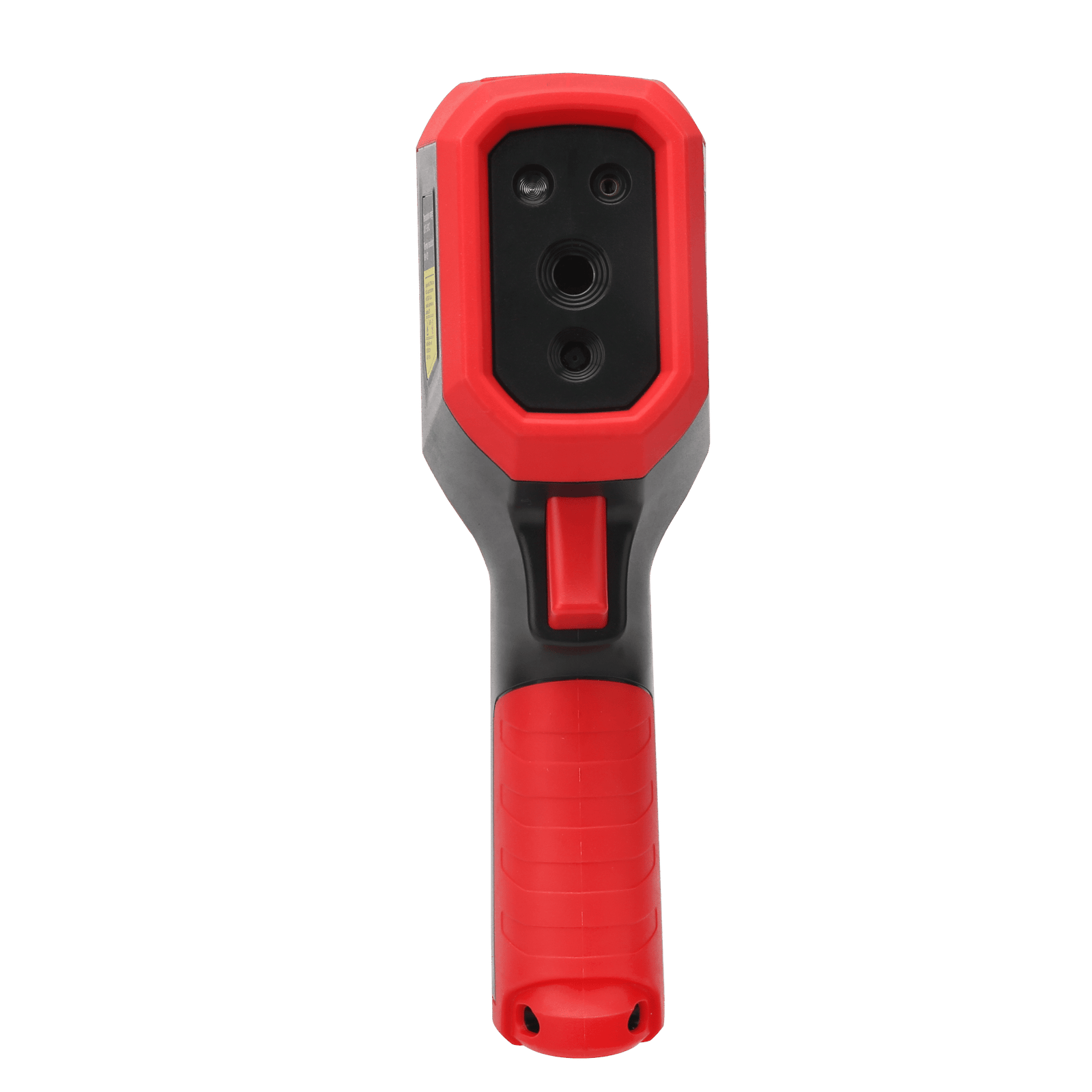

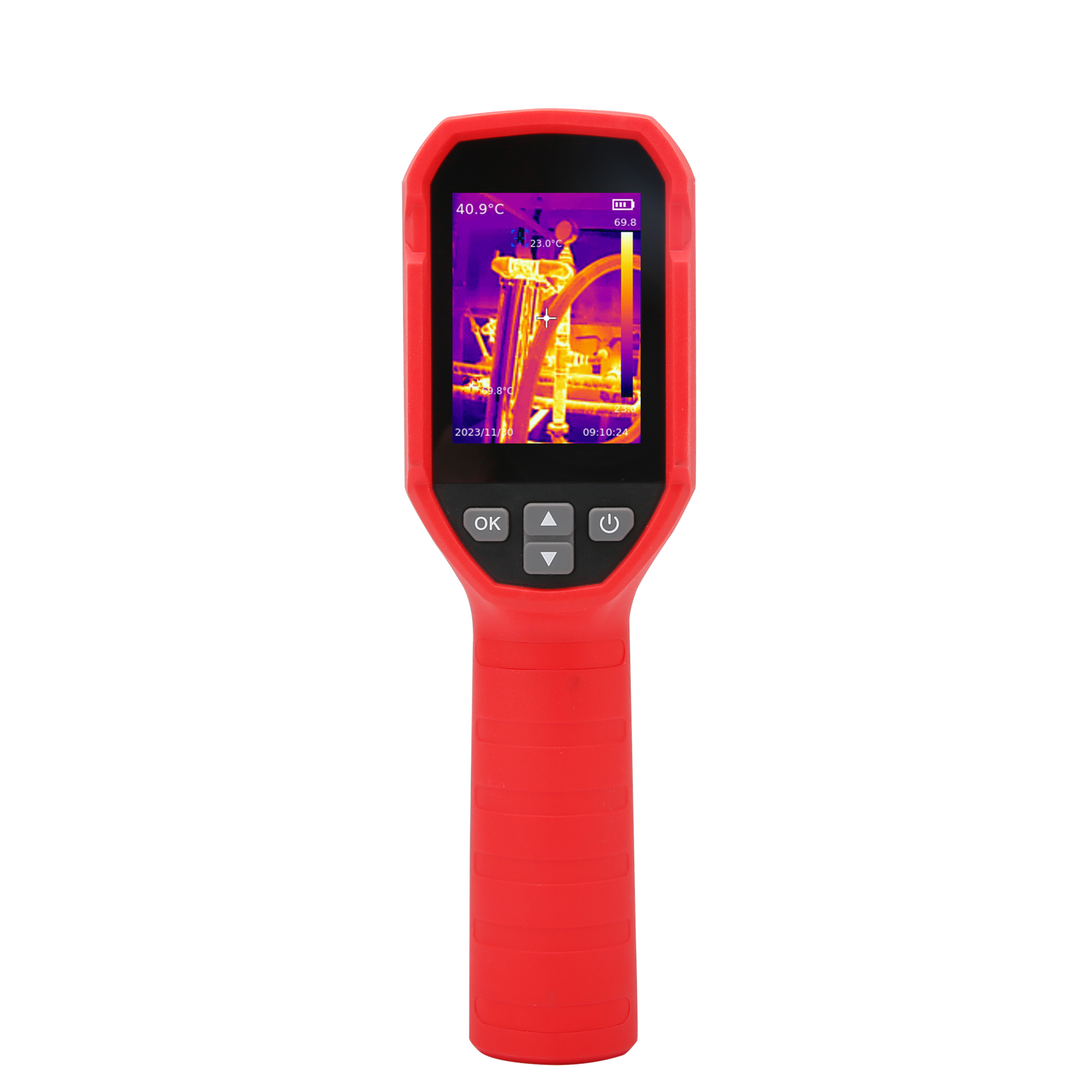

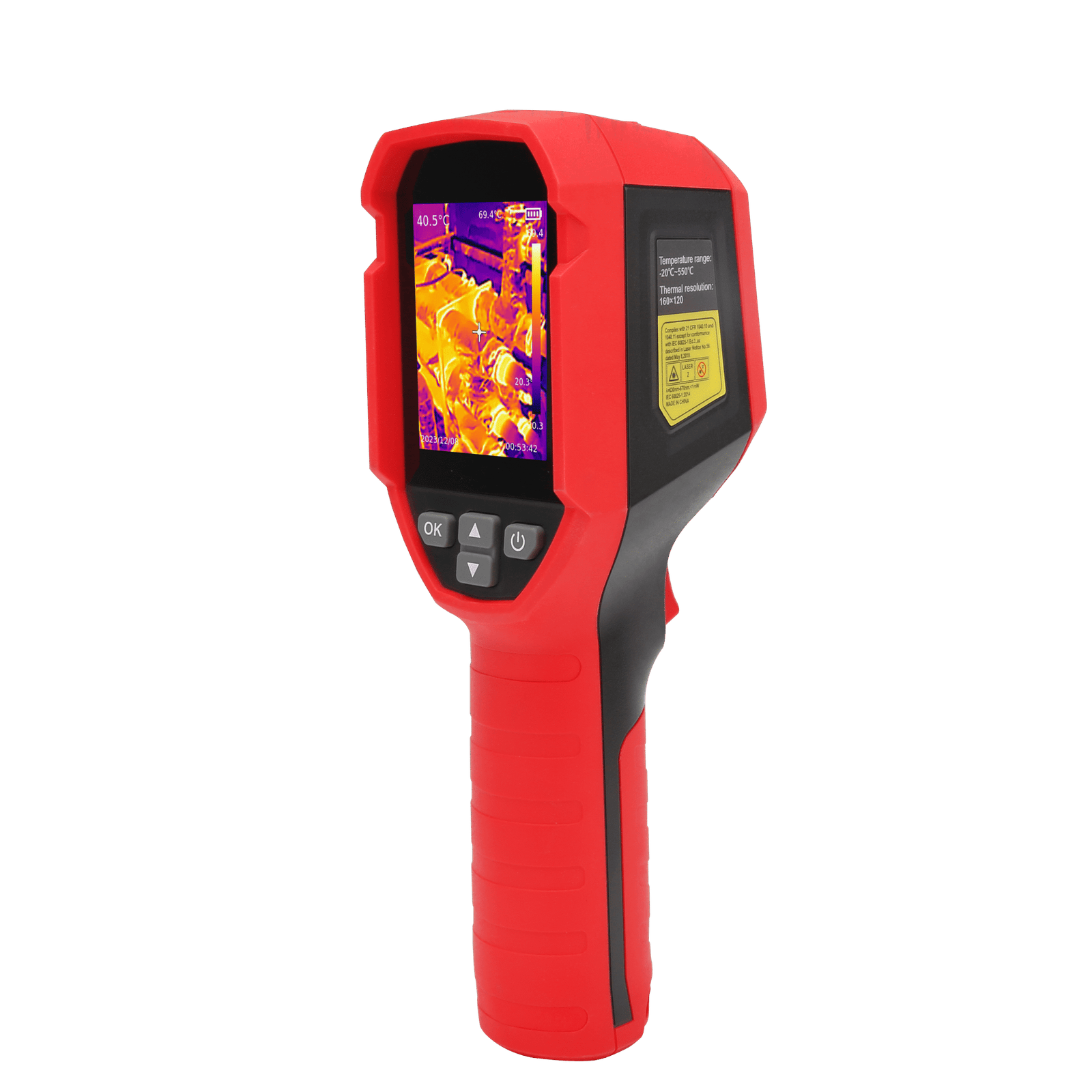

UNI-T UTI716S Cost-effective Thermal Camera

160×120 pixels / 12μm infrared detector
Temp. measurement range from -20℃ to 550℃
2MP digital camera
Self-developed T-Mix auto-adaptive dual-light image fusion algorithm technology
Super resolution is supported
Multi-languages OS
With LED light & Laser pointer
IP54 and wistand the drop of 2m height

Specifications Of UNI-T UTI716S Cost-effective Thermal Camera

Technical Data
Display	2.4” TFT (320×240)
IR resolution(Pixels)	160×120
Super resolution(Pixels)	√(320×240)
Spectral range	8~14µm
Pixel size	12µm
Frame rate	≤25Hz
Thermal sensitivity(NETD)	≤50mK
Focus	Focus Free
Field of view(FOV)	40°(H) × 30°(V)
Spatial resolution(IFOV)	4.62mrad
Temperature measurement range	-20℃~550℃
Accuracy	±2℃ or ±2% whichever is greater
Functions
Color palettes	White Hot, Black Hot, Red Hot, Ironbow, Lava, Rainbow, Rainbow HC
Image modes	Thermal, Visual image, Fusion (T-Mix), PIP
Hi/Lo temperature alarm	LCD animation, LED flashlight, Buzzer
Hi/Lo temperature tracking	√
Digital camera resolution	2MP
Laser pointer / LRF	√ / —
LED lighting	√
Analysis software	PC
General Characteristics
Battery	2600mAh rechargeable Li-ion battery
Operating time	≥6 hours
USB	Type-C
Storage	32GB Internal
Image storage format	JPG
Protection	IP54 & 2m drop proof
Certificates	CE, FCC, RoHS
Languages	EN, FR, DE, ES, IT, SV, PL, CZ
Weight	600g
Dimension	197mm×72mm×60mm

Product Catalog
- MODEL UNI-T UTI716S Product Catalog (English)
Instruction Manual
- MODEL UNI-T UTI716S Instruction Manual (Multi languages)
