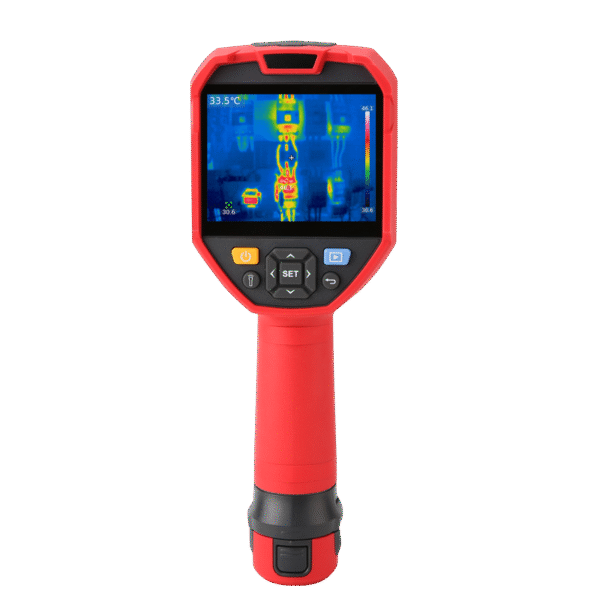

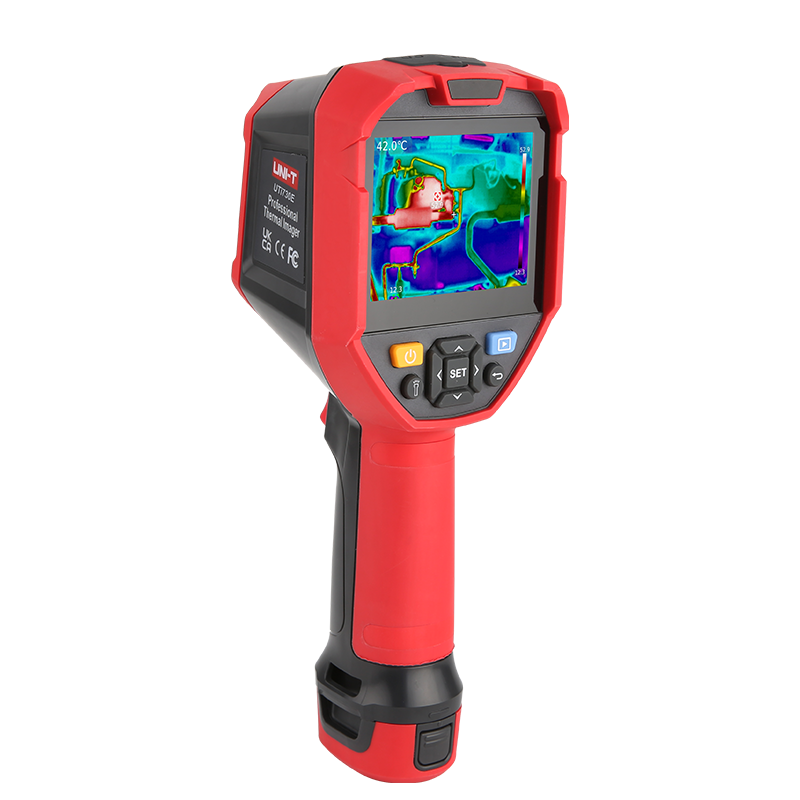

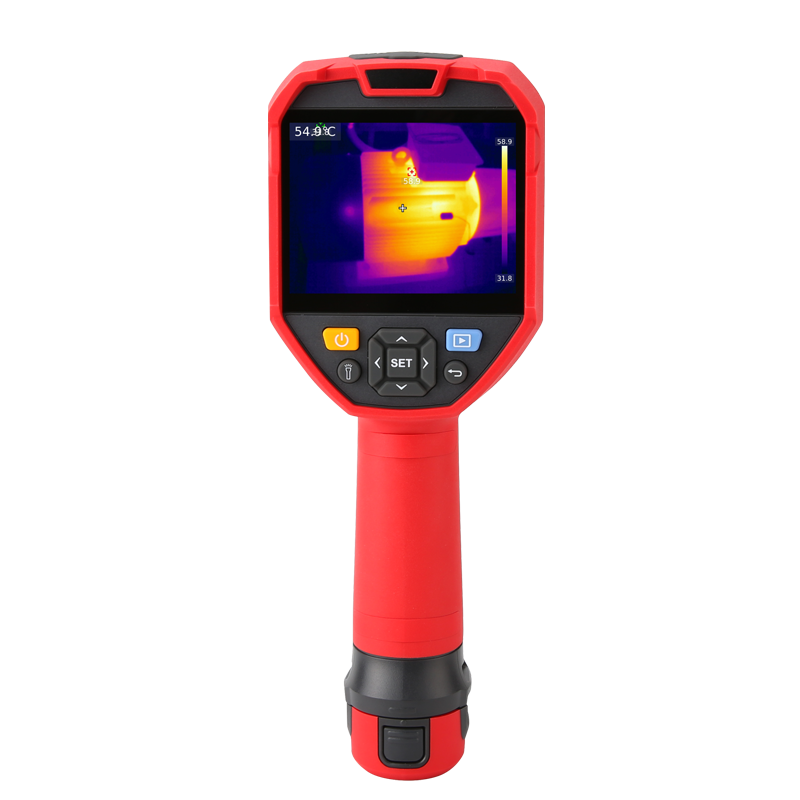

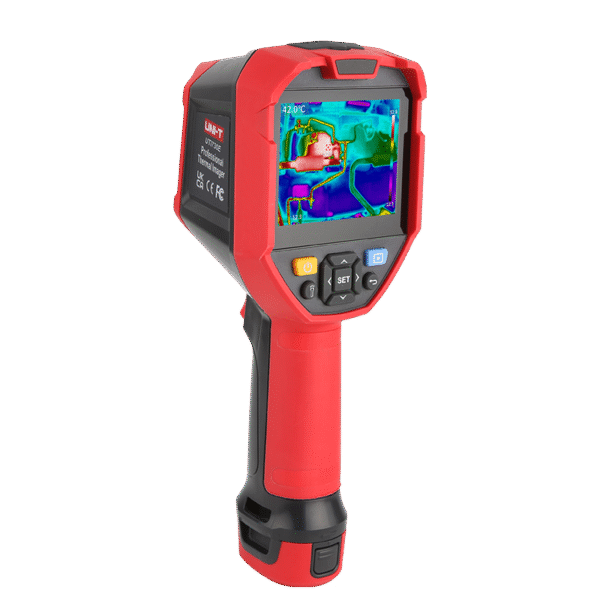

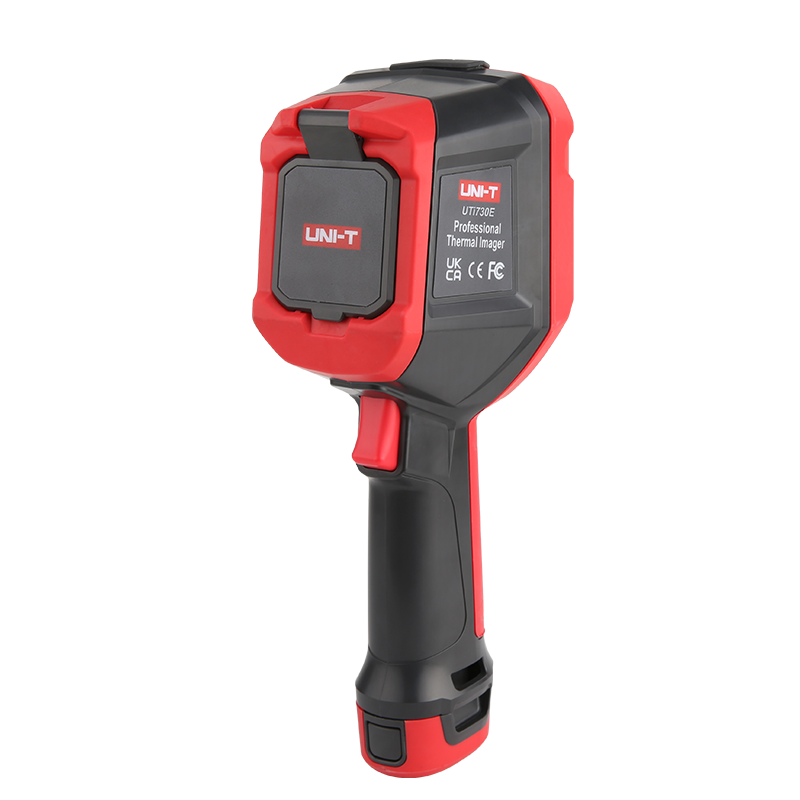

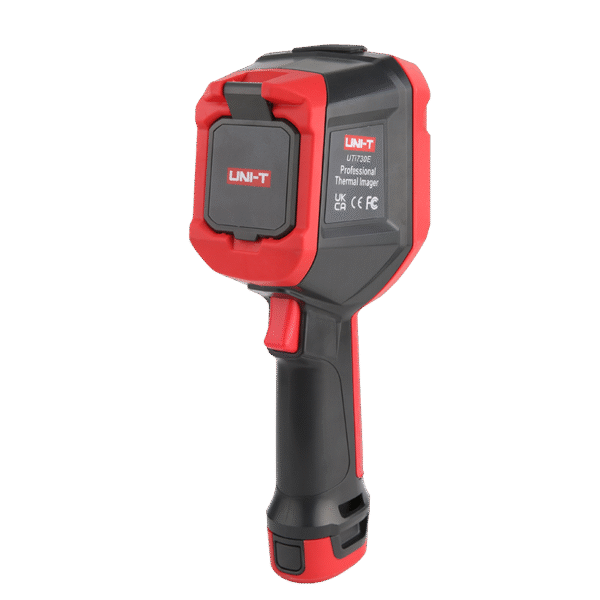

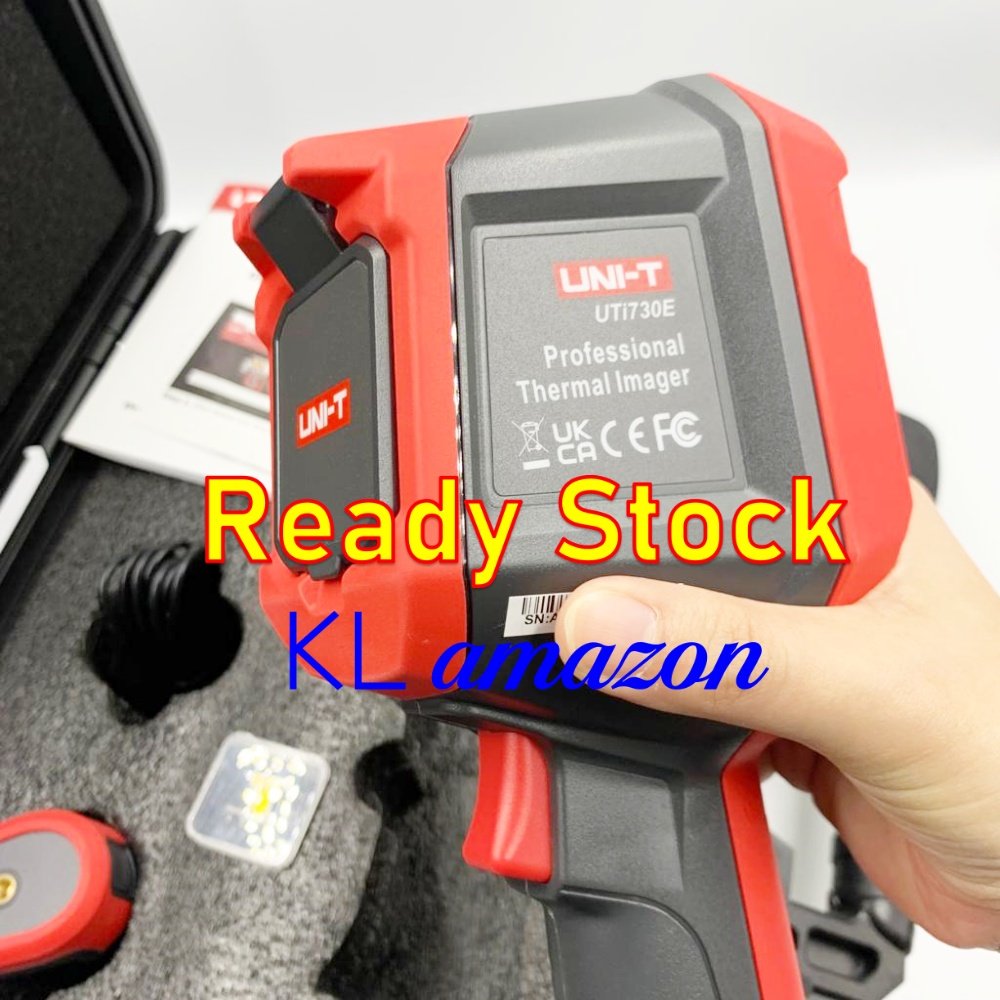

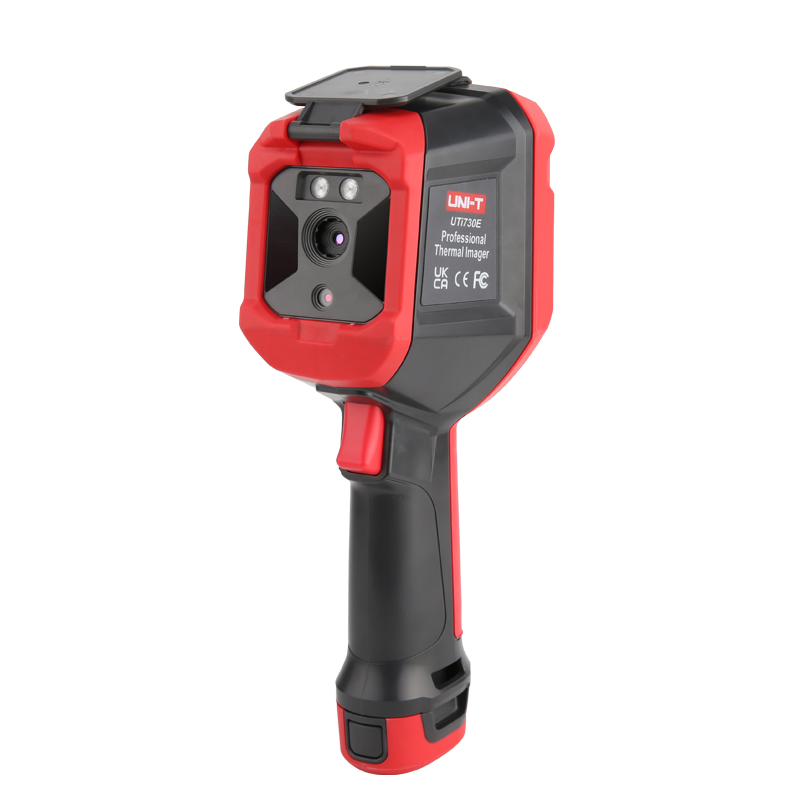

UNI-T UTI730E ENHANCED THERMAL CAMERA

Overview of UNI-T UTI730E Enhanced Thermal Camera

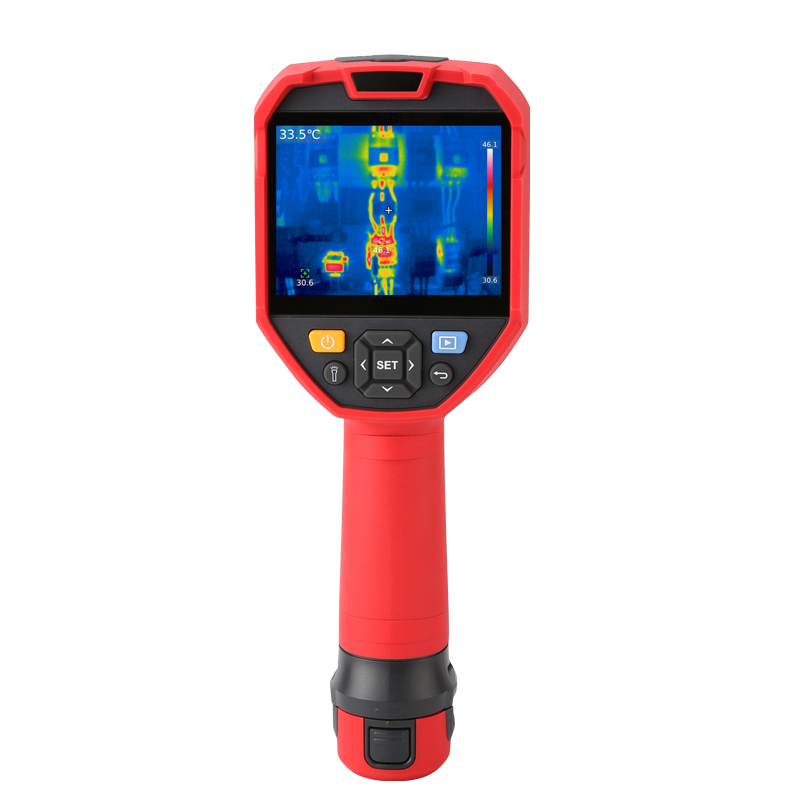

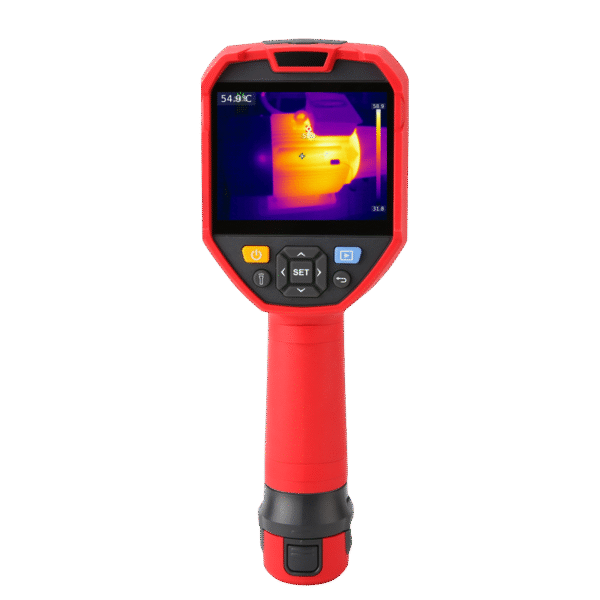

  • 3.5-inch IPS display screen with 640×480 pixels
  • IR resolution: 320×240
  • Temperature measurement range: -20℃ to 550℃ / -4℉ to 1022℉
  • Auto alarm for high and low temperature
  • Auto tracking for hot spot and cold spot
  • On-screen analysis: 5 points, 1 line, 3 rectangles, 3 circles
  • Image capture capability
  • Digital camera resolution: 2MP
  • Digital zoom: 2x and 4x
  • Image modes: Thermal, Visual, Fusion, PIP
  • Color palettes: 7 (White Hot, Black Hot, Red Hot, Ironbow, HC Rainbow, Rainbow, Lava)
  • Isotherm functions: Auto, Ratio, Below, Above, Section, Manual

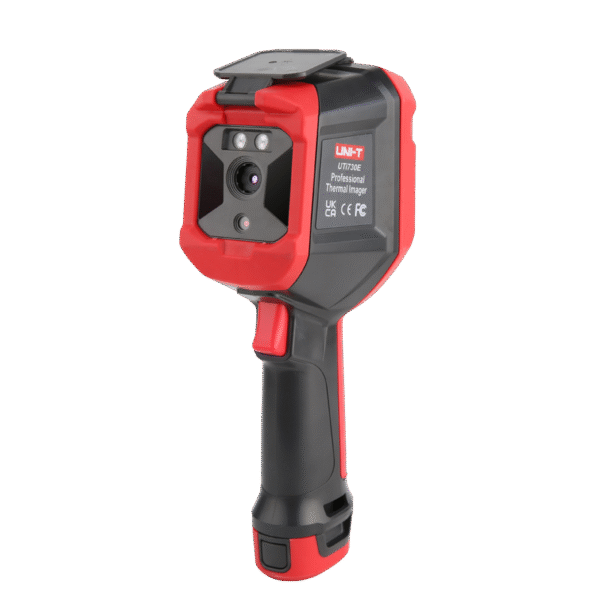

  • LED flashlight
  • Wi-Fi connectivity via mobile app
  • QR code photo management
  • PC software for analysis and real-time image projection
  • 5200mAh replaceable Type-C rechargeable battery
  • 1/4-inch tripod mounting hole
  • IP54 rated protection
  • Drop-proof up to 2 meters



Specifications of UNI-T UTI730E Enhanced Thermal Camera

Technical Data
Display 3.5″ IPS (640×480)
IR resolution(Pixels) 320×240
Spectral range 8~14µm
Pixel size 12µm
Frame rate ≤25Hz
Thermal sensitivity(NETD) ≤65mK
Focus Focus Free
Field of view(FOV) 56°(H) × 42°(V)
Temperature measurement range  -20℃~550℃
Accuracy ±2℃ or ±2% whichever is greater
Functions
Color palettes White Hot, Black Hot, Red Hot, Ironbow, Rainbow HC, Rainbow, Lava
Image modes Thermal, Visual image, Fusion, PIP
On screen analyzer 5 Points/1 Line/3 Rectangles/3 Circles
Isotherm Auto/Ratio/Below/Above/Section/Manual
Hi/Lo temperature alarm LCD animation & LED flashlight
Hi/Lo temperature tracking
Digital camera resolution 2MP
Digital zoom 2x, 4x
Wi-Fi
LED lighting
Analysis software PC+APP
General Characteristics
Battery 5200mAh detachable Li-ion battery pack (UT-M17)
Operating time  ≥3 hours (with Wi-Fi off)
USB Type-C
Storage 32GB Micro SD card
Image storage format JPG
Protection IP54 & 2m drop proof
Certificates CE, UKCA, FCC, RoHS
Languages EN, FR, DE, ES, RU
Weight 654g
Dimension 260mm×97mm×99mm
Packing Details
Standard accessories Type-C USB cable, Micro SD card, Li-ion battery pack, English Manual, Documents Download Operation Guide
Standard individual packing Toolbox & Gift box
Standard Qty per carton 1pcs
Standard carton size 400mm×185mm×345mm
Standard carton G.W. 3.7kg
