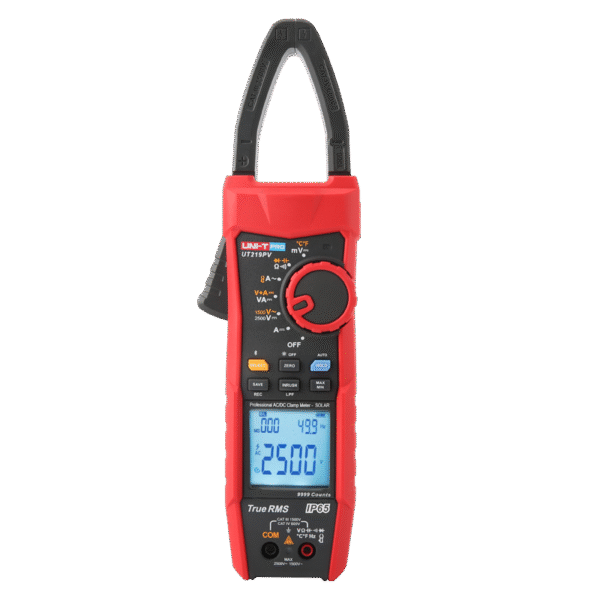

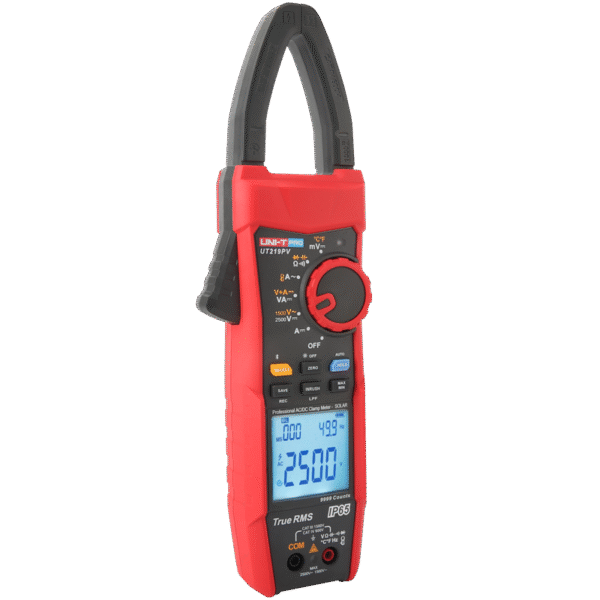

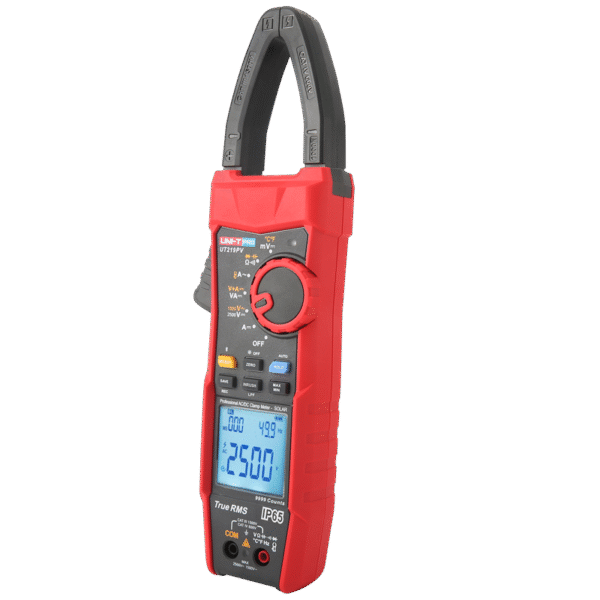

The UNI-TREND UT219PV is a high-performance professional AC/DC clamp meter designed for solar, electrical, and industrial applications. With its advanced features, high voltage capacity, and durable build, it ensures accurate measurements even in demanding environments.
-

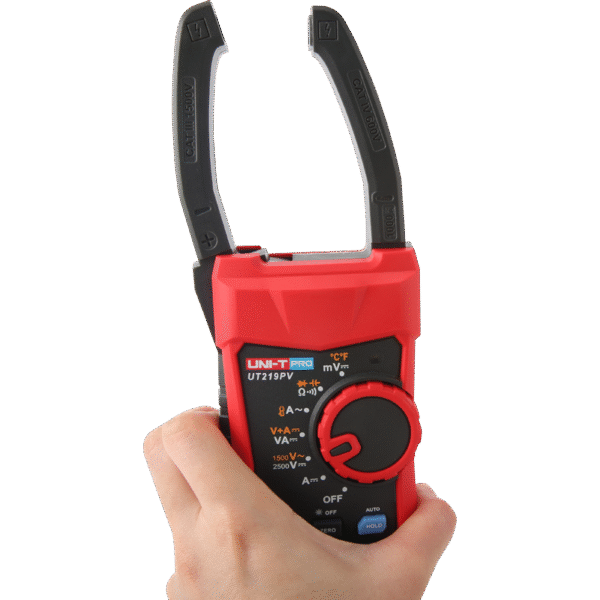

Features a 35mm ultra-thin jaw, making it ideal for accessing tight spaces such as inverter terminals or combiner boxes.
-
Provides voltage measurement up to AC 1500V and DC 2500V, enabling safe and precise testing in high-voltage solar and electrical systems.
-
Also supports current measurement up to AC/DC 1000A, which covers a wide range of professional testing needs.
-
In addition, delivers DC power measurement up to 2500 kVA, offering detailed performance analysis for large systems.
-
Equipped with an external clamp sensor UT-CS09D (AC 3000A), allowing for expanded measurement capability without direct contact.
-
Moreover, the solar panel polarity indication includes both audible and visual alarms when readings are below –10 DCV, ensuring quick detection of wiring issues.
-
Includes Bluetooth APP connectivity, so you can transfer, monitor, and store measurement data wirelessly.
-
The auto backlight enhances visibility in low-light environments, while the auto power-off function helps preserve battery life.
-
Certified with CE (EMC, LVD) and RoHS for compliance with international safety and quality standards.
-
Built with a CAT III 1500V / CAT IV 600V safety rating and IP65 protection, making it highly durable and safe for fieldwork.
