| Specifications |
Range |
UT516B |
| Insulation Resistance Measurement |
500V |
0.50MΩ~4.99G |
±(5%+5) |
| 5.00G-49.9GΩ |
±(10%+10) |
| 50.0GΩ-500GΩ |
for reference only |
| 1000V |
1.00MΩ-9.99GΩ |
±(5%+5) |
| 10.0G-99.9GΩ |
±(15%+10) |
| 100GΩ-1000GΩ |
for reference only |
| 2500V |
2.50MΩ-24.9GΩ |
±(5%+5) |
| 25.0G-249GΩ |
±(15%+10) |
| 250GΩ-2.5TΩ |
for reference only |
| 5000V |
5.00MΩ-49.9GΩ |
±(5%+5) |
| 50G-499GΩ |
±(15%+20) |
| 500GΩ-5.0TΩ |
for reference only |
| 10000V |
10.0MΩ-99.9GΩ |
±(10%+10) |
| 100G-999GΩ |
±(20%+20) |
| 1000GΩ-10TΩ |
for reference only |
| 12000V |
12.0MΩ-99.9GΩ |
±(10%+10) |
| 100G-999GΩ |
±(20%+20) |
| 1000GΩ-10TΩ |
for reference only |
| Output voltage |
500V |
0~+10% |
| 1000V |
0~+10% |
| 2500V |
0~+10% |
| 5000V |
0~+10% |
| 10000V |
-5~+10% |
| 12000V |
-5~+10% |
| Load current |
500V (R=500KΩ) 1mA |
0%—+20% |
| 1000V (R=1MΩ) 1mA |
0%—+20% |
| 2500V (R=2.5MΩ) 1mA |
0%—+20% |
| 5000V (R=5MΩ) 1mA |
0%—+20% |
| 10000V (R=10MΩ) 0.15~1.2mA |
0%—+20% |
| 12000V (R=12MΩ) 0.15~1.2mA |
0%—+20% |
| DC voltage measurement |
30V~1000V |
±(3%+5) |
| AC voltage measurement |
30V~750V (50~60Hz) |
±(3%+5) |
| Features |
| PC software for data analysis |
|
√ |
| Backlight Function |
|
√ |
| Date storage |
999 sets of date |
√ |
| Dielectric Absorption Ratio (DAR) |
0.00~999 |
√ |
| Polarization Index (PI) |
0.00~999 |
√ |
| General Characteristics |
| Power |
1.5V alkaline batteries (LR14) X 10, power adapter |
| Product color |
Red and grey |
| Product net weight |
6.6kg |
| Product size |
410*342*204mm |

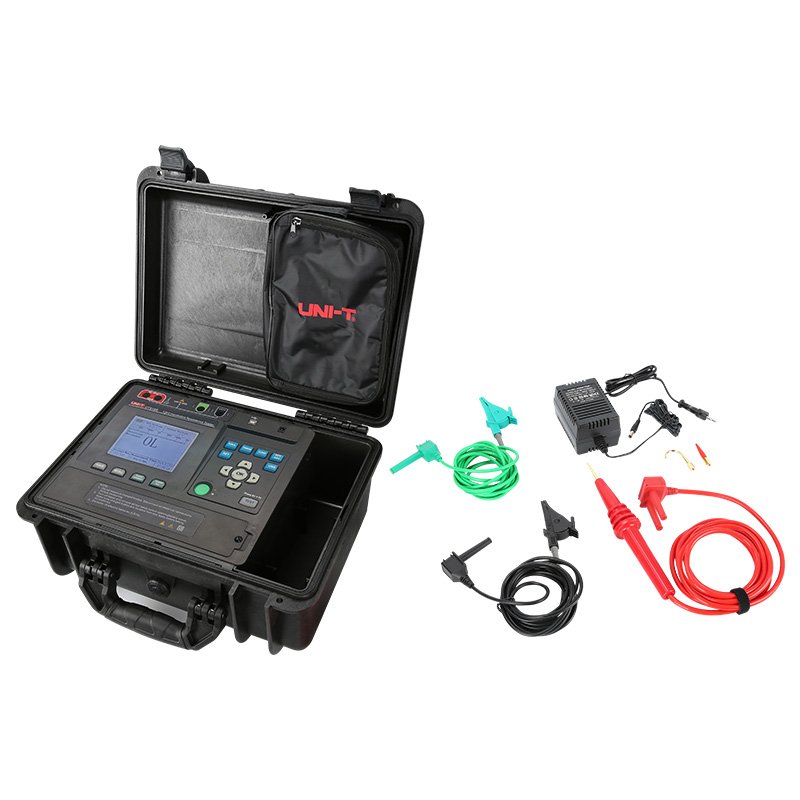

| Standard accessories |
User manual, Test leads (red/black/green 1 each), USB cable, power adaptor, 1.5V alkaline batteries, |
| Standard individual packing |
Gift box, tool box |
| Standard quantity per carton |
1pc |
| Standard carton measurement |
510*320*420mm |
| Standard carton gross weight |
10.2kg |
